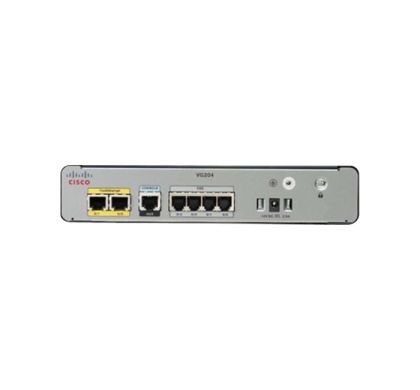

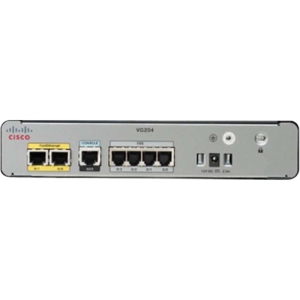

CISCO VG204XM VoIP Gateway

VG204XM

This product has been discontinued by the manufacturer

Please visit

CISCO VoIP Gateways

for alternative options.

Description

The Cisco VG350, VG224, VG204XM, and VG202XM are ideal for analog phone deployments ranging from centralized to sparsely concentrated or distributed topologies. These analog voice gateways provide a high level of availability at locations with MGCP fallback, with ease of manageability using Cisco IOS Software monitoring features. They offer many supplementary analog calling features depending on the call control and signaling type used. Refer to Table 1 for the supplementary analog calling features available.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
VG200
Product Model:
VG204XM
Product Name:
VG204XM Analog Voice Gateway
Product Type:
VoIP Gateway

Interfaces/Ports

USB:
Yes
Management Port:
Yes
Number of Network (RJ-45) Ports:
2
Number of FXS (RJ-11) Ports:
4

Network & Communication

Ethernet Technology:
  • Fast Ethernet
Network Standard:
10/100Base-TX

Wireless Specifications

Wi-Fi:
No

Management & Protocols

Voice Codec:
  • T.38
  • G.729a
  • G.711

Memory

Standard Memory:
  • 256 MB
Memory Card Supported:
  • CompactFlash (CF) Card

Power Description

Power Source:
  • Power Supply

Physical Characteristics

Form Factor:
  • Wall Mountable
  • Desktop
Height:
45.2 mm
Width:
223.8 mm
Depth:
206.5 mm
Weight (Approximate):
1.35 kg
