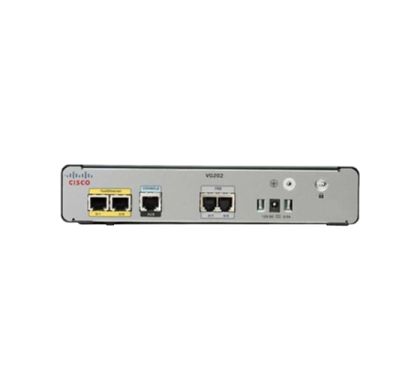

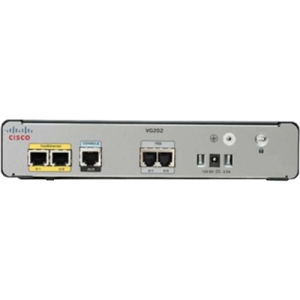

CISCO VG202XM VoIP Gateway

CISCO VG202XM VoIP Gateway
VG202XM
Please Call
Please contact us for pricing

Description

The Cisco VG350, VG224, VG204XM, and VG202XM are part Cisco IOS® software-based VG series stand-alone analog voice gateways. The Cisco VG350 is a high-density 160-port gateway, the Cisco VG224 is a 24-port gateway, and the Cisco VG204XM and VG202XM are low-density 4- and 2-port gateways, respectively. These gateways connect analog phones, fax machines, modems, and speakerphones to an enterprise voice system based on Cisco Unified Communications Manager (Unified CM). Having these devices tightly integrated with the IP-based phone system is advantageous for increased manageability, scalability, and cost-effectiveness (refer to Figure 5 later in this document). Commercial businesses can also use these gateways with Cisco Unified Communications Manager Express to effectively augment an integrated-services-router (ISR) environment. Both topology environments support business needs ranging from high to low concentrations of analog voice ports for modem calls, fax calls, and analog supplementary services.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
VG200
Product Model:
VG202XM
Product Name:
VG202XM Analog Phone Gateway
Product Type:
VoIP Gateway

Interfaces/Ports

PoE Port:
No
USB:
Yes
Management Port:
Yes
Number of Network (RJ-45) Ports:
2
Number of FXS (RJ-11) Ports:
2

Network & Communication

Ethernet Technology:
  • Fast Ethernet
Network Standard:
10/100Base-TX

Wireless Specifications

Wi-Fi:
No

Management & Protocols

Voice Codec:
  • G.729a
  • G.711

Memory

Standard Memory:
  • 256 MB

Power Description

Input Voltage:
  • 12 V DC
Power Source:
  • AC Adapter

Physical Characteristics

Form Factor:
  • Wall Mountable
  • Desktop
Height:
45.2 mm
Width:
223.8 mm
Depth:
206.5 mm
Weight (Approximate):
1.35 kg

Miscellaneous

Certifications & Standards:
Safety:
  • UL 60950
  • CAN/CSA C22.2 No. 60950
  • IEC 60950
  • EN 60950-1
  • AS/NZS 60950
Immunity:
  • EN300386
  • EN55024/CISPR24
  • EN50082-1
  • EN61000-6-1
EMC:
  • FCC Part 15 Class B
  • ICES-003 Class B
  • EN55022 Class B
  • CISPR22 Class B
  • VCCI Class B
  • EN 300386 Class B
  • EN61000-3-3
  • EN61000-3-2
Telecom:
  • FCC Part 68
  • CS-03
  • European Directive 99/5/EC

Warranty

Standard Warranty:
90 Day
