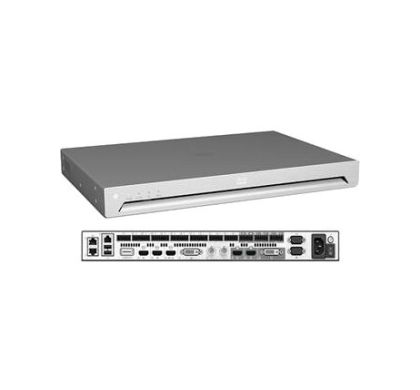

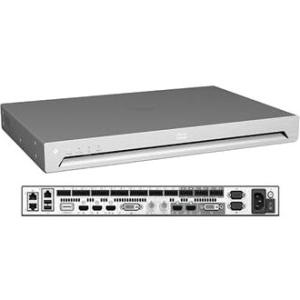

CISCO TelePresence SX80 Video Conference Equipment

CISCO TelePresence SX80 Video Conference Equipment
CTS-SX80-K9
Please Call
Please contact us for pricing

Description

The Cisco TelePresence SX80 Codec (SX80 Codec) provides a powerful and flexible platform for creating the ultimate video collaboration experience. The SX80 Codec was built with the integrator in mind, enabling flexibility and creativity for customized video collaboration rooms that delight the customer. The SX80 acts as the audio and video engine to incorporate high-definition video collaboration applications into large meeting rooms, boardrooms and purpose-built or vertical application rooms.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
TelePresence
Product Series:
SX
Product Model:
SX80
Product Name:
TelePresence SX80 Codec
Product Type:
Video Conference Equipment

Technical Information

ITU-T Recommendation:
  • H.235v3
  • H.245
  • H.350
  • H.323
  • H.460
  • SIP
Video Bridging:
Point-to-Point

Video

Graphics Modes (Live):
Full HD
Video System:
  • NTSC/PAL
Maximum Video Resolution (Live):
1920 x 1080
Maximum Frame Rate:
60 fps
Video Encoding:
  • H.263
  • H.261
  • H.263+
  • H.264
  • H.239

Audio

Audio Encoding:
  • G.722.1
  • G.722
  • G.711

Network & Communication

Carrier Supported:
  • ISDN
Network Technology:
  • 10/100/1000Base-T
Ethernet Technology:
  • Gigabit Ethernet

Wireless Specifications

Wi-Fi:
Yes

Interfaces/Ports

Composite Video In:
Yes
DVI In:
Yes
DVI Out:
Yes
HDMI In:
Yes
HDMI Out:
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Network (RJ-45):
Yes
USB:
Yes
Serial Port:
Yes
Number of Network (RJ-45) Ports:
3
Number of Composite Video Inputs:
2
Number of DVI In:
1
Number of DVI Out:
1
Number of HDMI Inputs:
3
Number of HDMI Outputs:
2
Number of Audio Line In:
4
Number of Audio Line Out:
6

Physical Characteristics

Form Factor:
Rack-mountable
Height:
43.2 mm
Width:
442 mm
Depth:
309.9 mm
Weight (Approximate):
3.65 kg
