CISCO TelePresence SX10 Video Conference Equipment

CS-SX10N-MSRP-K9

This product has been discontinued by the manufacturer

Please visit

CISCO Video & Web Conference Equipment

for alternative options.

Description

Video-Enable Your Small Collaboration Spaces

The Cisco TelePresence® SX10 Quick Set is an all-in-one unit designed to video-enable your small collaboration spaces, offering great affordability for small-to-medium businesses just starting out with telepresence. With the SX10, you can also extend telepresence pervasively throughout your enterprise. The SX10 supports cloud registration to Cisco Spark Services for even faster and more cost effective deployment.

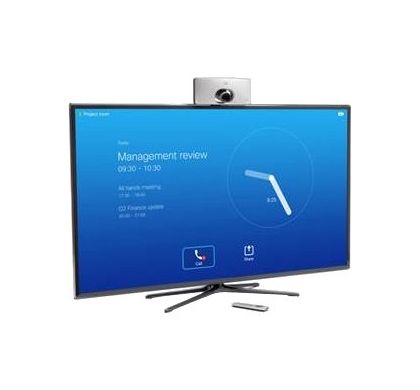

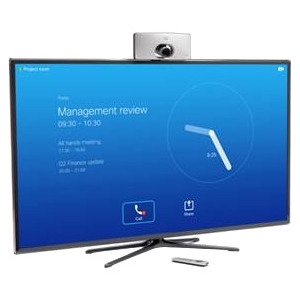

This low-cost, high-quality unit combines camera and codec into a single, compact device that is mounted over your standard flat-panel display and connects through a discreet single-cable system for Power over Ethernet (PoE). High-definition video is enabled with 1080p30 resolution, while an industry-leadership wide-angle field of view provides the best overview even in small spaces. Support for Cisco Intelligent Proximity allows you to use your iOS and Android devices to wirelessly control the SX10 as well as receive shared content for richer collaboration. Wireless content sharing is also possible from your laptop or PC.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
TelePresence
Product Series:
SX
Product Model:
SX10
Product Name:
TelePresence SX10 Quick Set
Product Type:
Video Conference Equipment

Technical Information

ITU-T Recommendation:
  • SIP
  • H.323
Video Bridging:
Point-to-Point

Video

Graphics Modes (Live):
Full HD
Maximum Video Resolution (Live):
1920 x 1080
Maximum Frame Rate:
60 fps
Video Encoding:
  • H.263
  • H.263+
  • H.264

Audio

Microphone Form Factor:
Internal
Audio Encoding:
  • G.711a
  • G.722
  • G.722.1
  • G.729ab
  • G.729

Network & Communication

Network Technology:
  • 10/100Base-TX
Ethernet Technology:
  • Fast Ethernet

Interfaces/Ports

VGA In:
Yes
HDMI In:
Yes
HDMI Out:
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Network (RJ-45):
Yes
USB:
Yes
Number of Network (RJ-45) Ports:
1
Number of HDMI Inputs:
1
Number of HDMI Outputs:
1
Number of Audio Line In:
1
Number of Audio Line Out:
1

Physical Characteristics

Form Factor:
Wall Mountable
Height:
116.8 mm
Width:
274.3 mm
Depth:
91.4 mm
Weight (Approximate):
907.2 g
