STARTECH .com DAS Array - 2 x HDD Supported
Description

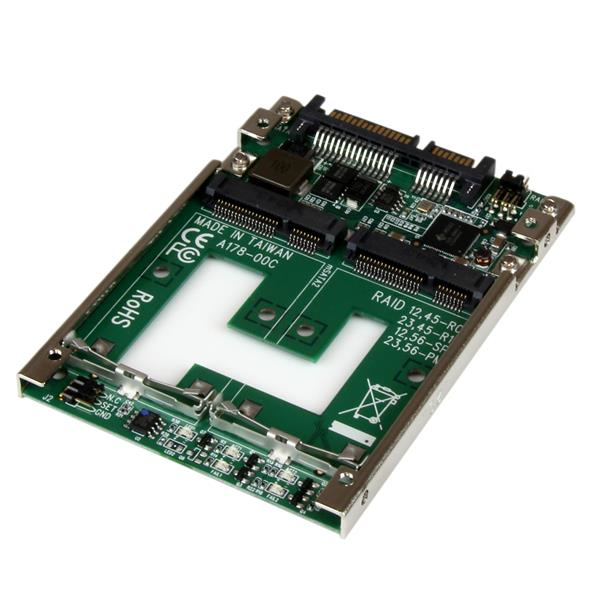

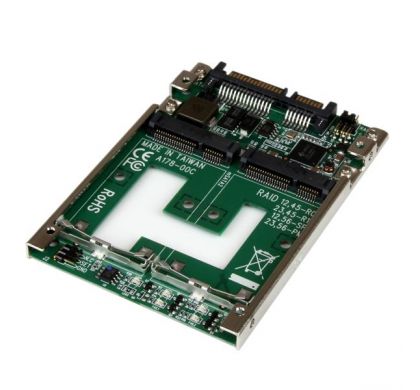

Build a RAID array with two mSATA SSDs that can be installed into a single 2.5in SATA bay. Vastly increase system performance by adding a dual mSATA SSD RAID array into any 2.5" SATA HDD application with the 25SAT22MSAT mSATA to SATA adapter.
Utilize the full potential of your SATA III controller, with mSATA SSDs reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps. mSATA SSDs also save you money by reducing your power consumption over regular platter drives.
You can achieve greater SSD capacity, or data redundancy with the Dual SSD controller supporting multiple RAID modes (RAID 0, 1, BIG). The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.
Help protect the health of your drive with an open-frame design ensuring maximum heat dissipation.
The 25SAT22MSAT is backed by a StarTech.com 2-year warranty, and lifetime technical support.
Utilize the full potential of your SATA III controller, with mSATA SSDs reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps. mSATA SSDs also save you money by reducing your power consumption over regular platter drives.
You can achieve greater SSD capacity, or data redundancy with the Dual SSD controller supporting multiple RAID modes (RAID 0, 1, BIG). The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.
Help protect the health of your drive with an open-frame design ensuring maximum heat dissipation.
The 25SAT22MSAT is backed by a StarTech.com 2-year warranty, and lifetime technical support.
Specifications
General Information
Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Name:
Dual mSATA SSD to 2.5" SATA RAID Adapter Converter
Packaged Quantity:
1
Product Type:
DAS Array
Storage
Number of Hard Drives Supported:
2
Number of Hard Drives Installed:
No
Controllers
Controller Type:
- Serial ATA/600
RAID Levels:
- 0, 1, Concatenation, JBOD
Interfaces/Ports
Host Interface:
- SATA/600
Number of mSATA Interfaces:
2
Physical Characteristics
Form Factor:
Internal
Height:
7 mm
Width:
70 mm
Depth:
100 mm
Weight (Approximate):
40 g
Miscellaneous
Certifications & Standards:
- FCC
- CE
Platform Supported:
- Mac
- PC
Green Compliant:
Yes
Country of Origin:
- Taiwan
