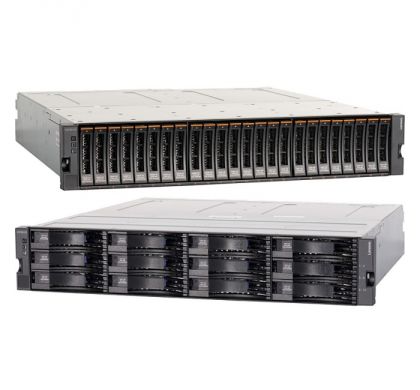

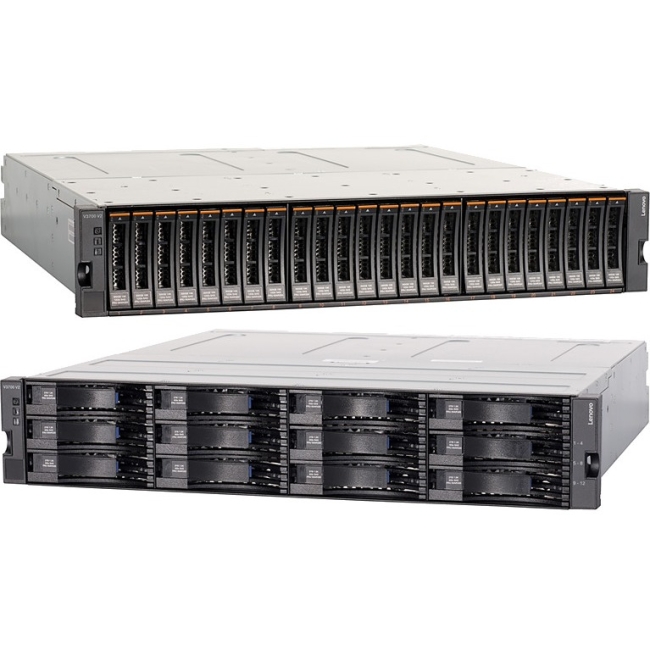

LENOVO V3700 V2 SAN Array - 24 x HDD Supported - 24 x SSD Supported

Please Call
Please contact us for pricing



Lenovo Storage V3700 V2 and V3700 V2 XP (Machine Type 6535) are members of the Lenovo Storage V Series family of disk systems. By using Spectrum Virtualize software functions, interoperability, and management tools, Lenovo Storage V3700 V2 and V3700 V2 XP deliver innovation and new levels of storage efficiency with ease of use in an entry-level disk system to enable organizations to overcome their storage challenges.

Lenovo Storage V3700 V2 and V3700 V2 XP storage systems feature two node canisters, with 8 GB cache per canister, upgradeable to 16 GB per canister (V3700 XP only), in a compact, 2U, 19-inch rack mount enclosure. 12 Gb SAS (V3700 V2 XP only) and 1 Gb iSCSI connectivity is standard, with an option for additional 1 Gb iSCSI, 12 Gb SAS, 16 Gb Fibre Channel (FC), or 10 Gb iSCSI or Fibre Channel over Ethernet (FCoE) connectivity.

Lenovo Storage V3700 V2 and V3700 V2 XP support up to 240 drives with up to nine expansion enclosures. They also offer flexible drive configurations with the choice of 2.5-in. and 3.5-in. form factors, 10 K or 15 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).

Did you know?

Lenovo Storage V3700 V2 and V3700 V2 XP provide small and midsized organizations with the ability to consolidate and share data at an affordable price, while utilizing advanced software capabilities that often are found in more expensive systems.

Lenovo Storage V3700 V2 and V3700 V2 XP can be scaled up to 960 TB of raw storage capacity.

Lenovo Storage V3700 V2 offers hybrid block storage connectivity with support for 1 Gb iSCSI and 12 Gb SAS, 10 Gb iSCSI or FCoE, or 16 Gb FC host connectivity at the same time. With Lenovo Storage V3700 V2 XP, 12 Gb SAS, 1 Gb iSCSI, and 10 Gb iSCSI or FCoE or 16 Gb FC can be used simultaneously.


General Information

Lenovo Group Limited
Manufacturer Website Address:
Brand Name:
Product Model:
V3700 V2
Product Name:
V3700 V2 SFF Control Enclosure
Packaged Quantity:
Product Type:
SAN Array


Number of Hard Drives Supported:
Number of Solid State Drive Supported:


Controller Type:
  • 12Gb/s SAS
Number of Controllers:
RAID Levels:
  • 0, 1, 5, 6, 10

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays:
Number of 2.5" Bays:


SAN Interface:
  • iSCSI
Number of SAS Ports (External):

Physical Characteristics

Form Factor:
Rack Height:
87 mm
483 mm
556 mm
