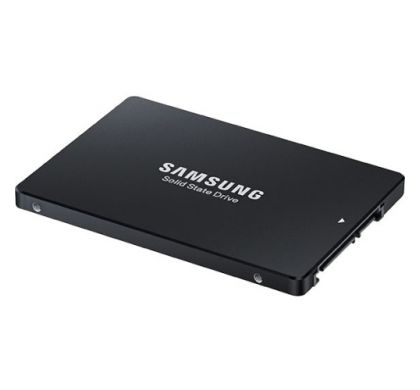

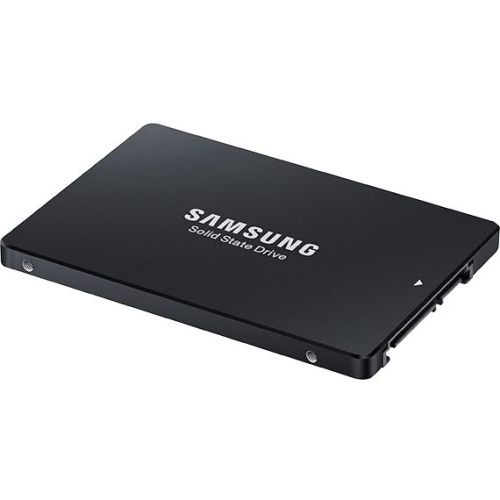

LENOVO PM1635a 400 GB 2.5" Internal Solid State Drive

01GV761
Please Call
Please contact us for pricing

Description

Abstract

The Lenovo PM1635a Enterprise Mainstream 12Gb SAS solid-state drives (SSDs) in capacities of 400 GB, 800 GB and 1.6 TB capacity are next-generation high-performance SSDs suitable for a wide range of applications running on both System x and ThinkServer platforms.

This product guide provides essential presales information to understand the PM1635a Enterprise Mainstream 12Gb SAS SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.

Introduction

The Lenovo PM1635a Enterprise Mainstream 12Gb SAS solid-state drives (SSDs) in capacities of 400 GB, 800 GB and 1.6 TB capacity are next-generation high-performance SSDs suitable for a wide range of applications of running on both System x and ThinkServer platforms.

Did you know?

Unlike SATA drives, the 12 Gb/s SAS interface on these drives supports full duplex data transfer for higher performance, as well as dual port connectivity and enterprise-level error recovery for better availability. By combining the enhanced reliability of Samsung NAND flash memory silicon with NAND Flash management technologies, PM1635a SSDs deliver the extended endurance of up to 3 drive writes per day (DWPD) for 5 years, which is suitable for many enterprise applications.

Specifications

General Information

Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Model:
PM1635a
Product Name:
PM1635a 400GB Enterprise Mainstream 12Gb SAS G3HS 2.5" SSD
Product Type:
Solid State Drive

Technical Information

Storage Capacity:
400 GB

Drive Performance

Maximum Read Transfer Rate:
940 MB/s
Maximum Write Transfer Rate:
620 MB/s

Network & Communication

Wi-Fi:
No

Interfaces/Ports

Drive Interface:
SAS
Drive Interface Standard:
12Gb/s SAS

Physical Characteristics

Drive Type:
  • Internal
Drive Width:
2.5"
Hot Swappable:
Yes

Miscellaneous

Compatibility:
Lenovo System x Servers:
  • x3550 M5 (8869)
  • x3650 M5 (8871)
  • x3850 X6/x3950 X6 (6241, E7 v4)
  • nx360 M5 (5465, E5-2600 v4)
Device Supported:
Server

Warranty

Standard Warranty:
1 Year
