LENOVO 5100 5100 PRO 480 GB Internal Solid State Drive - SATA - M.2 2280

7SD7A05703
Please Call
Please contact us for pricing

Description

M.2 is a solid-state drive (SSD) form factor primarily used as an operating system boot solution. Lenovo ThinkSystem servers support M.2 drives with the addition of a supported M.2 adapter.

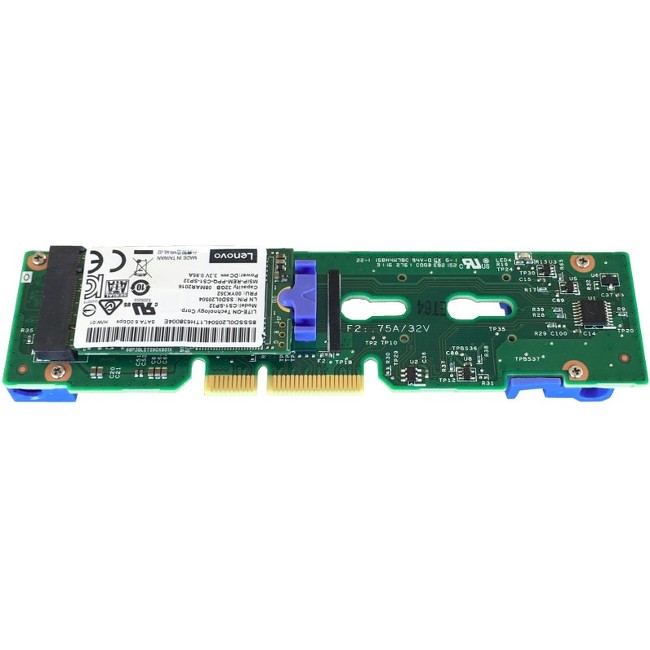

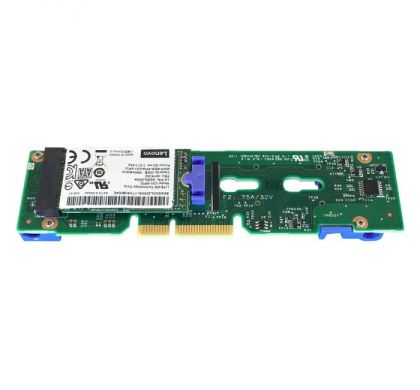

The M.2 drives install into an M.2 adapter which in turn is installed in a dedicated slot on the system board of the ThinkSystem server. With two M.2 drives configured, the drives are configured by default as a RAID-1 mirrored pair for redundancy.

There are two M.2 adapters supported:

  • Single M.2 Adapter, which supports one M.2 drive; available as the ThinkSystem M.2 Enablement Kit
  • Dual M.2 Adapter, which supports one or two M.2 drives; available as the ThinkSystem M.2 with Mirroring Enablement Kit

Specifications

General Information

Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Series:
5100
Product Model:
5100 PRO
Product Name:
ThinkSystem M.2 5100 480GB SATA 6Gbps Non-Hot-Swap SSD
Product Type:
Solid State Drive

Technical Information

Storage Capacity:
480 GB

Drive Performance

Maximum Read Transfer Rate:
540 MB/s
Maximum Write Transfer Rate:
410 MB/s

Network & Communication

Wi-Fi:
No

Interfaces/Ports

Drive Interface:
SATA
Drive Interface Standard:
SATA/600

Physical Characteristics

Drive Type:
  • Internal
Form Factor:
M.2 2280
Width:
22 mm
Depth:
80 mm
Weight (Approximate):
10 g

Miscellaneous

Compatibility:
Lenovo ThinkSystem Servers:
  • ST550 (7X09/7X10)
  • SR630 (7X01/7X02)
  • SR650 (7X05/7X06)
  • SR850 (7X18/7X19)
  • SN550 (7X16)
  • SN850 (7X15)
Device Supported:
Server
