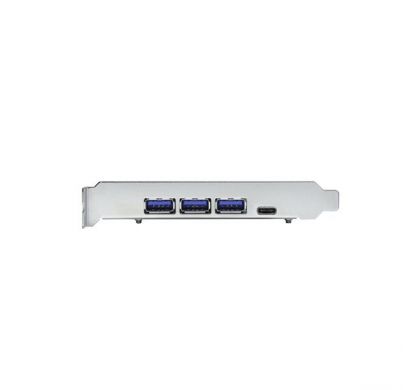

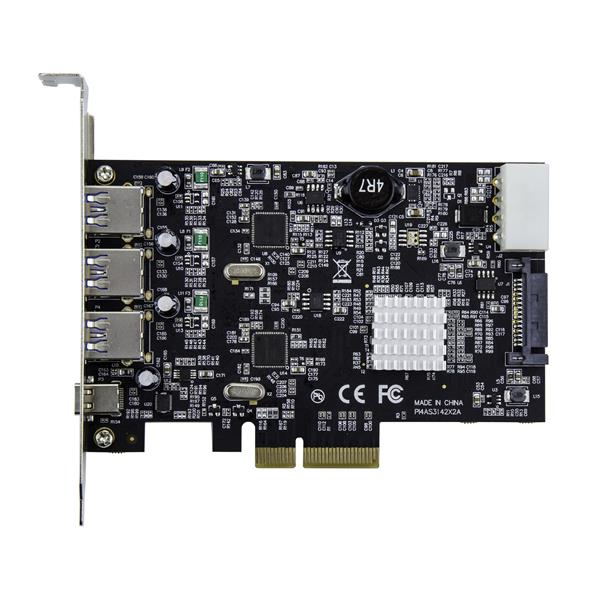

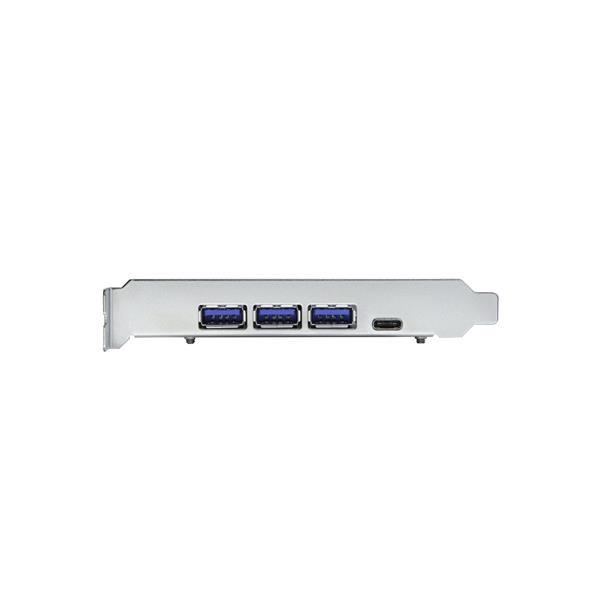

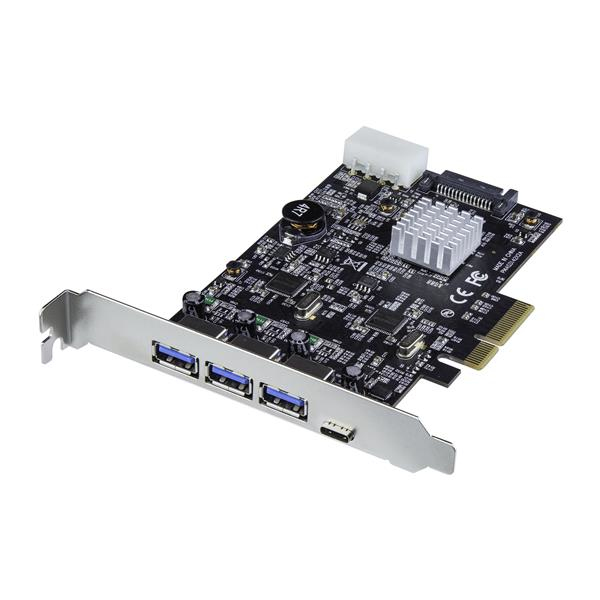

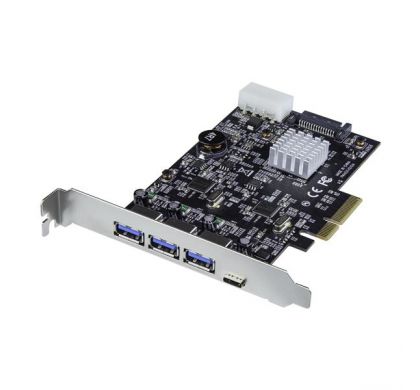

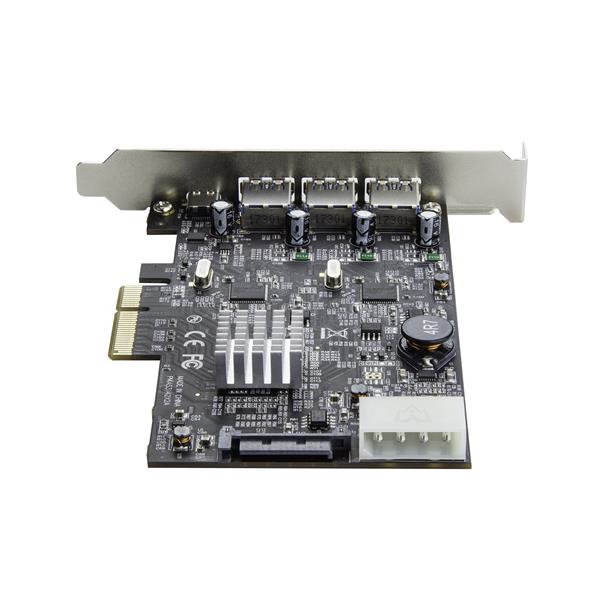

StarTech.com 4-Port USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels

PEXUS313AC2V

This product has been discontinued by the manufacturer

Please visit

STARTECH USB/Firewire Adapters

for alternative options.

Description

This USB 3.1 PCIe card lets you add three USB Type-A ports and one USB Type-C port to your computer, through a PCI Express slot. It makes it easy to upgrade your PC to the faster speed of USB 3.1 (10Gbps) so that you can access newer peripherals at twice the speed of traditional USB 3.0 (5Gbps) cards.

Faster USB performance

When multiple devices are connected, traditional single-bus USB cards share the maximum bandwidth between all ports. By employing two host controller chipsets, shared across two ports rather than four, this 4-port PCIe to USB 3.1 card dedicates up to 10Gbps for each set of two USB ports. It reduces performance bottlenecks and doubles your total available bandwidth to 20Gbps.

With higher data throughput support, the card is ideal for external hard drives, hard drive enclosures, and large external storage devices. It lets you access multiple devices simultaneously for read and write access.

Shared bandwidth

The 4-port USB 3.1 controller card adds dual independent channels to your computer and shares 10Gbps of bandwidth between two USB ports.

Each set of two ports shares a combined bandwidth of 10Gbps. If a single device is accessing the channel, the card will provide data transfer rates of up to 10Gbps to the device. If two devices are accessing the channel simultaneously, the 10Gbps of bandwidth will be shared between both devices.

The PEXUS313AC2V is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

General Information

Manufacturer:
StarTech.com
Manufacturer Part Number:
PEXUS313AC2V
Manufacturer Website Address:
http://www.startech.com
Brand Name:
StarTech.com
Product Name:
4-Port USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels
Packaged Quantity:
1
Product Type:
USB Adapter

Technical Information

Host Interface:
  • PCI Express x4

Interfaces/Ports

Total Number of USB Ports:
4
Number of USB 3.1 Ports:
4

Physical Characteristics

Form Factor:
Plug-in Card
Height:
0.70" (17.78 mm)
Width:
3.10" (78.74 mm)
Length:
5" (127 mm)
Weight (Approximate):
99.2 g

Miscellaneous

Package Contents:
  • 4-Port USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels
  • 1 x Controller Card
  • 1 x Instruction Manual
Platform Supported:
  • PC
  • Mac
  • Linux
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS
  • WEEE
Country of Origin:
  • China

Warranty

Standard Warranty:
2 Year
