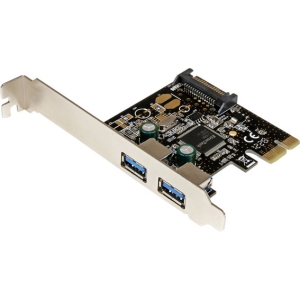

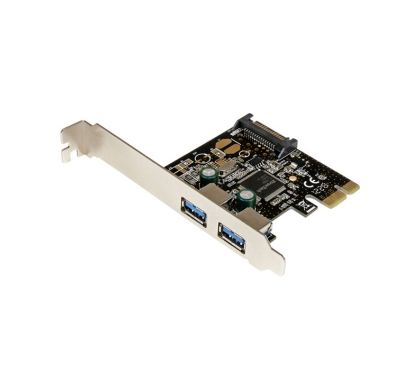

STARTECH USB Adapter - PCI Express x1 - Plug-in Card
Description
Add two USB 3.0 ports to your desktop computer through a PCI Express slot. The PEXUSB3S23 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to any PCI Express-enabled computer system. The USB card requires SATA power for functionality, and delivers 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0) via your computers SATA power connector.
The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
General Information
Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Name:
2 Port PCI Express PCIe USB 3.0 Controller Card w SATA Power
Packaged Quantity:
1
Product Type:
USB Adapter
Technical Information
Host Interface:
- PCI Express x1
Interfaces/Ports
Total Number of USB Ports:
2
Number of USB 3.0 Ports:
2
Number of SATA Ports:
1
Physical Characteristics
Form Factor:
Plug-in Card
Height:
80 mm
Width:
120 mm
Thickness:
21 mm
Weight (Approximate):
60 g
Miscellaneous
Package Contents:
- 2 Port PCI Express PCIe USB 3.0 Controller Card w SATA Power
- 1 x Low Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
Platform Supported:
- PC
Green Compliant:
Yes
Green Compliance Certificate/Authority:
- RoHS
- WEEE
Warranty
Standard Warranty:
2 Year
