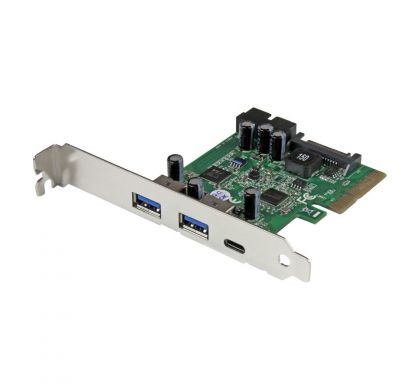

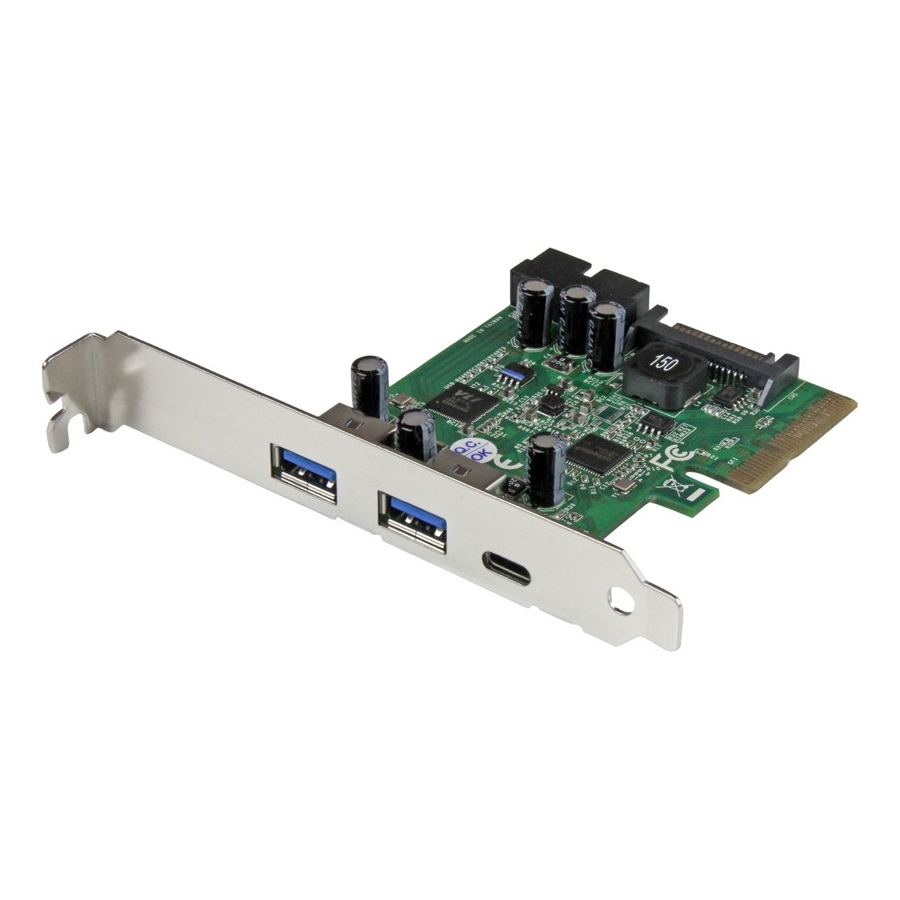

STARTECH .com USB Adapter - PCI Express 3.0 x4 - Plug-in Card

PEXUSB312EIC

This product has been discontinued by the manufacturer

Please visit

STARTECH USB/Firewire Adapters

for alternative options.

Description

Add a USB Type-C (USB 3.1 Gen 2 - 10Gbps) port to your computer, plus two USB Type-A ports, and two motherboard-style headers (5Gbps). This 5-port USB 3.1 combo card makes it easy to add to the performance and connectivity of your computer. It's one of the only USB 3.1 cards to offer a USB Type-C™ port (10Gbps), traditional USB Type-A ports (5Gbps), and a motherboard header.

By offering a range of USB port types, you can easily connect a variety of modern and legacy USB devices, both inside and outside your computer.

Because the card offers a 10Gbps USB-C™ port (USB 3.1 Gen 2), you can save time and avoid the performance bottlenecks that are often associated with other connectivity technologies.

Work faster and prepare for the future

This versatile PCI Express combo card leverages the performance potential of USB 3.1 to help you work faster. The USB-C port offers a data throughput of up to 10Gbps, so you can spend less time waiting for file transfers to complete or for access to your external peripherals.

Plus, you can rest assured that you're set for the future, as USB-C devices become more popular and more standardized.

Connect different types of USB devices

Now you can easily add a variety of types and speeds (generations) of USB ports to your desktop or server, using a single adapter card. The card features:
  • One external USB-C port (USB 3.1 Gen 2 - 10Gbps)
  • Two external USB-A ports (USB 3.1 Gen 1 - 5Gbps)
  • Two internal USB-A motherboard header ports (USB 3.1 Gen 1 - 5Gbps)

With a range of port types, the card lets you bridge the gap between older and newer devices that use different connectors. You can simultaneously connect and access USB Type-A and USB Type-C devices, while using only a single PCI Express expansion slot.

By adding three types of USB ports in one combo card, you can free up space in your PC case, and eliminate the nuisance of having different cards for different USB devices.

Ideal for building or upgrading your computer

With two internal motherboard-style headers, this dynamic USB 3.1 card is perfect for upgrading or building your own computer. If your existing headers are occupied, or if you don't have any motherboard headers, you can connect front panel hubs or card readers using this versatile alternative to costly motherboard or computer upgrades.

Connect your older USB devices

Connecting your older peripherals isn't a problem. This 5-port USB 3.1 card is backward compatible with legacy USB 3.0 and 2.0 devices, so you can eliminate the added expense and aggravation of purchasing new devices. (USB 3.0 is also known USB 3.1 Gen 1).

The PEXUSB312EIC is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Note: The card does not support DP alt mode or USB Power Delivery.

Specifications

General Information

Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Name:
5-Port USB 3.1 (10Gbps) Combo Card - 1x USB-C, 2x USB-A + 2x IDC (5Gbps)
Packaged Quantity:
1
Product Type:
USB Adapter

Technical Information

Host Interface:
  • PCI Express 3.0 x4

Interfaces/Ports

Total Number of USB Ports:
3
Number of USB 3.0 Ports:
2
Number of USB 3.1 Ports:
1

Physical Characteristics

Form Factor:
Plug-in Card
Height:
119.4 mm
Width:
17.8 mm
Length:
78.7 mm
Weight (Approximate):
99.2 g

Miscellaneous

Platform Supported:
  • Linux
  • PC
  • Mac
