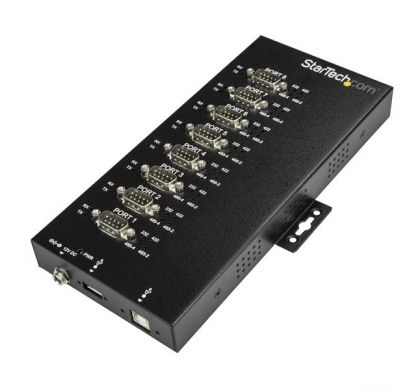

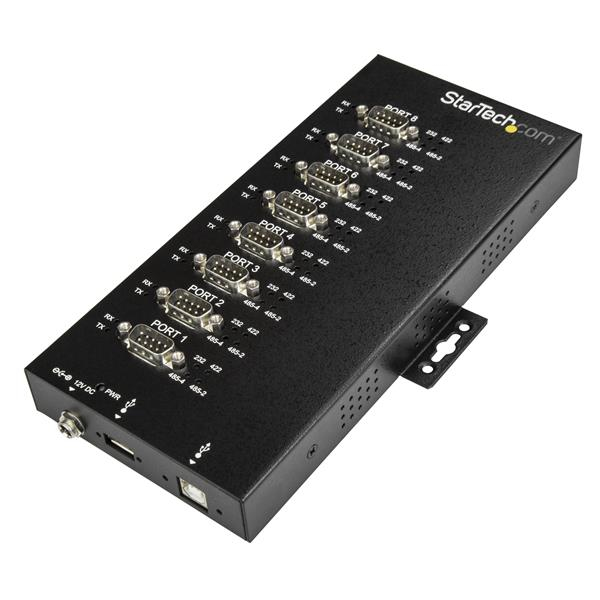

8-Port Industrial USB to RS-232/422/485 Serial Adapter - 15 kV ESD Protection

Retail price: $837.09
You save: $8.34 (1%) Save 1%
Add to favourites


Add extra COM ports to your laptop or desktop computer, quickly and easily. This USB to RS232/422/485 serial adapter lets you connect to your serial devices through an external USB port.

Supports multiple serial protocols

The versatile serial adapter converts a single USB port into eight RS232/RS422/RS485 serial ports, enabling you to connect, monitor, and control a wide range of serial devices, such as sensors, barcode scanners, and LED signage. It supports four operating modes, including RS232, RS422, 4-wire and 2-wire RS485.

Ideal for harsh environments

With its rugged IP30-rated metal hub housing, the serial adapter is built to meet the extreme demands of harsh and mission-critical environments. It provides 15 kV ESD protection, which helps to reduce downtime in industrial environments where communications lines are more prone to noise emissions or sudden spikes in voltage.

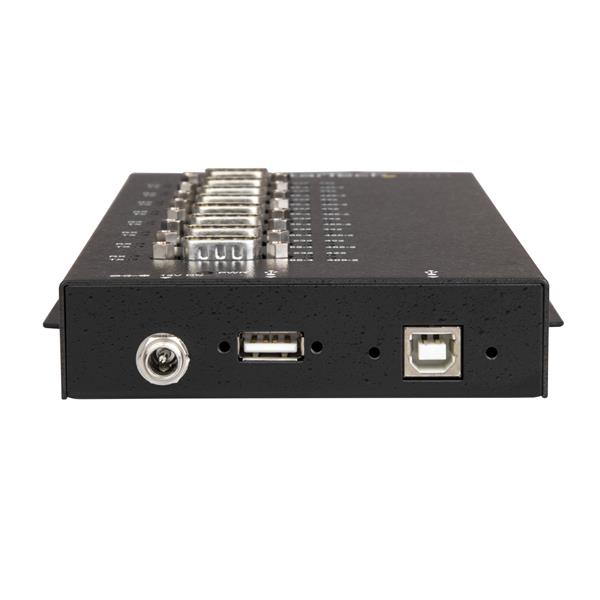

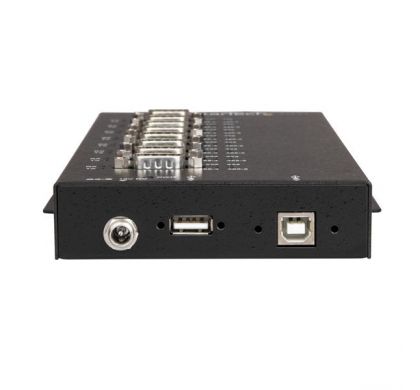

The serial adapter offers flexible mounting options, with a built-in wall-mounting bracket and included DIN rail mounting kit. It also features a screw-locking host connection plus a screw-locking USB-B connector on the included USB cable, to prevent accidental disconnections.

Fast data transfers

The serial adapter is equipped with high-speed UARTs, providing fast data rates of up to 921Kbps in RS232/422/485 operating modes.

The ICUSB234858I is backed by a 2-year warranty and free lifetime technical support.


General Information

Manufacturer Part Number:
Manufacturer Website Address:
Brand Name:
Product Name:
USB Serial Hub
Packaged Quantity:
Product Type:
Serial Hub

Technical Information

Host Interface:
  • USB
Platform Supported:
  • Linux
  • PC


Number of Serial Ports (External):

Physical Characteristics

Form Factor:
1" (25.40 mm)
5" (127 mm)
8.60" (218.44 mm)
Weight (Approximate):
751.3 g


Package Contents:
  • USB Serial Hub
  • 1 x USBxB with Screw Lock to USBxA Cable
  • 1 x DIN Rail Kit
  • 1 x Universal Power Adapter (NA/JP, UK, EU, ANZ)
  • 1 x Instruction Manual
Green Compliant:
Green Compliance Certificate/Authority:
  • WEEE
  • RoHS


Standard Warranty:
2 Year
