STARTECH Serial/Parallel Combo Adapter

Retail price: $93.49
$92.50
(Includes GST) You save: $0.99 (1%) Save 1%
PEX1S1P952
Please Call
+
Add to favourites

Description

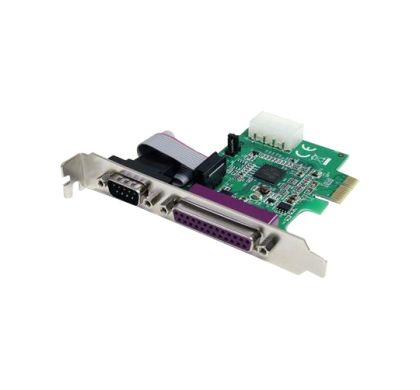

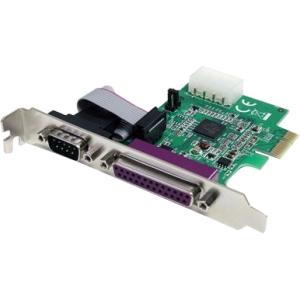

The PEX1S1P952 1S1P Native PCI Express Parallel/Serial Combo Card with 16950 UART turns a PCI Express slot into 1 RS232 (DB9) serial, and 1 parallel port.

The combo card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards that use a bridge chip design.

This 1-Port Serial/1-Port Parallel card offers compatibility with a broad range of operating systems including Windows (32/64-bit) and Linux, for easy integration into mixed environments. The card also features an optional low profile/half-height bracket that enables you to install the card in virtually any computer case, regardless of form factor.

Backed by a StarTech.com Lifetime warranty and free lifetime technical support.

Specifications

General Information

Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Name:
1S1P Native PCI Express Parallel Serial Combo Card with 16950 UART
Product Type:
Serial/Parallel Combo Adapter

Technical Information

Host Interface:
  • PCI Express x1
Data Transfer Rate:
  • 1.50 Mbit/s Parallel Port
  • 115.20 kbit/s Serial Port
UART Type:
16950
Parallel Port Modes:
  • SPP
  • ECP
  • EPP
Platform Supported:
  • PC

Interfaces/Ports

Number of Parallel Ports (External):
1
Number of Serial Ports (External):
1

Physical Characteristics

Form Factor:
Plug-in Card
Card Height:
Dual-profile
Height:
65 mm
Width:
80 mm
Thickness:
11.9 mm
Weight (Approximate):
60.1 g

Miscellaneous

Package Contents:
  • 1S1P Native PCI Express Parallel Serial Combo Card with 16950 UART
  • 2 x Low Profile Installation Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS

Warranty

Standard Warranty:
2 Year
