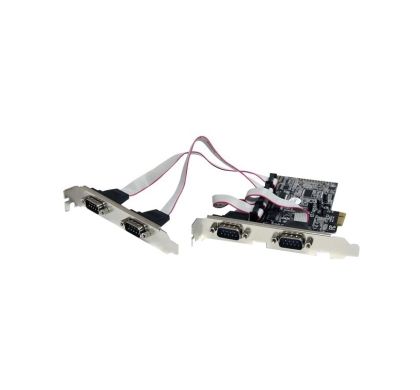

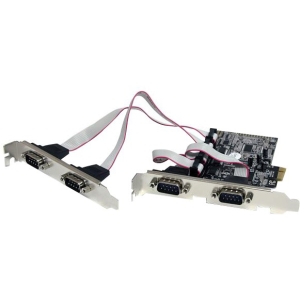

STARTECH Serial Adapter - Dual-profile Plug-in Card - 1 Pack
Description
The PEX4S553 4-Port Native PCI Express RS232 Serial Adapter Card with 16550 UART lets you add 4 RS232 (DB9) serial ports, using a single PCI Express expansion slot.
Based on a native single-chip design, this 4-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge-chip serial cards.
The RS232 Serial Adapter Card includes 4 half-height/low-profile brackets, allowing the card to be installed into almost any PC case, regardless of form factor.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
Specifications
General Information
Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Name:
4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART
Packaged Quantity:
1
Product Type:
Serial Adapter
Technical Information
Host Interface:
- PCI Express x1
Data Transfer Rate:
- 1 Mbit/s
UART Type:
- 16550
- 16C450
Platform Supported:
- PC
Interfaces/Ports
Number of Serial Ports (External):
4
Physical Characteristics
Form Factor:
Plug-in Card
Card Height:
Dual-profile
Height:
17.8 mm
Width:
129.5 mm
Length:
119.4 mm
Weight (Approximate):
79.4 g
Warranty
Standard Warranty:
2 Year
