STARTECH PEX2S5531P Serial/Parallel Combo Adapter - Dual-profile Plug-in Card - 1 Pack

Retail price: $93.49
$92.50
(Includes GST) You save: $0.99 (1%) Save 1%
PEX2S5531P
Available
+
Add to favourites

Description

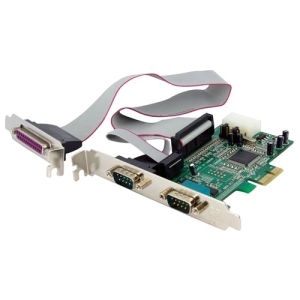

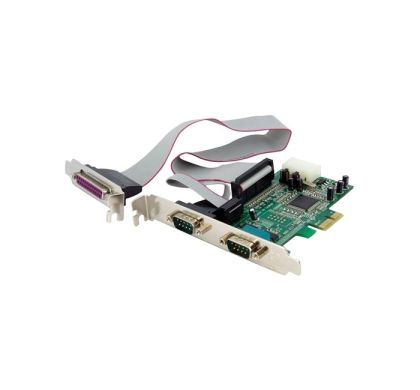

Add 1 parallel port and 2 RS-232 serial ports to your standard or low-profile computer through a PCI Express expansion slot. The PEX2S5531P 2S1P PCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design.

Compatible with a broad range of operating systems including Windows 2000/XP/2003/Vista/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 Port Serial 1 Port Parallel PCI-Express Card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor.

Specifications

General Information

Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Model:
PEX2S5531P
Product Name:
2S1P PCIe Parallel Serial Combo Card
Packaged Quantity:
1
Product Type:
Serial/Parallel Combo Adapter

Technical Information

Host Interface:
  • PCI Express
Data Transfer Rate:
  • 12 Mbit/s Parallel Port
  • 3.60 Mbit/s Serial Port
UART Type:
16550
Platform Supported:
  • PC

Interfaces/Ports

Number of Parallel Ports (External):
2
Number of Serial Ports (External):
1

Physical Characteristics

Form Factor:
Plug-in Card
Card Height:
Dual-profile
Height:
20.3 mm
Width:
119.4 mm
Length:
104.1 mm
Weight (Approximate):
138.9 g

Miscellaneous

Package Contents:
  • 2S1P PCIe Parallel Serial Combo Card
  • Standard and Low profile/half-height Bracket
Additional Information:
  • Native single-chip, single lane PCI Express chipset delivers true PCIe performance.
  • Standard and low profile/half-height bracket included to ensure fitment in any system.
  • Easy to install and use with full step-by-step instructions saving time and hassle.
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS

Warranty

Standard Warranty:
2 Year
