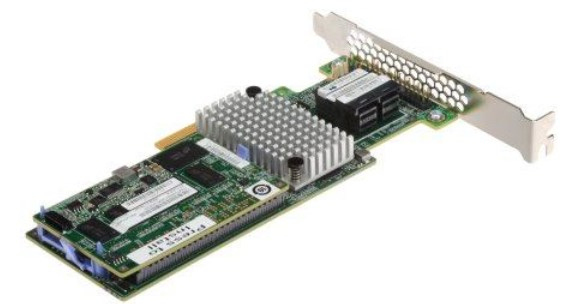

LENOVO SAS Controller - 12Gb/s SAS - PCI Express 3.0 x8 - 2 GB Flash Backed Cache - Plug-in Card

00AE938
Please Call
Please contact us for pricing

Description

The ServeRAID M5225-2GB SAS/SATA Controller is a 12 Gb SAS RAID controller with two external connectors to connect to SAS expansion enclosures. The adapter is part of the ServeRAID M Series family, which offers a complete server storage solution that consists of RAID controllers, cache/flash modules, energy packs, and software feature upgrades in an ultra-flexible offerings structure. These products are optimized to deliver performance that is demanded by the ever-growing I/O requirements of today's enterprises. The M5225-2GB is a small form factor PCIe RAID adapter for external storage, and it shares a common set of ServeRAID M Series Features on Demand (FoD) upgrades that are available for the entire family.

Specifications

General Information

Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Name:
ServeRAID M5225-2GB SAS/SATA Controller
Packaged Quantity:
1
Product Type:
SAS Controller

Technical Information

Host Interface:
  • PCI Express 3.0 x8
Controller Type:
  • 12Gb/s SAS
RAID Supported:
Yes
RAID Levels:
  • 0
  • 1
  • 5
  • 10
  • 50
Data Backup Type:
Flash Backed Cache

Interfaces/Ports

Total Number of SAS Ports:
8
Number of SAS Ports (External):
8
SAS Connector Details:
2 SFF-8644

Physical Characteristics

Height:
17 mm
Width:
68 mm
Depth:
170 mm
Form Factor:
Plug-in Card
Weight (Approximate):
116 g

Miscellaneous

Platform Supported:
  • Linux
  • PC
