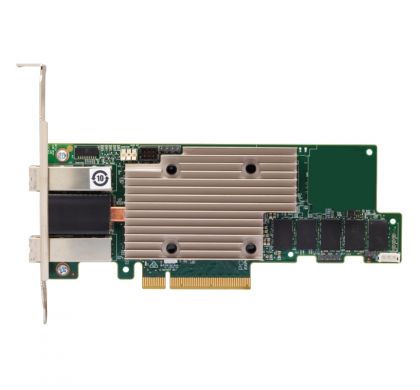

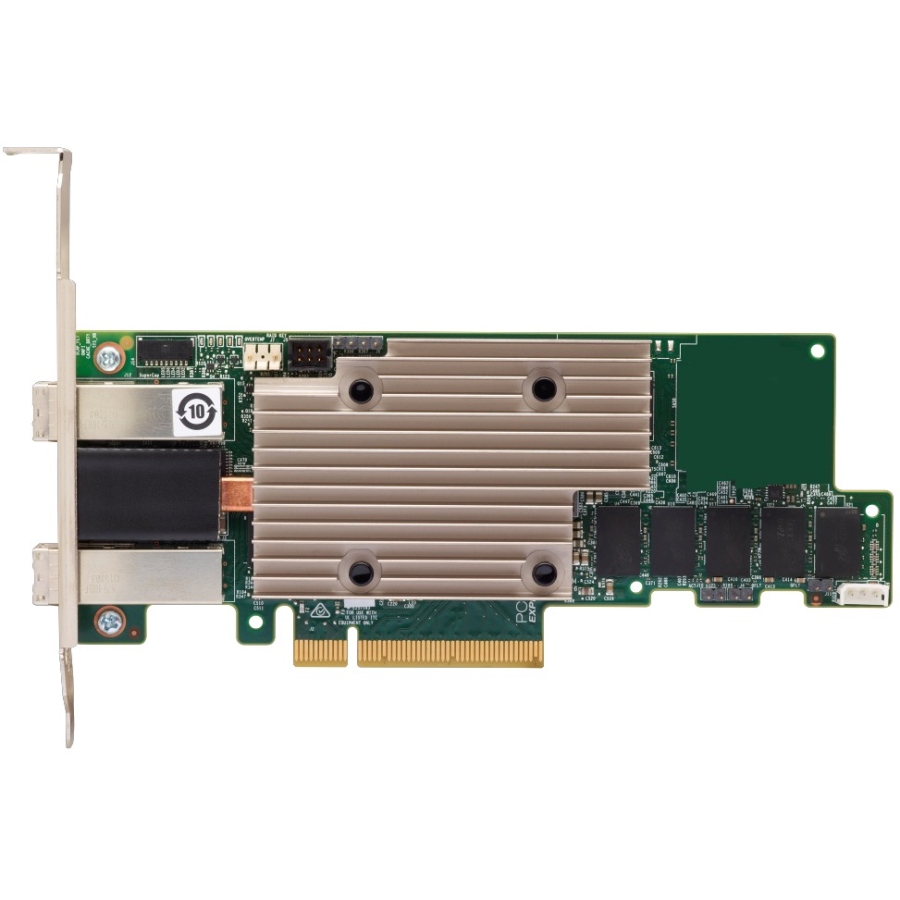

LENOVO 930-8e SAS Controller - 12Gb/s SAS - PCI Express 3.0 x8 - 4 GB Flash Backed Cache - Plug-in Card
Description
The ThinkSystem RAID 930-8e External RAID Adapter is a high-performance 12 Gbps SAS RAID-on-chip (ROC) adapter for connectivity to external disk enclosures. The adapter comes standard with 4 GB of cache, supports RAID levels 0, 1, 10, 5, 50, 6 and 60, and includes an extensive list of RAS and management features.
Specifications
General Information
Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Model:
930-8e
Product Name:
ThinkSystem RAID 930-8e 4GB Flash PCIe 12Gb Adapter
Product Type:
SAS Controller
Technical Information
Host Interface:
- PCI Express 3.0 x8
Controller Type:
- 12Gb/s SAS
RAID Supported:
Yes
RAID Levels:
- 0
- 1
- 10
- 5
- 50
- 6
- 60
- JBOD
Data Backup Type:
Flash Backed Cache
Interfaces/Ports
Total Number of SAS Ports:
8
Number of SAS Ports (External):
8
SAS Connector Details:
2 SFF-8644
Physical Characteristics
Form Factor:
Plug-in Card
Miscellaneous
Platform Supported:
- Linux
- PC
