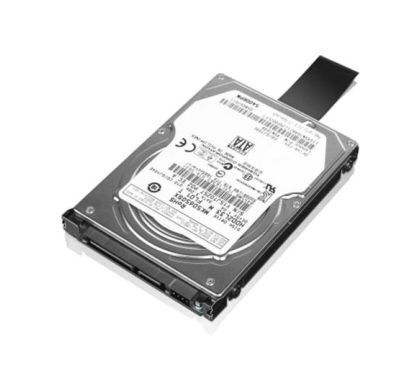

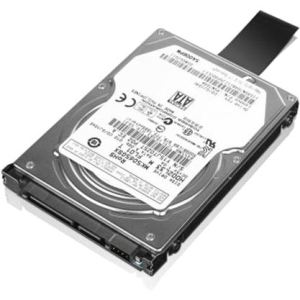

LENOVO ThinkPad 500 GB 2.5" Internal Hard Drive

0A65631

This product has been discontinued by the manufacturer

Please visit

LENOVO Hard Drives / Solid State Drives

for alternative options.

Description

The ThinkPad 500GB 5400rpm SATA 3.0Gb/s 7mm 4k Hard Drive option provides a robust thin design enabling a seamless upgrade from the primary hard drive of supported ThinkPad laptops. This affordable option provides good storage size along with advanced format, and SATA data transfer capabilities. The Advance Format or 4k sector emulates the 512 sector drives while delivering higher capacity points along with improved error correction capabilities. The ultimate benefit of higher HDD density and better yield at a lower cost per gigabyte. For additional storage and backup install this drive as a second hard drive using the 9.5mm ThinkPad Serial Hard Drive Bay Adapter III (43N3412) or 12.7" ThinkPad Serial Hard Drive Bay Adapter III (0A65623).

Specifications

General Information

Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Family:
ThinkPad
Product Name:
ThinkPad 500GB 5400rpm SATA 3.0Gb/s 7mm 4k Hard Drive
Product Type:
Hard Drive

Technical Information

Storage Capacity:
500 GB
Features:
  • Advanced Format

Drive Performance

Maximum External Data Transfer Rate:
300 MBps (2.3 Gbps)
Maximum Internal Data Transfer Rate:
1004 MBps (7.8 Gbps)
Rotational Speed:
5400 rpm
Buffer:
8 MB
Average Seek Time:
13 ms

Interfaces/Ports

Drive Interface:
SATA
Drive Interface Standard:
SATA/300
SATA Pin:
7-pin

Physical Characteristics

Drive Type:
  • Internal
Drive Width:
2.5"
Height:
6.8 mm
Width:
69.9 mm
Depth:
100.2 mm
Weight (Approximate):
95 g

Miscellaneous

Compatibility:
ThinkPad Serial Hard Drive Bay Adapters:
  • 9.5" (43N3412)
  • 12.7" (0A65623)
Lenovo ThinkPad Notebooks:
  • T420
  • T430
  • T420s
  • T430s
  • T520
  • T530
  • W520
  • W530
  • X220
  • X220T
  • X230
  • X230T
Certifications & Standards:
  • CE
  • UL
  • MIC
  • TUV
  • BSMI
  • C-Tick
  • CUL
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS
Device Supported:
Notebook
