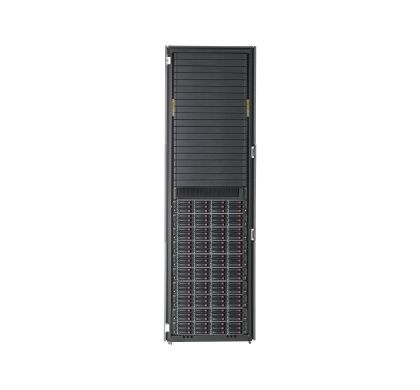

HP StorageWorks P6300 SAN Array

QK744A

This product has been discontinued by the manufacturer

Please visit

HP Storage Arrays

for alternative options.

Description

Enterprise deployment of business critical applications needing storage that is easy to use and economical to own.Do you need an affordable and efficient array system with high availability and performance? The HP EVA P6000 is an easy to use, capacity enhanced storage system with built-in virtualization letting you to consolidate storage and simplify your IT. The EVA P6000 also offers high performance, high availability, and robust data protection. Combined with your favorite database, email, ERP or other applications, the EVA P6000 provides an integrated end-to-end solution that helps drive your business. See improved storage density with built-in Thin Provisioning and a smaller footprint in your data center with 2.5-inch SAS disk drives. The EVA P6000 offers multi-protocol support to your SAN with 8Gb/s Fibre Channel, 1Gb/s iSCSI, and 10Gb/s iSCSI/FCoE options. It provides a better business value by eliminating stranded capacity and maximizing performance. EVA P6000 uses all the disks to send and retrieve data and can dynamically expand virtual disks as data grows.

Specifications

General Information

Manufacturer:
Hewlett-Packard
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Family:
StorageWorks
Product Series:
P6000
Product Model:
P6300
Product Name:
EVA P6300 Dual Controller FC and iSCSI Array
Product Type:
SAN Array

Storage

Number of Hard Drives Supported:
25
Number of Hard Drives Installed:
No
Number of Solid State Drive Supported:
25
Number of Solid State Drive Installed:
No

Controllers

Controller Type:
  • 6Gb/s SAS
RAID Levels:
  • 1
  • 5
  • 6
  • 0
  • 0+1
  • 0+5

Network & Communication

Ethernet Technology:
  • 10 Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays:
25
Number of 5.25" Bays:
No
Number of 3.5" Bays:
No
Number of 2.5" Bays:
25
Number of 2.5"/3.5" Bays:
No

Interfaces/Ports

Drive Interface:
6Gb/s SAS
SAN Interface:
  • Fibre Channel
  • iSCSI

Protocols

Protocols:
  • SNMP
  • SSH
  • WBEM

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC
Number of Power Supplies Installed:
2
Redundant Power Supply:
Yes

Physical Characteristics

Height:
178.0 mm
Width:
603.0 mm
Depth:
1022.0 mm
Weight (Approximate):
44.70 kg

Miscellaneous

Package Contents:
  • EVA P6300 Dual Controller FC and iSCSI Array
  • Rack Mounting Hardware
  • 2 x Power Cords
  • 2 x SAS Cables
Certifications & Standards:
  • UL
  • CSA
  • TUV
  • FCC
  • CE
  • C-Tick
  • BSMI
  • VCCI
Platform Supported:
  • Mac
  • PC
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • REACH
  • RoHS

Warranty

Standard Warranty:
3 Year
