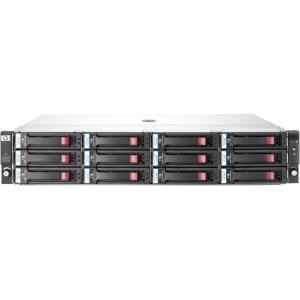

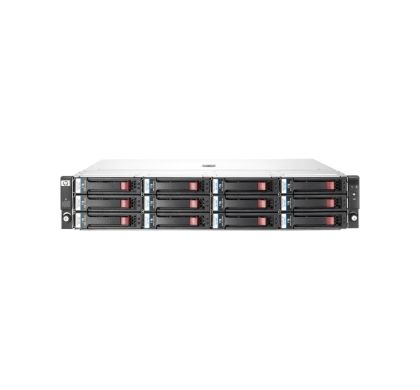

HP D2600 DAS Array - 12 x HDD Supported - 36 TB Supported HDD Capacity - 12 x HDD Installed - 36 TB Installed HDD Capacity

HP D2600 DAS Array - 12 x HDD Supported - 36 TB Supported HDD Capacity - 12 x HDD Installed - 36 TB Installed HDD Capacity
QK765A
Please Call
Please contact us for pricing

Description

Is your storage growing by leaps and bounds, exceeding your current system capacity? Manage your small and midrange business' growing storage needs by deploying the HP D2000 Disk Enclosures, the next generation 6 Gb SAS low-cost, flexible, tiered external storage system. The HP D2000 Disk Enclosures are ideal for small application environments in small and medium businesses, remote offices and departmental locations. The new 6 Gb SAS enclosures Large Form Factor (LFF) D2600 with 12 drive bays and Small Form Factor (SFF) D2700 with 25 drive bays offer modular solutions to simplify capacity expansion of HP ProLiant and Integrity server environments and MSA Arrays (SFF only) to external storage without having to make the full move to SAN or NAS. This allows you to buy what is needed today and purchase additional capacity as data storage needs grow. Total support can grow up to 96 LFF or 100 SFF drives as needed.

Specifications

General Information

Manufacturer:
Hewlett-Packard
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Model:
D2600
Product Name:
D2600 DAS Hard Drive Array
Product Type:
DAS Array

Storage

Number of Hard Drives Supported:
12
Number of Hard Drives Installed:
12
Total Hard Drive Capacity Supported:
36 TB
Total Hard Drive Capacity Installed:
36 TB
Hard Drive RPM:
7200

Controllers

RAID Levels:
  • 0
  • 1
  • 1+0
  • 5
  • 6
  • 50
  • 60
  • JBOD

I/O Expansions

Number of Total Expansion Bays:
12
Number of 3.5" Bays:
12

Interfaces/Ports

Drive Interface:
6Gb/s SAS
Host Interface:
  • 6Gb/s SAS

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC
Number of Power Supplies Installed:
2
Redundant Power Supply:
Yes

Physical Characteristics

Form Factor:
Rack-mountable
Rack Height:
2U
Height:
762 mm
Width:
419.1 mm
Depth:
596.9 mm
Weight (Approximate):
20.87 kg

Miscellaneous

Package Contents:
  • D2600 DAS Hard Drive Array
  • 2 x mini-SAS Cables
  • 2 x PDU Interconnect Cords
Certifications & Standards:
  • CSPRA-0430
  • EN 55022:2006+A1/2007
  • EN 61000-3-2 -2006
  • EN 61000-3-3:1995 + A1:2001/+A2/2006
  • EN 55024:1998 + A1:2001 + A2:2003
  • FCC CFR 47 Part 15
  • EN 60950-1:2001
  • IEC 60950-1:2001
  • FCC
  • CE
Platform Supported:
  • PC
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • REACH

Warranty

Standard Warranty:
3 Year
