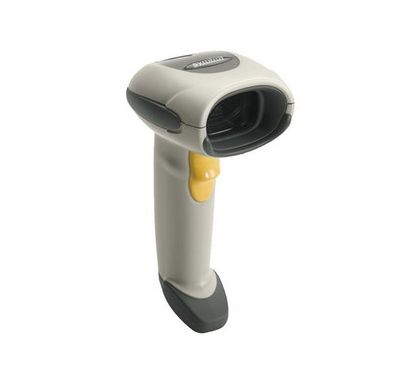

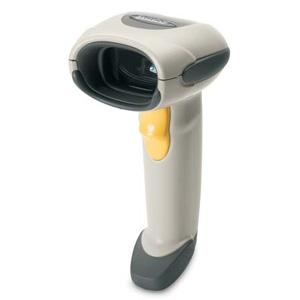

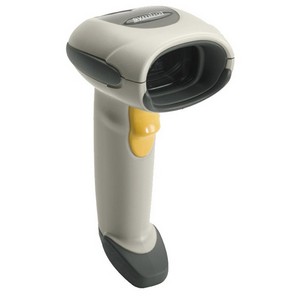

ZEBRA Symbol LS4208 Handheld Barcode Scanner - Cable Connectivity - Black

ZEBRA Symbol LS4208 Handheld Barcode Scanner - Cable Connectivity - Black
LS4208-PR20007ZZR

This product has been discontinued by the manufacturer

Please visit

ZEBRA Barcode Scanners

for alternative options.

Description

With Symbol's LS4208 handheld laser Bar Code Reader, user is able to effortlessly speed throughput, even with bar codes in poor condition. Wherever need to quickly capture and process data such as at the retail checkout counter, in pharmacies and hospitals, and in light warehouse environments this ergonomically designed scanner helps to increase accuracy, improve productivity, cut maintenance costs and reduce the risk of downtime.

Specifications

General Information

Manufacturer:
Zebra Technologies Corporation
Manufacturer Website Address:
http://www.zebra.com
Brand Name:
Zebra
Product Family:
Symbol
Product Model:
LS4208
Product Name:
Symbol LS 4208 Bar Code Reader
Product Type:
Handheld Barcode Scanner

Technical Information

Connectivity Technology:
  • Cable
Bar Code Dimension:
  • 2D
  • 1D
Bar Code Symbology Supported:
  • UPC/EAN Supplementals
  • Code 39
  • Code 39 Full ASCII
  • Trioptic Code 39
  • RSS Variants
  • UCC/EAN 128
  • Code 128
  • Code 128 Full ASCII
  • Code 93
  • Codabar (NW1)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • MSI
  • Code ll
  • IATA
  • Bookland EAN
  • Code 32
  • PDF 417
  • Micro PDF
  • Composite Codes
    • Light Source:
    • Laser
    Maximum Scan Resolution:
    0.13 mm
    Depth of Field:
    • 0 nm - 736.60 mm@0.51 mm - Code 39
    • 0 nm - 482.60 mm@0.33 mm - 100% UPC/EAN
    • 0 nm - 355.60 mm@0.25 mm - Code 39
    • 38.10 mm - 139.70 mm@0.13 mm - Code 39
    Scan Pattern:
    2D Raster

    Interfaces/Ports

    Host Interface:
    • Multi-interface

    Power Description

    Input Voltage:
    • 5 V DC

    Physical Characteristics

    Colour:
    • Black
    Height:
    170.2 mm
    Width:
    68.6 mm
    Depth:
    94 mm
    Weight (Approximate):
    181.4 g

    Miscellaneous

    Additional Information:
    • Supported Interfaces:
    • Serial
    • IBM 468X/469X
    • Keyboard Wedge
    • USB
    • Wand Emulation
    Certifications & Standards:
    Electrical safety:
  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950
    • Laser safety:
  • CDRH Class II
  • IEC Class 2
    • EMI/RFI:
  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA

    • Warranty

    Standard Warranty:
    5 Year
