ZEBRA Symbol LS3578-ER Handheld Barcode Scanner - Wireless Connectivity - Black, Yellow

LS3578-ERBU0100UR

This product has been discontinued by the manufacturer

Please visit

ZEBRA Barcode Scanners

for alternative options.

Description

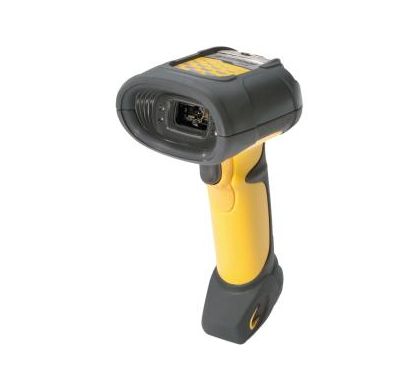

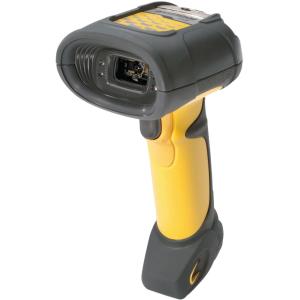

Symbol LS3578-ER Rugged Bar Code Reader is a Bluetooth-enabled cordless rugged scanner that scans all 1D bar codes from practically anywhere. The LS3578-ER reads labels as far away as 45 feet and as close as 4 inches - the greatest working range available in a rugged, handheld scanner. It gives operators a 150-foot range, which far exceeds the 6-foot corded device range. Designed for use in harsh environments, the LS3578-ER withstands multiple 6.5-ft. (2-m) drops to concrete. Remote Scanner Management (RSM) enables efficient upgrades from a central location.

Specifications

General Information

Manufacturer:
Zebra Technologies Corporation
Manufacturer Website Address:
http://www.zebra.com
Brand Name:
Zebra
Product Family:
Symbol
Product Model:
LS3578-ER
Product Name:
Symbol LS3578-ER Bar Code Reader
Product Type:
Handheld Barcode Scanner

Technical Information

Connectivity Technology:
  • Wireless
Bar Code Dimension:
1D
Bar Code Symbology Supported:
  • UPC/EAN
  • UPC/EAN with Supplementals
  • UCC/EAN 128
  • JAN-8
  • JAN-13
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar (NW7)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • Code 32
  • Bookland EAN
  • IATA
  • UCC/EAN RSS
  • RSS Variants
  • Light Source:
    • Laser
    Scan Rate:
    36 scan/s
    Maximum Scan Resolution:
    0.19 mm
    Scanning Distance:
    45.72 m

    Network & Communication

    Bluetooth:
    Yes

    Interfaces/Ports

    Host Interface:
    • Multi-interface

    Power Description

    Input Voltage:
    • 14 V DC
    Power Source:
    • Battery

    Physical Characteristics

    Colour:
    • Yellow
    • Black
    Weight (Approximate):
    420 g

    Miscellaneous

    Package Contents:
  • Symbol LS3578-ER Rugged Bar Code Reader

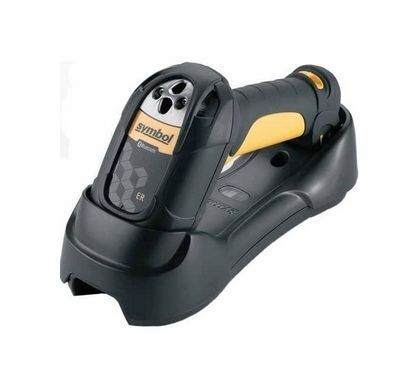

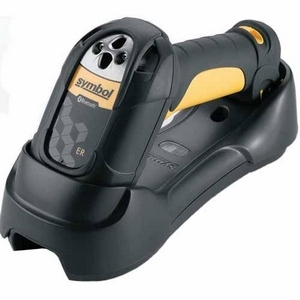

  • Cradle
  • 7 ft. Straight USB Cable
  • Universal Power Supply
  • US AC Line Cord
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • Keyboard Wedge
    • IBM 468X/469X
    • USB
    • Synapse
    Certifications & Standards:
  • IP65
  • RoHS Compliant
  • Radio EN 300 328
  • Input Transient Protection:
  • IEC 1000-4-2
  • IEC 1000-4-3
  • IEC 1000-4-4
  • IEC 1000-4-5
  • IEC 1000-4-6
  • IEC 1000-4-11
  • EMI/RFI:
  • EN 301 489-1
  • EN 301 489-17
  • IEC 60601-1-2
  • EN 55022
  • FCC Part 15 Class B
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3
  • ICES-003 Class B
  • European Union EMC Directive
  • Japan VCCI/MITI/Dentori
  • Laser Safety:
  • IEC825-1 Class 2
  • EN 60825-1
  • IEC 60825-1
  • 21CFR1040.10
  • Electrical Safety:
  • UL 60950-1
  • C22.2 No. 60950-1
  • EN 60950-1
  • IEC 60950-1
  • RF Exposure:
  • EN 50360
  • EN 50361
  • FCC Part 2
  • OET Bulletin 65
  • RSS102
  • Green Compliant:
    Yes
    Green Compliance Certificate/Authority:
    • RoHS

    Warranty

    Standard Warranty:
    3 Year
