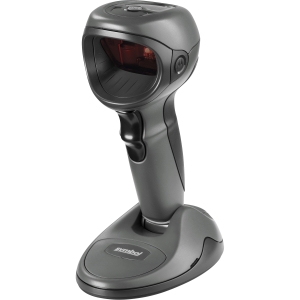

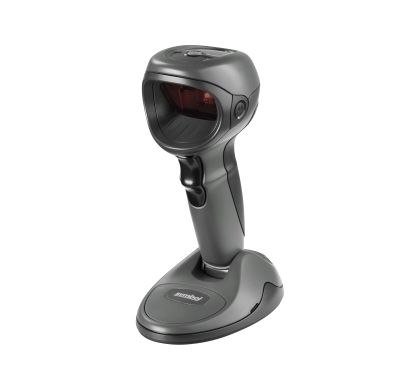

ZEBRA Symbol DS9808-LR7NNU01ZR Handheld Barcode Scanner - Cable Connectivity - Twilight Black

DS9808-LR7NNU01ZR

This product has been discontinued by the manufacturer

Please visit

ZEBRA Barcode Scanners

for alternative options.

Description

Achieve a new level of productivity and throughput at the checkout stand with the Motorola's DS9808LR Bar Code Reader. The groundbreaking DS9808LR Bar Code Reader is designed inside and outside to bring a new level of versatility,functionality and performance to the checkout stand. Outside, the DS9808LR Bar Code Reader offers an extraordinary one-of-a-kind hybrid form factor by marrying a solid base with our advanced handheld ergonomics, creating a scanner that is truly designed to deliver superior comfort and ease of use in both handheld and hands-free scanning modes.

Specifications

General Information

Manufacturer:
Zebra Technologies Corporation
Manufacturer Website Address:
http://www.zebra.com
Brand Name:
Zebra
Product Family:
Symbol
Product Model:
DS9808-LR7NNU01ZR
Product Name:
Symbol DS9808LR Handheld Barcode Scanner
Product Type:
Handheld Barcode Scanner

Technical Information

Connectivity Technology:
  • Cable
Bar Code Dimension:
2D
Bar Code Symbology Supported:
1-D / LINEAR CODES:
  • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals)
  • ISBN (Bookland)
  • ISSN
  • Coupon Code
  • Code 39 (Standard, Full ASCII, Trioptic)
  • Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
  • Code 93
  • Codabar/NW7
  • Code 11 (Standard, Matrix 2 of 5)
  • MSI Plessey
  • I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
  • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
  • Base 32 (Italian Pharmacode)
PDF417 (and variants):
  • PDF417 (Standard, Macro)
  • MicroPDF417 (Standard, Macro)
  • Composite Codes (CC-A, CC-B, CC-C)
2-D:
  • TLC-39
  • Aztec (Standard, Inverse)
  • MaxiCode, DataMatrix/ECC 200 (Standard, Inverse)
  • QR Code (Standard, Inverse, Micro)
Postal:
  • U.S. Postnet and Planet
  • U.K. Post
  • Japan Post
  • Australian Post
  • Netherlands KIX Code
  • Royal Mail 4 State Customer
  • UPU FICS 4 State Postal
  • USPS 4CB
Light Source:
  • LED
Image Sensor:
Imager
Maximum Scan Resolution:
0.20 mm
Depth of Field:
  • 0 nm - 152 mm@0.25 mm - Datamatrix
  • 0 nm - 127 mm@0.17 mm - PDF417
  • 0 nm - 457 mm@0.33 mm - UPC/EAN
  • 0 nm - 343 mm@0.25 mm - UPC/EAN
  • 0 nm - 127 mm@0.13 mm - Code 39
Scan Pattern:
Omni-directional
Scanning Distance:
457.20 mm

Interfaces/Ports

Host Interface:
  • USB

Physical Characteristics

Colour:
  • Twilight Black
Height:
203 mm
Width:
137 mm
Depth:
86 mm
Weight (Approximate):
340 g

Miscellaneous

Package Contents:
  • Symbol DS9808LR Handheld Barcode Scanner
  • USB Cable
Additional Information:
  • Supported Interface:
    • USB
    • RS-232
    • RS-485 (IBM 46xx Protocols)
    • KBW interface
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS

Warranty

Standard Warranty:
3 Year
