ZEBRA Symbol DS6707-SR Handheld Barcode Scanner - Cable Connectivity - Black

ZEBRA Symbol DS6707-SR Handheld Barcode Scanner - Cable Connectivity - Black
DS6707-SRBU0100ZR

This product has been discontinued by the manufacturer

Please visit

ZEBRA Barcode Scanners

for alternative options.

Description

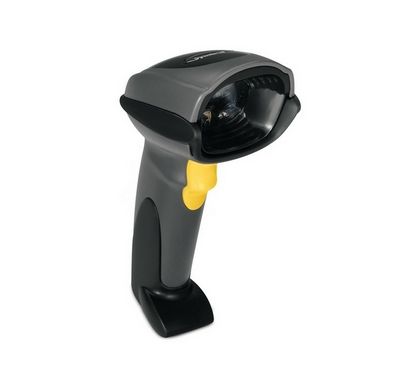

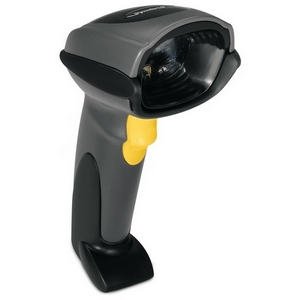

The versatile DS6707 Standard Range Bar Code Reader from Symbol Technologies delivers the functionality of a 1D and 2D bar code scanner, digital camera and document scanner in a single device. Designed to meet a wide variety of business needs across a variety of industries, the DS6707 SR enhances employee productivity and streamlines business processes in retail, healthcare, government, manufacturing and more by combining an onboard 1.3 megapixel camera with high performance scanning features and superior digital imaging technology.

Specifications

General Information

Manufacturer:
Zebra Technologies Corporation
Manufacturer Website Address:
http://www.zebra.com
Brand Name:
Zebra
Product Family:
Symbol
Product Model:
DS6707-SR
Product Name:
Symbol DS6707SR Handheld Barcode Scanner
Product Type:
Handheld Barcode Scanner

Technical Information

Connectivity Technology:
  • Cable
Bar Code Dimension:
  • 2D
  • 1D
Bar Code Symbology Supported:
  • UPC/EAN
  • UPC/EAN with Supplementals
  • UCC/EAN 128
  • JAN-8
  • JAN-13
  • Code 39
  • Trioptic Code 39
  • Code 128
  • Code 128 Full ASCII
  • Codabar (NW1)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • Bookland EAN
  • IATA
  • Code 32
  • RSS Variants
  • PDF 417
  • Micro PDF417
  • MaxiCode
  • DataMatrix
  • QR Code
  • U.S. Postnet
  • U.S. Planet
  • U.K. Postal
  • Japanese Post
  • Australian Post
  • Dutch Postal
    • Light Source:
    • Laser
    Image Sensor:
    Imager
    Maximum Scan Resolution:
    0.13 mm
    Depth of Field:
    • 27.94 mm - 190.50 mm@0.25 mm - Data Matrix
    • 22.86 mm - 177.80 mm@0.25 mm - PDF417
    • 12.70 mm - 386.08 mm@0.51 mm - Code 39
    • 12.70 mm - 246.38 mm@0.33 mm - 100% UPC/EAN
    • 27.94 mm - 165.10 mm@0.13 mm - Code 39
    Scan Pattern:
    Omni-directional

    Interfaces/Ports

    Host Interface:
    • USB

    Power Description

    Input Voltage:
    • 5 V DC

    Physical Characteristics

    Colour:
    • Black
    Height:
    166.4 mm
    Width:
    71.6 mm
    Depth:
    119.9 mm
    Weight (Approximate):
    181.4 g

    Miscellaneous

    Package Contents:
    • Symbol DS6707SR Handheld Barcode Scanner
    • 7ft USB Type A Straight Cable
    Additional Information:
    • Supported Interfaces:
    • USB
    • Serial
    • Synapse
    • IBM 468X/469X
    • Keyboard Wedge
    Certifications & Standards:
  • RoHS Compliant
  • Medical Electrical Equipment: EN60001-1-2: 2002
    • Electrical Safety:
  • UL6950-1
  • CSA C22.2 No. 60950-1
  • EN60950-1/IEC60950-1
    • Laser Safety:
  • EN60825-1:1994 +A1: 2002 +A2 :2001
  • IEC60825-1
  • 21CFR1040.10
  • 21CFR1040.11
  • CDRH Class II
  • IEC Class 2
    • EMI/RFI:
  • FCC Part 15 Class B
  • ICES-003 Class B
  • CISPR 22
  • CISPR 24
    • Green Compliant:
    Yes
    Green Compliance Certificate/Authority:
    • RoHS

    Warranty

    Standard Warranty:
    5 Year
