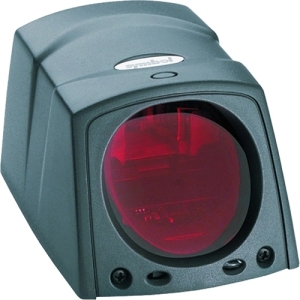

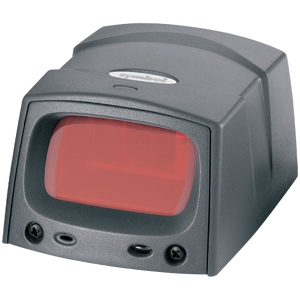

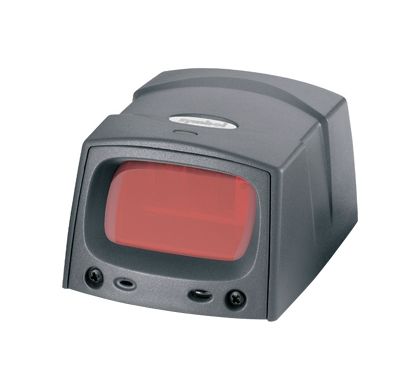

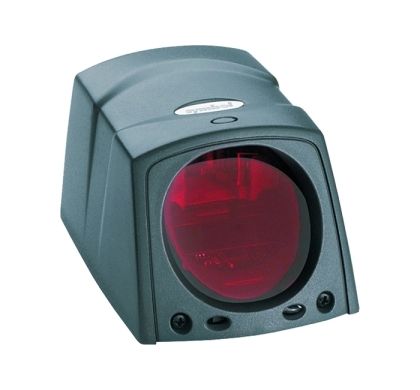

ZEBRA MiniScan MS1207 In-counter Barcode Scanner - Cable Connectivity

ZEBRA MiniScan MS1207 In-counter Barcode Scanner - Cable Connectivity
MS-1207FZY-I000R

This product has been discontinued by the manufacturer

Please visit

ZEBRA Barcode Scanners

for alternative options.

Description

MiniScan MS1207 Bar Code Reader is compact, durable, industrial fixed mount scanner that is available in fuzzy or wide angle versions for maximum versatility. It is ideal for applications such as diagnostic equipment, medical instruments, kiosks, robotic equipment, lottery terminals and many more. When used as a fixed mount scanner, the modules are ideal for manufacturing, warehousing and shipping, conveyer belts, assembly lines, library systems and countless other applications needing reliable unattended scanning.

Specifications

General Information

Manufacturer:
Zebra Technologies Corporation
Manufacturer Website Address:
http://www.zebra.com
Brand Name:
Zebra
Product Family:
MiniScan
Product Model:
MS1207
Product Name:
MiniScan MS1207 Bar Code Reader
Product Type:
In-counter Barcode Scanner

Technical Information

Connectivity Technology:
  • Cable
Bar Code Dimension:
1D
Bar Code Symbology Supported:
  • UPC/EAN
  • Code 128
  • UCC/EAN 128
  • Code 39
  • Code 93
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Codabar
  • MSI
  • RSS
Light Source:
  • Laser
Image Sensor:
Linear
Scan Rate:
36 scan/s
Depth of Field:
  • 101.60 mm - 1905 mm@1.40 mm
  • 55.88 mm - 1695.45 mm@1.02 mm
  • 25.40 mm - 692.15 mm@0.51 mm - 25% MRD
  • 25.40 mm - 863.60 mm@0.51 mm - 80% MRD
  • 55.88 mm - 654.05 mm@0.33 mm - 100% UPC
  • 76.20 mm - 317.50 mm@0.19 mm
  • 82.55 mm - 177.80 mm@0.13 mm
Scan Pattern:
Linear

Interfaces/Ports

Host Interface:
  • Serial

Physical Characteristics

Height:
40.6 mm
Width:
57.9 mm
Depth:
74.7 mm
Weight (Approximate):
126.2 g

Miscellaneous

Additional Information:
  • Supported Interfaces:
    • RS 232
    • USB
Certifications & Standards:
Laser Classification:
  • CDRH Class II
  • IEC Class 2
Electrical Safety:
  • UL1950
  • CA C22-2 NO950 ENG60950/IEC950
EMI/RFI:
  • FCC Part 15 Class B
  • ICES-003 Class B European Union EMC Directive
  • Australian SMA
Environmental:
  • RoHS
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS

Warranty

Standard Warranty:
3 Year
