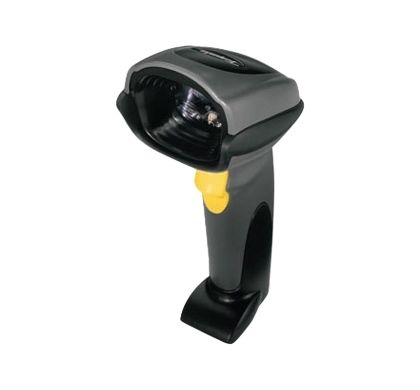

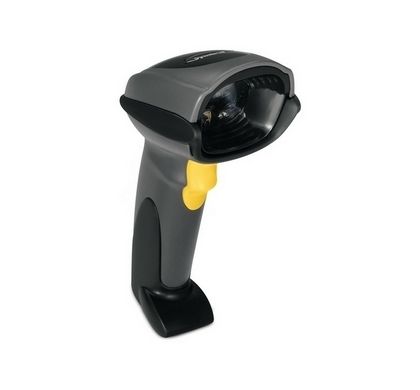

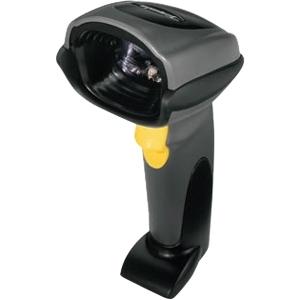

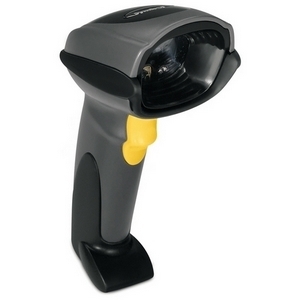

ZEBRA DS6708 Handheld Barcode Scanner - Cable Connectivity - White

ZEBRA DS6708 Handheld Barcode Scanner - Cable Connectivity - White
DS6708-SR20001ZZR

This product has been discontinued by the manufacturer

Please visit

ZEBRA Barcode Scanners

for alternative options.

Description

The versatile DS6708 Bar Code Reader from Symbol Technologies delivers the functionality of a 1D and 2D Bar Code Reader, digital camera and document scanner in a single device. Designed to meet a wide variety of business needs across a variety of industries, the DS6708 enhances employee productivity and streamlines business processes in retail, health-care, government, manufacturing and more by combining an onboard 1.3 mega-pixel camera with high performance scanning features and superior digital imaging technology.

Specifications

General Information

Manufacturer:
Zebra Technologies Corporation
Manufacturer Website Address:
http://www.zebra.com
Brand Name:
Zebra
Product Model:
DS6708
Product Name:
DS6708 Bar Code Reader
Product Type:
Handheld Barcode Scanner

Technical Information

Connectivity Technology:
  • Cable
Bar Code Dimension:
  • 2D
  • 1D
Bar Code Symbology Supported:
  • UPC/EAN with Supplementals
  • UPC/EAN
  • Code 39
  • Code 39 Full ASCII
  • Trioptic Code 39
  • RSS Variants
  • UCC/EAN 128
  • Code 128
  • Code 128 Full ASCII
  • Code 93
  • Codabar (NW1)
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • MSI
  • Code ll
  • IATA
  • Bookland EAN
  • Code 32
  • PDF 417
  • Macro Micro PDF-417
  • Composite Codes
  • U.S. Postnet
  • U.S. Planet
  • U.K. Postal
  • Japanese Post
  • Australian Post
  • Dutch Postal
  • MaxiCode
  • DataMatrix
  • QR Code
Image Sensor:
Imager
Maximum Scan Resolution:
0.13 mm
Depth of Field:
  • 27.94 mm - 190.50 mm@0.25 mm - Data Matrix
  • 22.86 mm - 177.80 mm@0.25 mm - PDF417
  • 12.70 mm - 386.08 mm@0.51 mm - Code 39
  • 12.70 mm - 246.38 mm@0.33 mm - 100% UPC/EAN
  • 27.94 mm - 165.10 mm@0.13 mm - Code 39
Scan Pattern:
Omni-directional

Interfaces/Ports

Host Interface:
  • Multi-interface

Power Description

Input Voltage:
  • 5 V DC

Physical Characteristics

Colour:
  • White
Height:
166.4 mm
Width:
71.6 mm
Depth:
119.9 mm
Weight (Approximate):
181.4 g

Miscellaneous

Additional Information:
  • Supported Interfaces:
    • Serial
    • USB
    • IBM 468X/469X
    • Keyboard Wedge
Certifications & Standards:
Electrical Safety:
  • UL6950-1
  • CSA C22.2 No. 60950-1
  • EN60950-1 / IEC60950-1
Laser Safety:
  • EN60825-1:1994 +A1: 2002 +A2 :2001
  • IEC60825-1
  • IEC60825-21CFR1040.10
  • IEC6082521-CFR1040.11
  • CDRH Class II
  • IEC Class 2
EMI/RFI:
  • FCC Part 15 Class B
  • ICES-003 Class B
  • CISPR 22
  • CISPR 24
Medical electrical equipment:
  • EN60001-1-2: 2002
Environmental:
  • RoHS directive 2002/95/EEC
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS

Warranty

Standard Warranty:
5 Year
