HP Handheld Barcode Scanner - Cable Connectivity - Black

HP Handheld Barcode Scanner - Cable Connectivity - Black
BW868AA

This product has been discontinued by the manufacturer

Please visit

HP Barcode Scanners

for alternative options.

Description

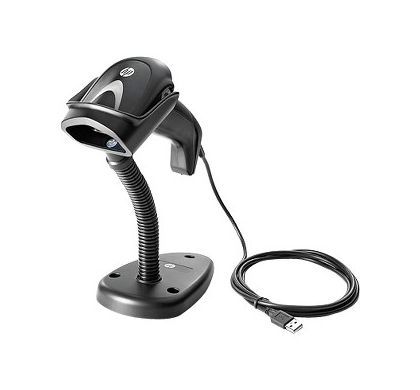

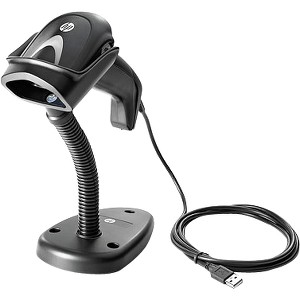

Used in conjunction with HP Point of Sale System rp5700, rp3000 and ap5000, HP's Imaging Barcode Scanner is an extended functionality scanner featuring 1D and 2D omnidirectional barcode scanning, mobile device scanning and the ability to capture images.

Specifications

General Information

Manufacturer:
HP Inc.
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Name:
Handheld Bar Code Reader
Product Type:
Handheld Barcode Scanner

Technical Information

Connectivity Technology:
  • Cable
Bar Code Dimension:
  • 1D
  • 2D
Bar Code Symbology Supported:
1D/2D:
  • CODE 128
  • CODE 39
  • CODE 93
  • DataMatrix
  • EAN-13
  • EAN-8
  • GS1 DataBar Expanded
  • GS1 Databar Omnidirectional
  • PDF417
  • QR Codes
  • UPC-A
  • UPC-E
  • ABC CODABAR
  • Aztec
  • China Sensible Code
  • Codabar
  • CODE 11
  • CODE 32
  • CODE 39 CIP
  • CODE 39 Trioptic
  • Danish PPT
  • GS1 DataBar Limited
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • ISBT 128
  • La Poste
  • Maxicode
  • Micro PDF417
  • MSI
  • Plessey
Postal Codes:
  • Australian Post
  • Japanese Post
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code
  • Intelligent Mail Barcode
  • Sweden Post
  • Portugal Post
Light Source:
  • LED
Image Sensor:
Imager
Depth of Field:
  • 40.64 mm - 190.50 mm@0.13 mm - CODE 39
  • 10.16 mm - 299.72 mm@0.25 mm - CODE 39
  • 449.58 mm@0.51 mm - CODE 39
  • 15.24 mm - 398.78 mm@0.33 mm - EAN/UPC
  • 12.70 mm - 269.24 mm@0.19 mm - EAN/UPC
  • 279.40 mm - 149.86 mm@0.17 mm - PDF-417
  • 5.08 mm - 218.44 mm@0.25 mm - PDF-417
  • 15.24 mm - 340.36 mm@0.38 mm - PDF-417
  • 20.32 mm - 160.02 mm@0.25 mm - DataMatrix
  • 0 nm - 236.22 mm@0.38 mm - DataMatrix
  • 30.48 mm - 124.46 mm@0.25 mm - QR Code
  • 0 nm - 190.50 mm@0.38 mm - QR Code
Scan Pattern:
Omni-directional

Interfaces/Ports

Host Interface:
  • USB

Physical Characteristics

Colour:
  • Black
Height:
180.3 mm
Width:
124.5 mm
Depth:
71.1 mm
Weight (Approximate):
226.8 g

Miscellaneous

Additional Information:
  • USB Cable separate
Platform Supported:
  • PC
