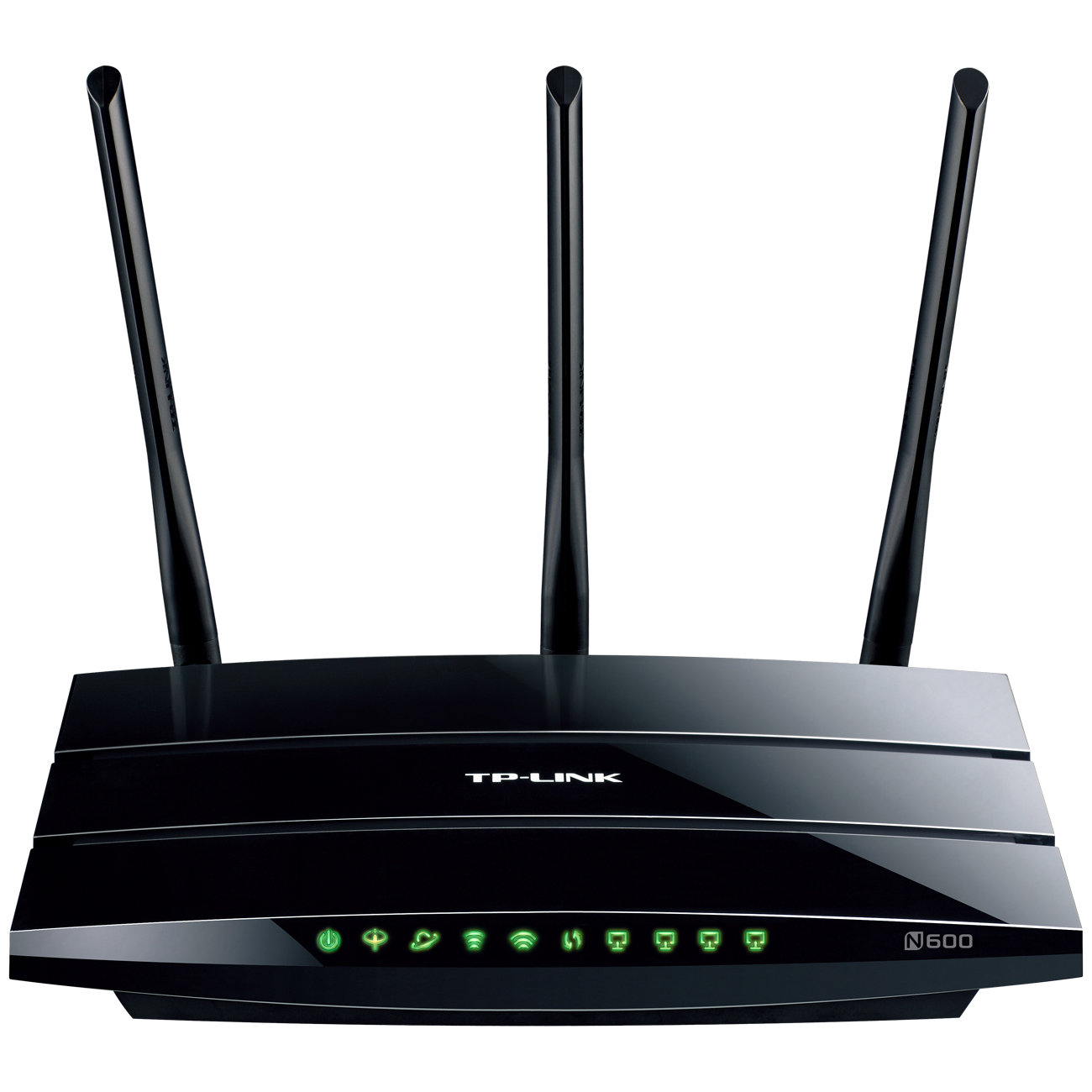

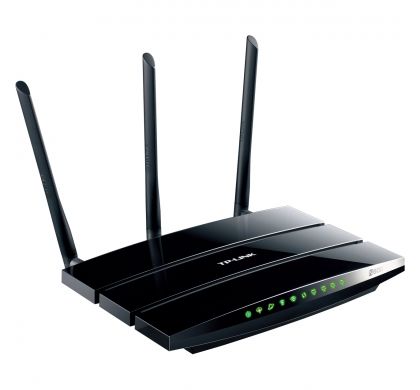

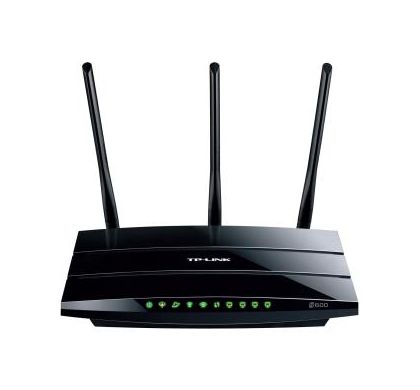

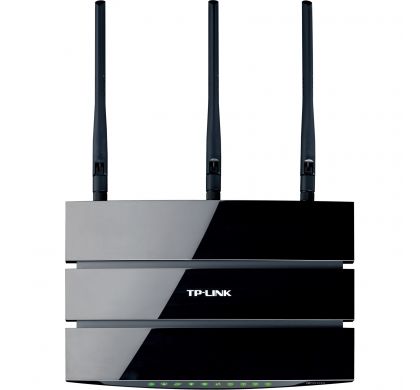

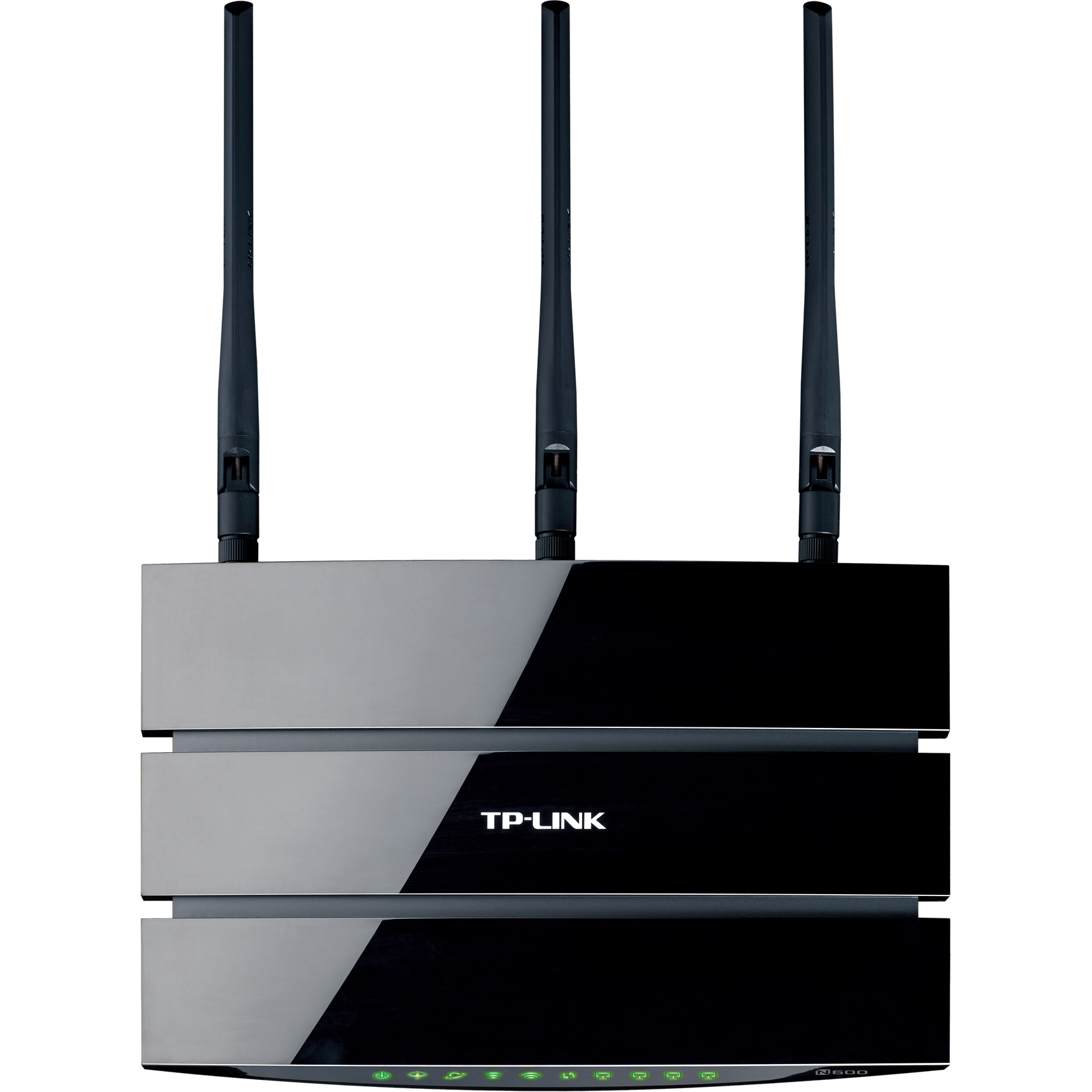

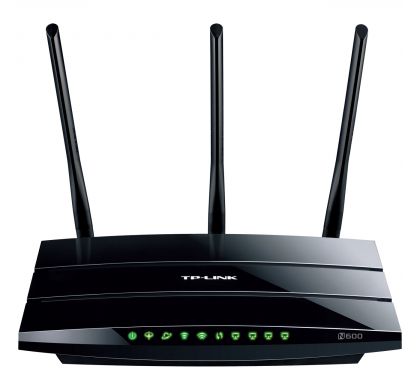

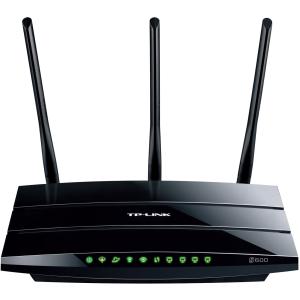

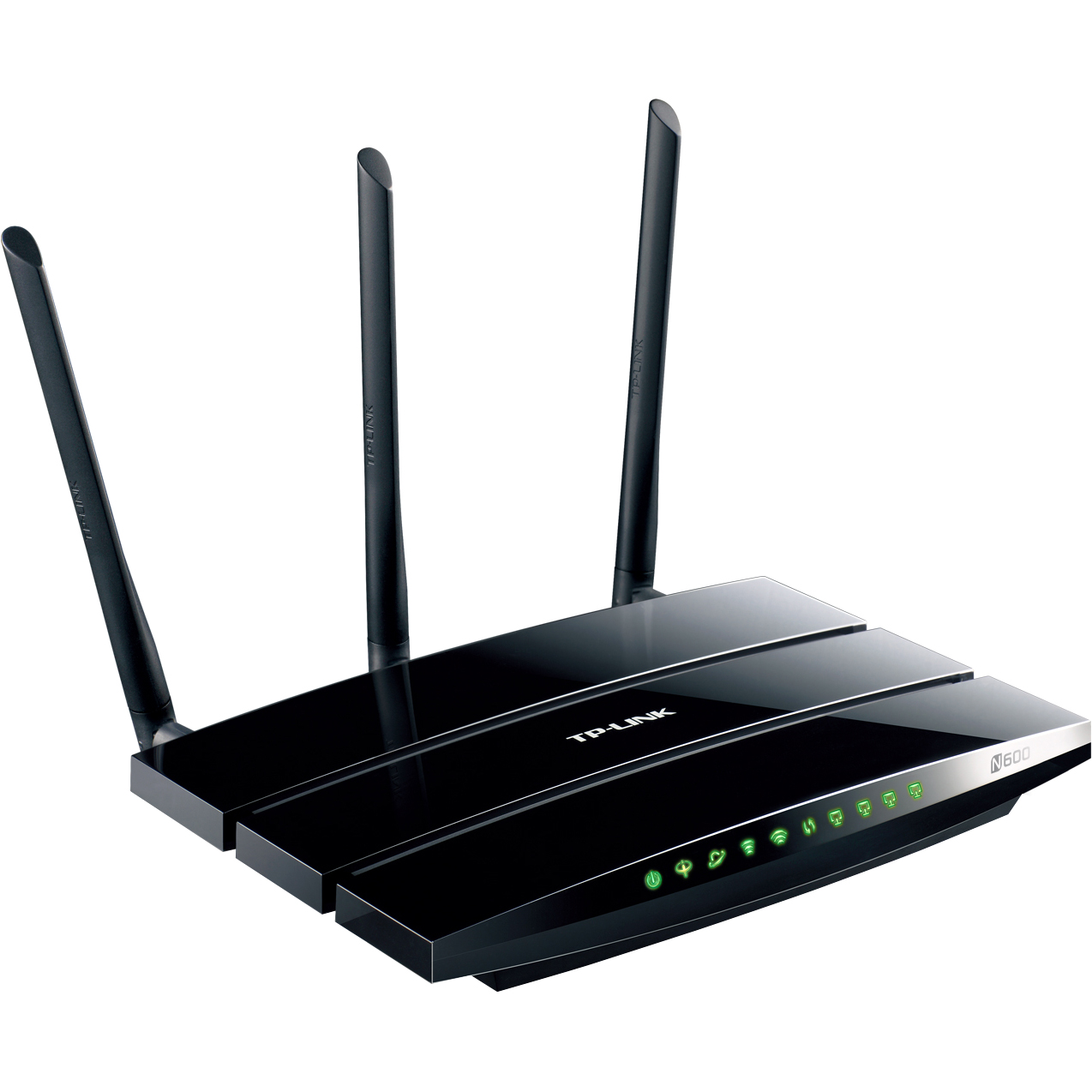

TP-LINK TD-W8980 IEEE 802.11n Modem/Wireless Router

TD-W8980

This product has been discontinued by the manufacturer

Please visit

TP-LINK Wireless Routers

for alternative options.

Description

What This Product Does

TP-LINK's N600 Wireless Dual Band Gigabit ADSL2+ Modem Router TD-W8980 is an incredibly robust all-in-one device combining the crystal clear 5GHz band and the traditional 2.4GHz band. With 600Mbps of total bandwidth, simple tasks like sending e-mails can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band - all at the same time. Its all gigabit ports allow users to access high-speed internet connections and share them wirelessly at blazing 300Mbps wireless speeds or by using one of its 4 gigabit LAN ports. With 2 multifunctional USB ports, users can share printers, files and media across the local network or the internet. What's more, this All-in-one device allows for two different connection types: ADSL, or Ethernet WAN, giving users the flexibility to access the Internet whichever method is most convenient.

Specifications

General Information

Manufacturer:
TP-LINK Technologies Co., Ltd
Manufacturer Website Address:
http://www.tp-link.com.au
Brand Name:
TP-LINK
Product Model:
TD-W8980
Product Name:
N600 Wireless Dual Band Gigabit ADSL2+ Modem Router
Product Type:
Modem/Wireless Router

Wireless Specifications

Broadband Transmission Technology:
ADSL2+
Wi-Fi Standard:
  • IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Maximum Frequency:
2.40 GHz
UNII Maximum Frequency:
5 GHz
Total Number of Antennas:
5
Antenna Gain:
  • 5 dBi
Antenna Connector:
RP-SMA Connector
Wireless Transmission Speed:
600 Mbit/s
Wireless Security:
    • 64/128-bit WEP
    • WPA
    • WPA2
    • WPA-PSK
    • WPA2-PSK
    • Wireless MAC Filtering
Features:
  • Quality of Service (QoS)

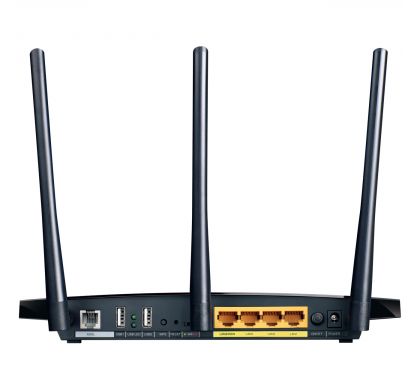

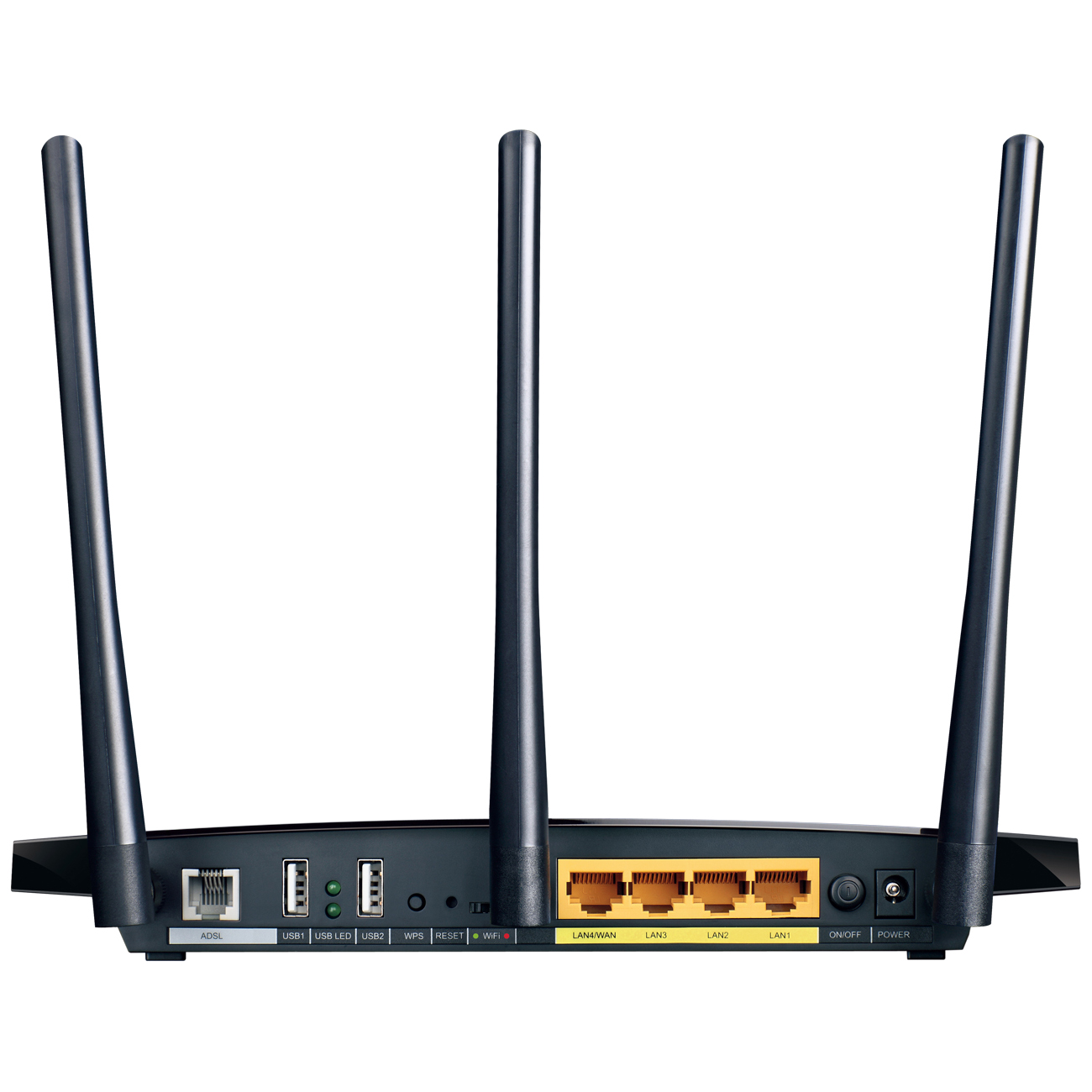

Interfaces/Ports

Number of Network (RJ-45) Ports:
4
Network (RJ-11):
No
VGA:
No
Serial:
No
USB:
Yes
Powerline:
No
PoE Port:
No
Management Port:
No
Number of Broadband (RJ-11) Ports:
1

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
VPN Supported:
Yes

Management & Protocols

Management:
    • DHCP
    • Web-based Management
    • Command Line Interface (CLI)
    • Telnet
    • TR-069
    • SNMP v1/2C
Security Features:
  • PPTP, L2TP, IPSec Pass-through
  • Parent Control
  • NAT
  • SPI
  • MAC Filtering
  • IP Filtering
  • URL Filtering
  • DES
  • 3DES
  • 128/192/256-bit AES
  • MD5
  • SHA-1
  • IKE
  • Dead Peer Detection (DPD)
  • Perfect Forward Secrecy (PFS)

Power Description

Input Voltage:
  • 12 V DC
Power Source:
  • AC Adapter

Physical Characteristics

Form Factor:
Desktop
Height:
33 mm
Width:
243.8 mm
Depth:
162.6 mm

Miscellaneous

Package Contents:
  • N600 Wireless Dual Band Gigabit ADSL2+ Modem Router
  • External Splitter
  • RJ-11 Telephone Line
  • RJ-45 Ethernet Cable
  • Quick Installation Guide
  • Resource CD
  • Power Adapter
System Requirements:
Operating Systems:
  • Windows 7
  • Windows Vista
  • Windows XP
  • Windows 2000
  • Windows 98SE
  • Mac OS X
  • Linux
  • UNIX
  • Netware
Certifications & Standards:
  • CE
  • FCC
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS
