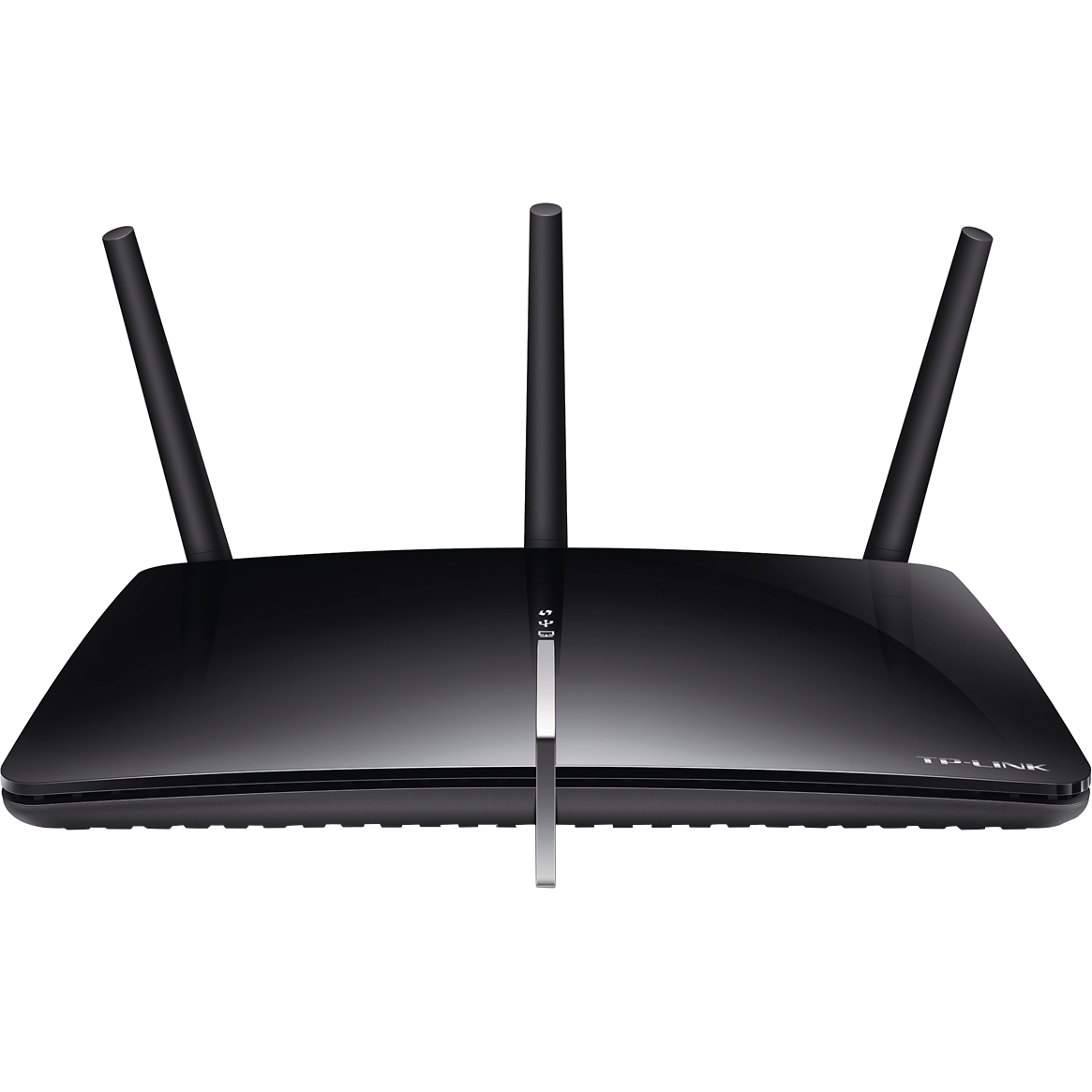

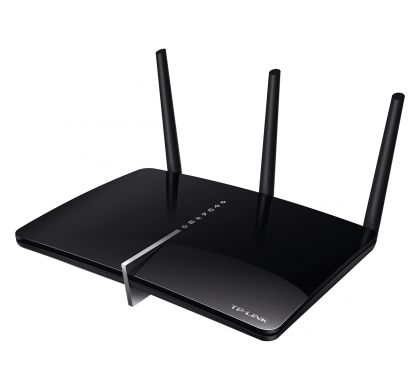

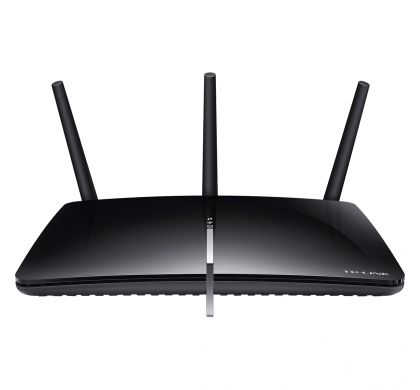

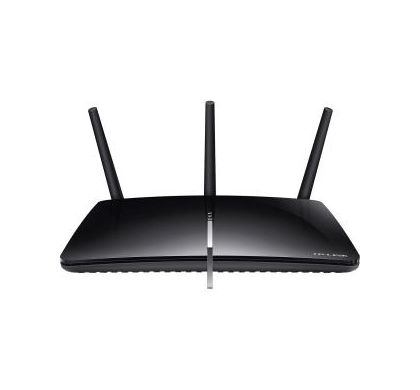

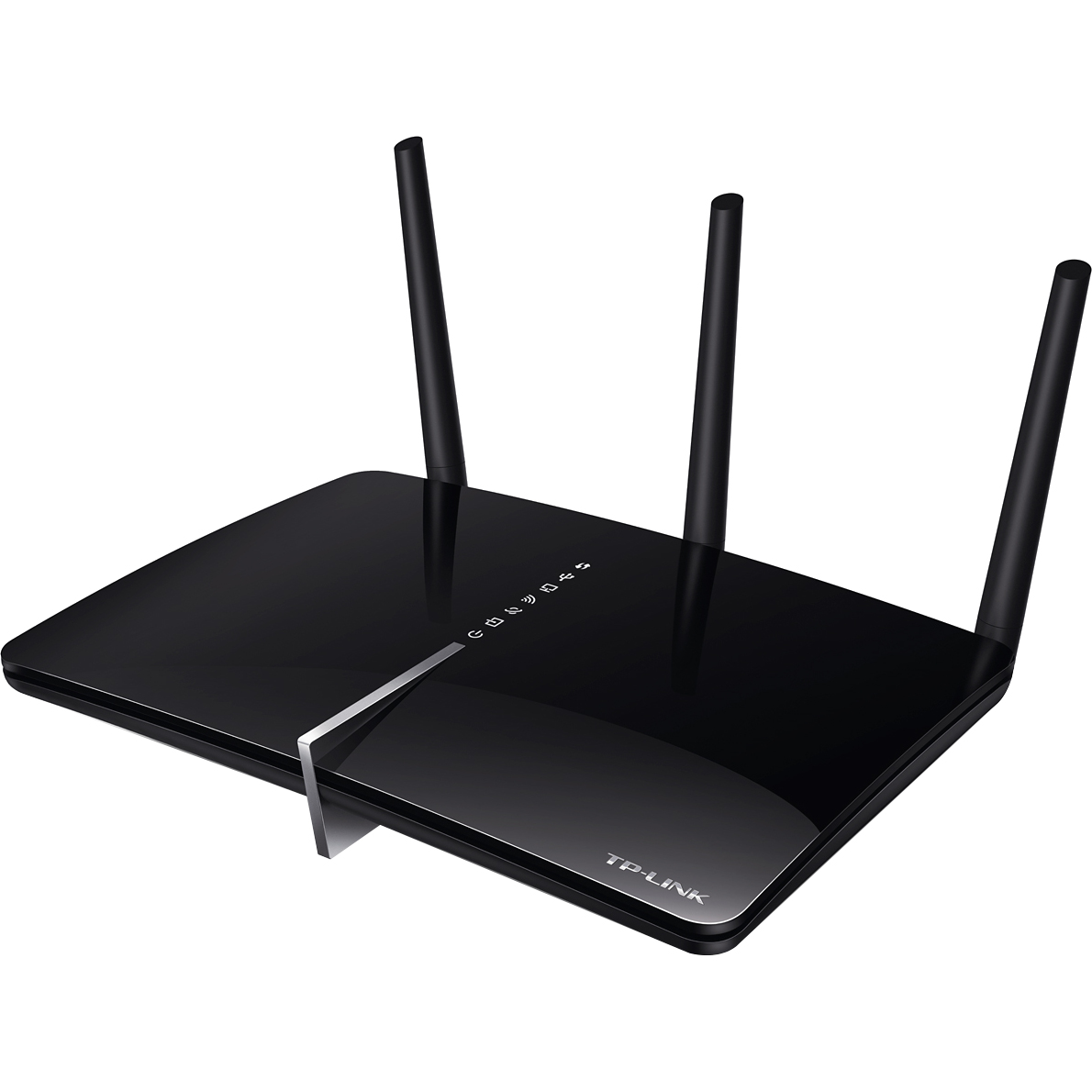

TP-LINK ARCHER D7 IEEE 802.11ac Ethernet, ADSL2+ Modem/Wireless Router

TP-LINK ARCHER D7 IEEE 802.11ac Ethernet, ADSL2+ Modem/Wireless Router
ARCHER D7

This product has been discontinued by the manufacturer

Please visit

TP-LINK Wireless Routers

for alternative options.

Description

What This Product Does

TP-LINK's Archer D7 AC1750 Wireless Dual Band Gigabit ADSL2+ Modem Router is a combined wired/wireless network connection device with integrated wireless router and ADSL modem, reducing hassle of configuration and saving space.

Coming with the next generation Wi-Fi standard - 802.11ac, 3 times faster than wireless N speeds, Archer D7 delivers a combined wireless data transfer rate of up to 1.75Gbps. With 1300Mbps wireless speeds over the crystal clear 5GHz band and 450Mbps over the 2.4GHz band, the Archer D7 is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.

Specifications

General Information

Manufacturer:
TP-LINK Technologies Co., Ltd
Manufacturer Website Address:
http://www.tp-link.com.au
Brand Name:
TP-LINK
Product Model:
ARCHER D7
Product Name:
AC1750 Wireless Dual Band Gigabit ADSL2+ Modem Router
Product Type:
Modem/Wireless Router

Wireless Specifications

Broadband Transmission Technology:
  • Ethernet
  • ADSL2+
Wi-Fi Standard:
  • IEEE 802.11ac
ISM Band:
Yes
UNII Band:
Yes
ISM Maximum Frequency:
2.40 GHz
UNII Maximum Frequency:
5 GHz
Total Number of Antennas:
3
Number of External Antennas:
3
Antenna Gain:
  • 3 dBi
Antenna Type:
  • Omnidirectional Antenna
Antenna Connector:
RP-SMA Connector
Wireless Transmission Speed:
1300 Mbit/s
Wireless Security:
    • WPS
    • 64/128-bit WEP
    • WPA
    • WPA2
    • WPA-PSK
    • WPA2-PSK
    • Wireless MAC Filtering
Features:
  • Quality of Service (QoS)

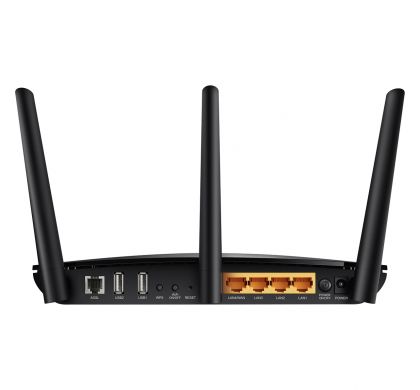

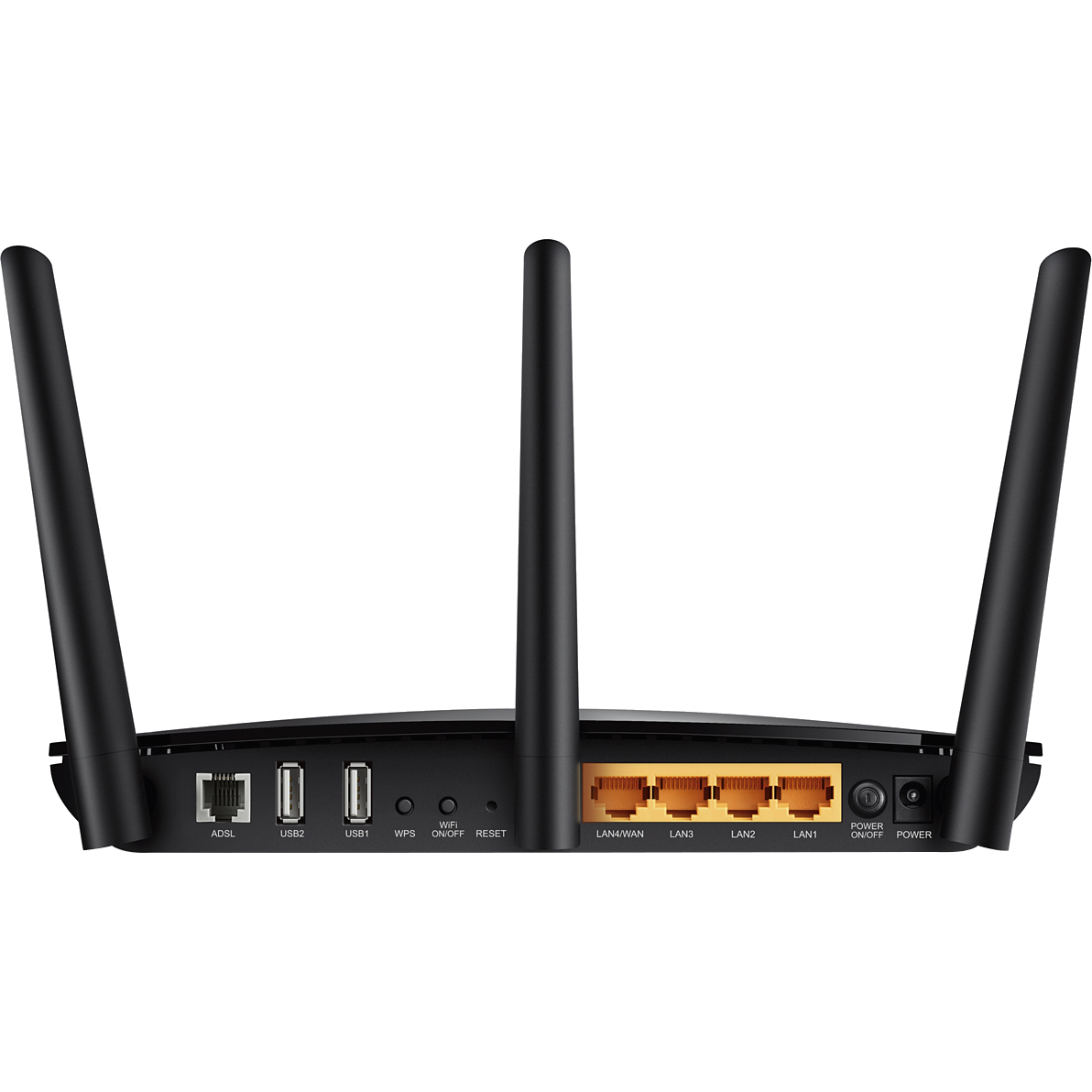

Interfaces/Ports

Number of Network (RJ-45) Ports:
3
Network (RJ-11):
No
VGA:
No
Serial:
No
USB:
Yes
Powerline:
No
PoE Port:
No
Management Port:
No
Number of Broadband (RJ-45) Ports:
1
Number of Broadband (RJ-11) Ports:
1

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
VPN Supported:
Yes

Management & Protocols

Management:
    • Web-based Management
    • Remote Management
    • Command Line Interface (CLI)
    • SSL for TR-069
    • SNMP v1/2c
Security Features:
  • Parental Control
  • Network Address Translation (NAT)
  • PPTP
  • L2TP
  • DMZ
  • Access Control
  • MAC/IP/URL Filtering
  • Denial of Service (DoS)
  • SYN Flooding
  • Ping of Death
  • IP and MAC Address Binding

Power Description

Input Voltage:
  • 12 V DC
Power Source:
  • AC Adapter

Physical Characteristics

Form Factor:
Desktop
Height:
38.1 mm
Width:
228.6 mm
Depth:
160 mm

Miscellaneous

Package Contents:
  • AC1750 Wireless Dual Band Gigabit ADSL2+ Modem Router
  • External Splitter
  • RJ-11 Telephone Cable
  • RJ-45 Ethernet Cable
  • Quick Installation Guide
  • Resource CD
  • Power Adapter
System Requirements:
Operating Systems:
  • Windows 7
  • Windows Vista
  • Windows XP
  • Mac OS X
Certifications & Standards:
  • CE
  • FCC
  • RCM
IEEE Standards:
  • 802.3
  • 802.3u
  • 802.3ab
  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
  • 802.11ac
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS
