NETCOMM NTC-3000-02 Wireless Router - 3G - 1 x Network Port - USB Rail-mountable, Wall Mountable
Description

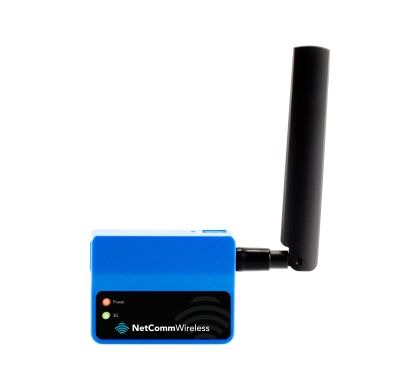

3G Serial Modem
The small but rugged 3G Serial Modem provides cost-effective 3G connectivity for M2M applications in areas such as smart metering, security, farming, manufacturing and transport. Ideal for SCADA (Supervisory Control and Data Acquisition) use, the modem lets you remotely monitor, collect and control equipment data from any location on virtually any device. Designed for reliable performance and universal installation, the 3G Serial Modem comes equipped with a lockable SIM tray and operates in extreme -40 to 85°C temperatures with a wide input voltage range to support diverse environments and applications.
The small but rugged 3G Serial Modem provides cost-effective 3G connectivity for M2M applications in areas such as smart metering, security, farming, manufacturing and transport. Ideal for SCADA (Supervisory Control and Data Acquisition) use, the modem lets you remotely monitor, collect and control equipment data from any location on virtually any device. Designed for reliable performance and universal installation, the 3G Serial Modem comes equipped with a lockable SIM tray and operates in extreme -40 to 85°C temperatures with a wide input voltage range to support diverse environments and applications.
Specifications
General Information
Manufacturer:
NetComm Wireless Limited
Manufacturer Website Address:
http://www.netcommwireless.com
Brand Name:
Netcomm
Product Series:
NTC-3000
Product Model:
NTC-3000-02
Product Name:
3G Serial Modem
Product Type:
Wireless Router
Wireless Specifications
Broadband Transmission Technology:
Cellular
ISM Band:
No
UNII Band:
No
Cellular Generation:
3G
Cellular Network Supported:
- GSM 1800
- GSM 1900
- GSM 850
- GSM 900
- WCDMA 2100
- WCDMA 900
Cellular Data Connectivity Technology:
- EDGE
- UMTS
- GPRS
Antenna Connector:
SMA Connector
Interfaces/Ports
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
VGA:
No
Serial:
No
USB:
Yes
Powerline:
No
PoE Port:
No
Management Port:
No
I/O Expansions
Expansion Slots:
- SIM Card
Power Description
Input Voltage:
- 12 V DC
Power Source:
- AC Adapter
- USB
- PoE
Physical Characteristics
Form Factor:
- Wall Mountable
- Rail-mountable
Height:
57 mm
Width:
74 mm
Depth:
24 mm
Weight (Approximate):
84 g
Miscellaneous
Package Contents:
- 3G Serial Modem
- 1 x Printed QSG
Certifications & Standards:
- A-Tick
- CE
