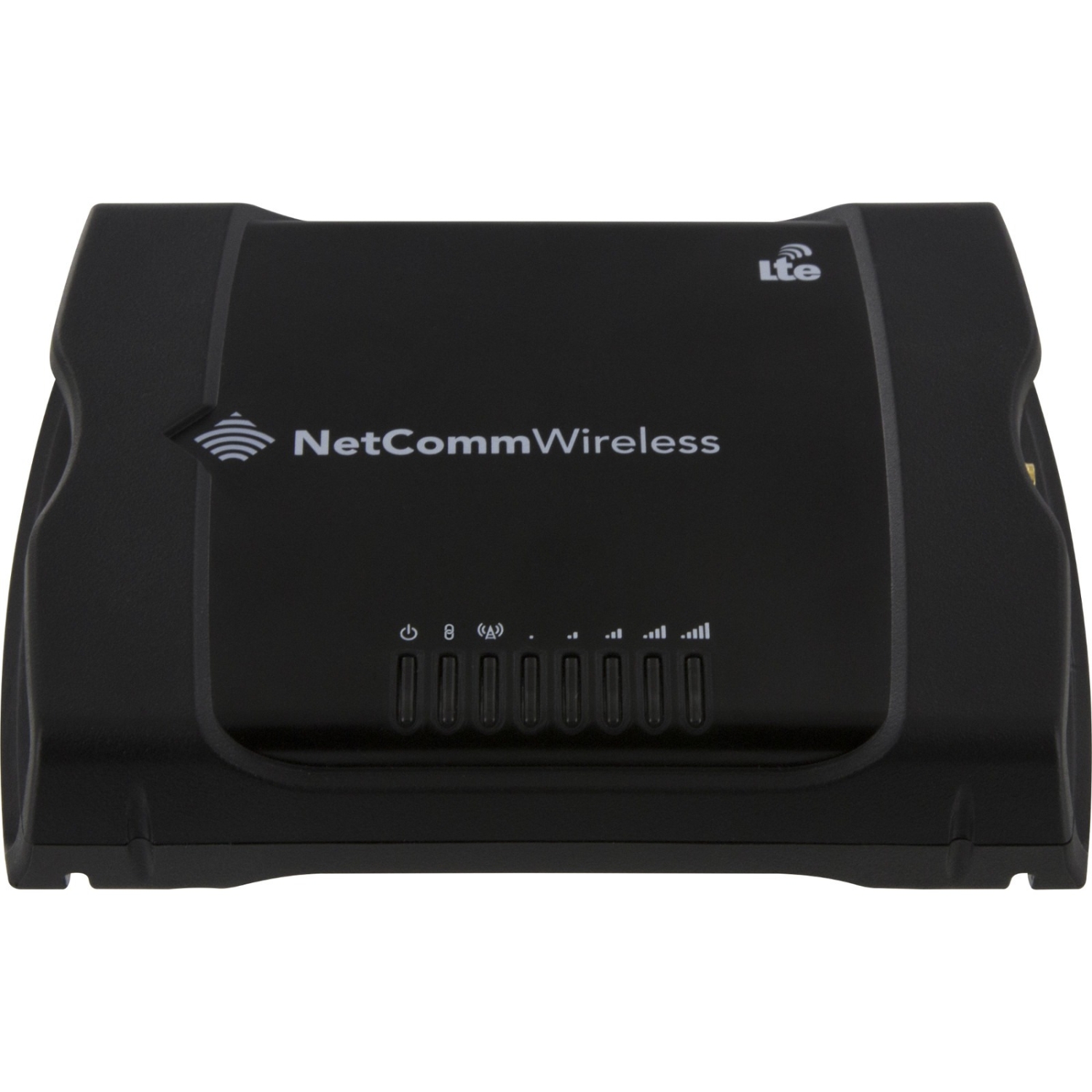

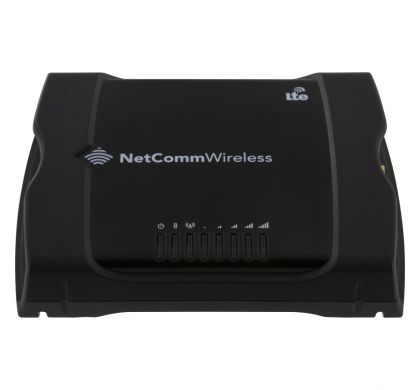

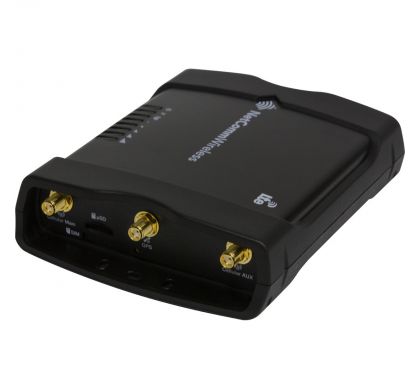

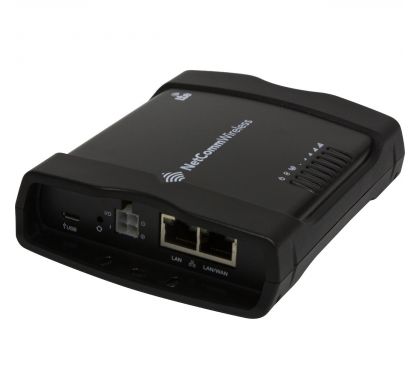

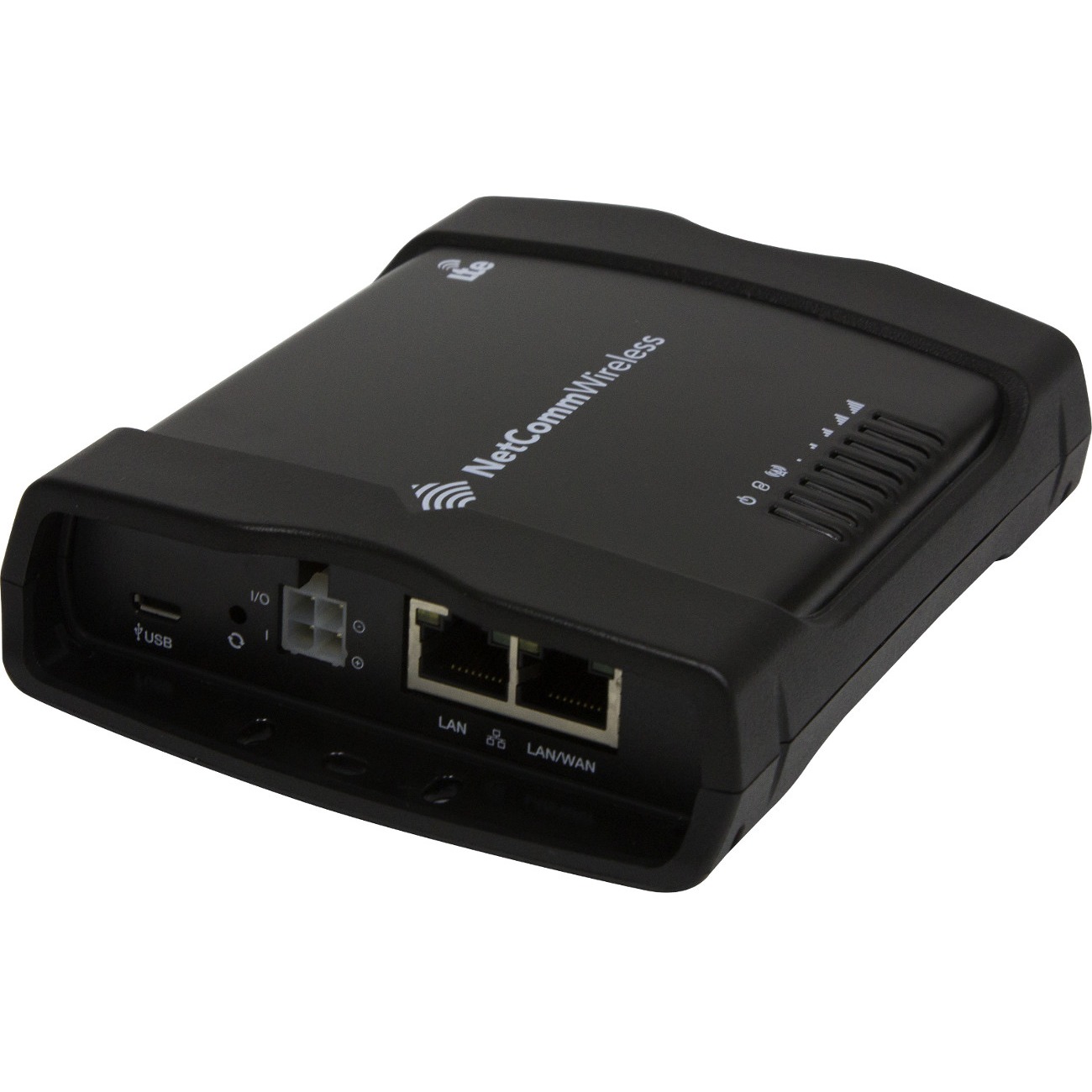

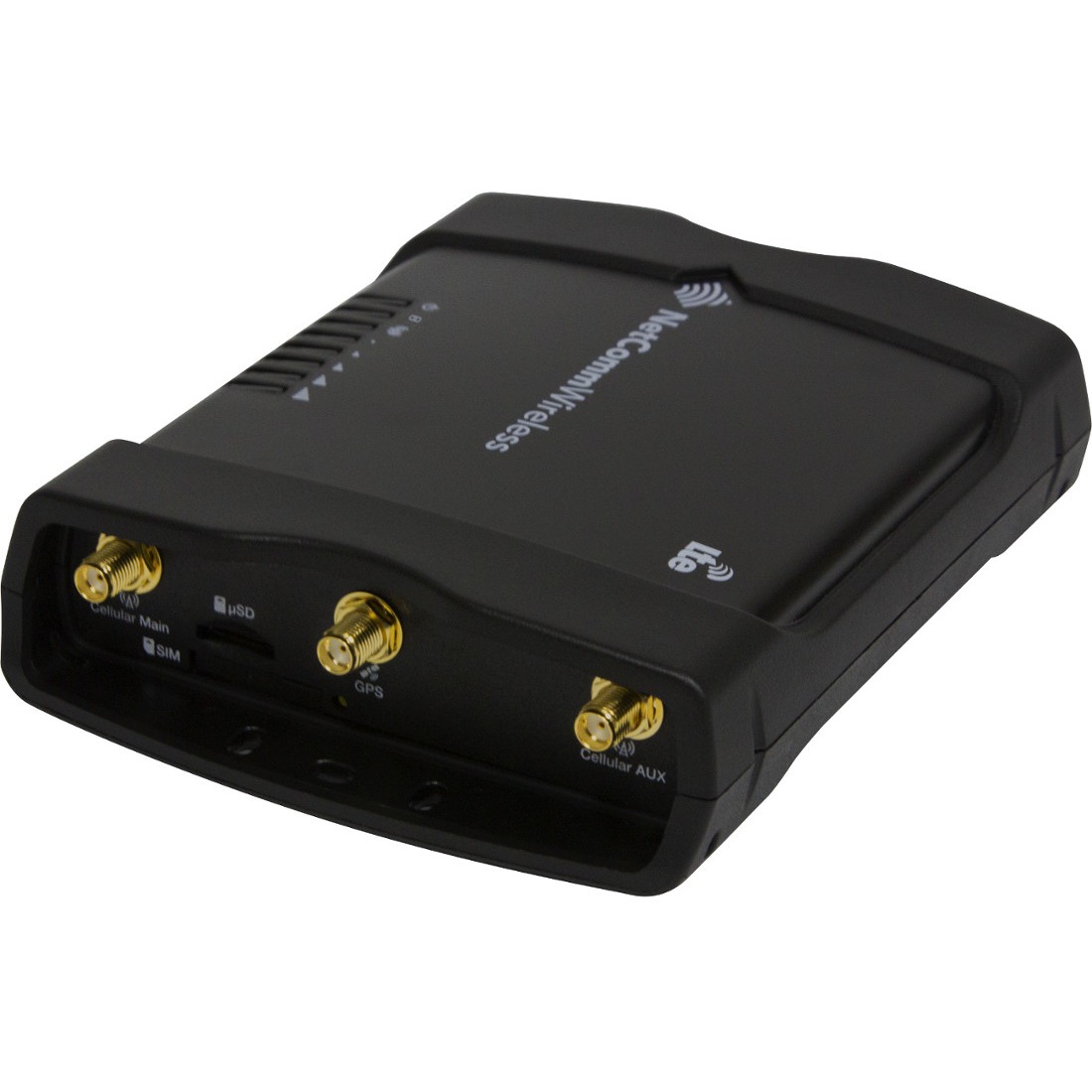

NETCOMM NTC-140-02 IEEE 802.11n Cellular Modem/Wireless Router

NTC-140-02
Available
Please contact us for pricing

Description

FEATURE RICH INDUSTRIAL IOT/M2M ROUTER

The NetComm Wireless 4G M2M Router (NTC-140) is built for industrial applications. Feature rich and user friendly, the powerful router enables highly complex M2M and industrial IoT deployments.

It features dual 4G antennas for improved cellular performance, two Gigabit Ethernet ports, a USB port and a MicroSD slot for added storage flexibility.

The device is ideal for mobile asset monitoring, supporting vehicle voltage power supply, an Ignition sensing port and built-in stand-alone GPS.

CARRIER GRADE MANAGEMENT

The NTC-140 is all about simplicity. It has 8 tri-colour LED indicators and a user friendly web interface, making onsite setup and ongoing remote management simple, easy and cost-effective

The NTC-140 supports a wide range of telecommunication standards based remote management protocols such as LWM2M, TR-069 and SNMP to allow quick and easy integration with a wide range of remote management platforms

Extensive support for managing the device via SMS allows enterprises to communicate, get status reports, change settings or even execute commands using an SMS gateway.

The built-in event notification engine, which sends alarms and notifications via email or SMS, allows an automated layer of self-monitoring to ensure a quick response to events requiring human intervention.

INDUSTRIAL GRADE DESIGN

Designed from the ground up with harsh industrial and automotive environments in mind, the NTC-140 features a state-of-the-art enclosure made from a composite of hard wearing, shock absorbing and environmentally stable industrial materials.

Electrical components have been carefully selected to allow the NTC-140 to operate at extreme temperatures.

Most importantly NetComm Wireless has done extensive environmental tests to ensure the device continues to operate under extreme conditions of temperature, shock and vibration.

POWERFUL IOT EDGE PROCESSOR

The NTC-140 runs an open, embedded Linux based NetComm OS. Boasting a powerful processor and spare memory allows IOT developers to run custom applications developed using the NetComm Wireless Software development Kit (SDK). Edge processing allows new and innovative IOT solutions such as saving cellular bandwidth though intelligent data filtering or speeding up control processes by processing data locally.

Specifications

General Information

Manufacturer:
NetComm Wireless Limited
Manufacturer Website Address:
http://www.netcommwireless.com
Brand Name:
Netcomm
Product Model:
NTC-140-02
Product Name:
NTC-140-02 Modem/Wireless Router
Product Type:
Modem/Wireless Router

Wireless Specifications

Broadband Transmission Technology:
Cellular
Wi-Fi Standard:
  • IEEE 802.11n
ISM Band:
Yes
ISM Maximum Frequency:
2.40 GHz
Cellular Generation:
4G
Cellular Network Supported:
  • GSM 1900
  • GSM 1800
  • GSM 900
  • GSM 850
  • WCDMA 900
  • WCDMA 850
  • WCDMA 1900
  • WCDMA 2100
  • LTE 800
  • LTE 900
  • LTE 2600
  • LTE 1800
  • LTE 2100
Cellular Data Connectivity Technology:
  • EDGE
  • GPRS
  • HSPA+
  • HSUPA
  • HSDPA
  • UMTS
  • LTE
Total Number of Antennas:
3
Number of External Antennas:
3
Wireless Transmission Speed:
300 Mbit/s

Interfaces/Ports

Number of Network (RJ-45) Ports:
2
USB:
Yes
PoE Port:
No

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet
VPN Supported:
Yes

Physical Characteristics

Form Factor:
  • Wall Mountable
  • Rail-mountable
Height:
34 mm
Width:
143 mm
Depth:
107 mm

Miscellaneous

Package Contents:
  • NTC-140-02 Modem/Wireless Router
  • Plastic Bracket
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS
  • WEEE
