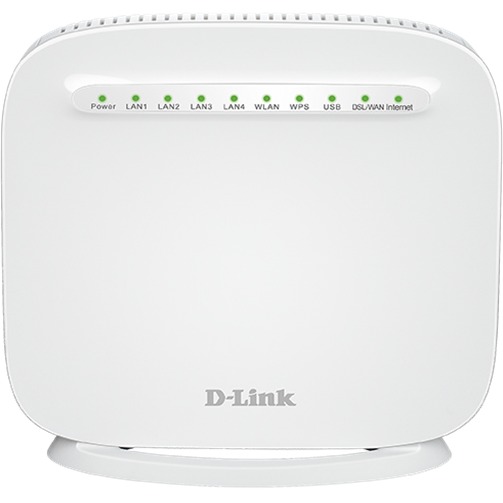

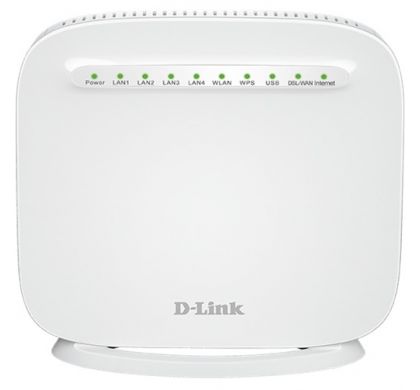

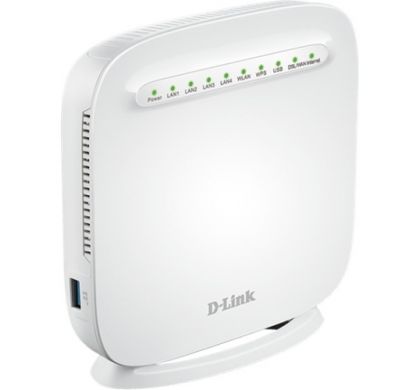

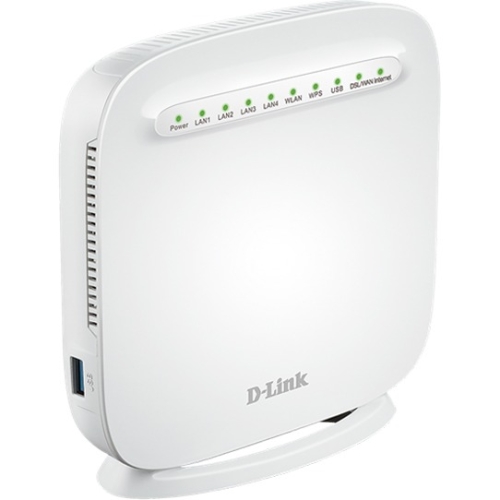

D-LINK DSL-G225 IEEE 802.11n Ethernet, VDSL2, ADSL2+ Modem/Wireless Router
This product has been discontinued by the manufacturer
Please visit
D-LINK Wireless Routersfor alternative options.
Description

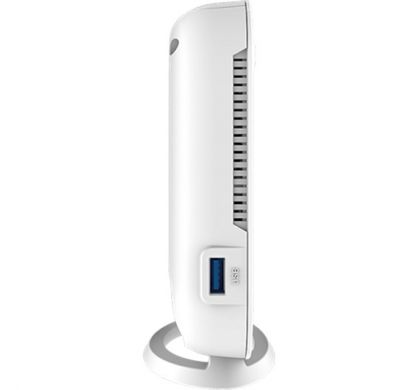

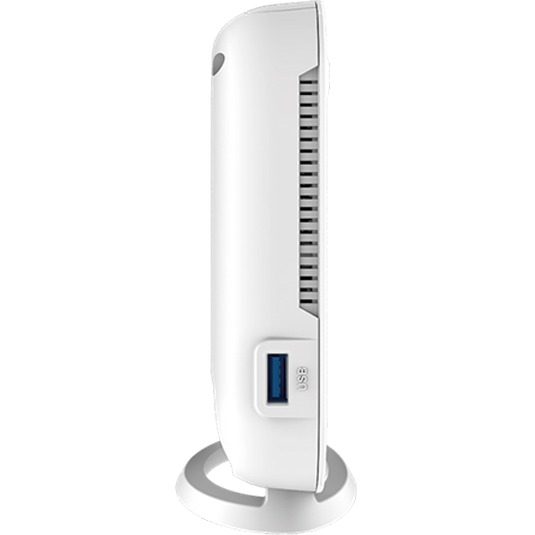

USB Port
The router is equipped with a USB port for connecting a USB modem, which can be used to establish connection to the Internet. In addition, to the USB port of the router you can connect a USB storage device, which will be used as a network drive, or a printer.

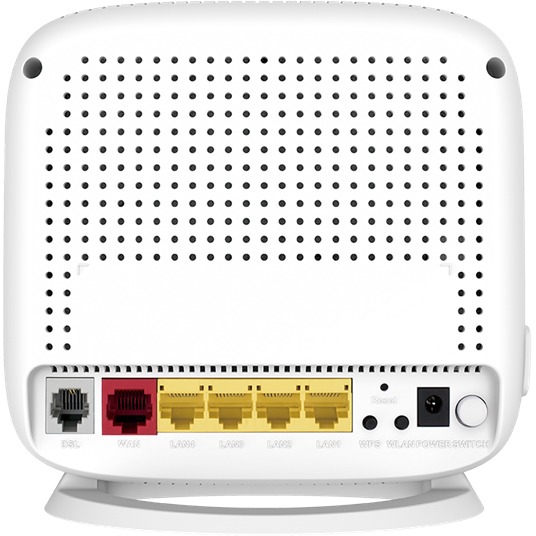

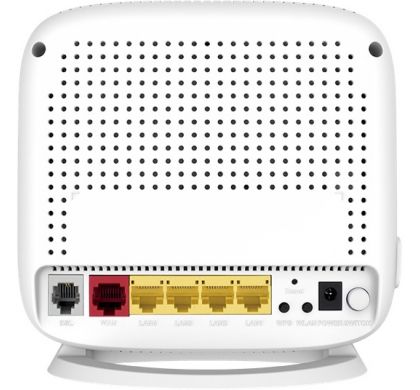

VDSL Port, 4-port Switch, and Gigabit Ethernet WAN Port
The router is equipped with a VDSL port to connect to a high-speed VDSL line. The built-in 4-port switch enables you to connect Ethernet-enabled computers, game consoles, and other devices to your network. In addition, Gigabit Ethernet WAN port enables you to connect the device to a high-speed Ethernet line.
Wireless Interface
You are able to quickly create a wireless network at home or in your office, which lets your relatives or employees connect to your wireless network virtually anywhere (within the operational range of your wireless network). The router can operate as a base station for connecting wireless devices of the standards 802.11b, 802.11g, and 802.11n.
The router supports multiple functions for the wireless interface: several security standards (WEP, WPA/WPA2), MAC address filtering, and the WPS function.
In addition, the device is equipped with a button for switching the Wi-Fi network off/on. If needed, for example, when you leave home, you can easily switch the router's WLAN by pressing the button, and devices connected to the LAN ports of the router will stay online.
Security
The wireless router DSL-G225 includes a built-in firewall. The advanced security functions minimize threats of hacker attacks, prevent unwanted intrusions to your network, and block access to unwanted websites for users of your LAN.
Easy configuration and update
You can configure the settings of the wireless router DSL-G225 via the user-friendly web-based interface (the interface is available in several languages).
Now you can simply update the firmware: the router itself finds approved firmware on D-Link update server and notifies when ready to install it.
The router is equipped with a USB port for connecting a USB modem, which can be used to establish connection to the Internet. In addition, to the USB port of the router you can connect a USB storage device, which will be used as a network drive, or a printer.
VDSL Port, 4-port Switch, and Gigabit Ethernet WAN Port
The router is equipped with a VDSL port to connect to a high-speed VDSL line. The built-in 4-port switch enables you to connect Ethernet-enabled computers, game consoles, and other devices to your network. In addition, Gigabit Ethernet WAN port enables you to connect the device to a high-speed Ethernet line.
Wireless Interface
You are able to quickly create a wireless network at home or in your office, which lets your relatives or employees connect to your wireless network virtually anywhere (within the operational range of your wireless network). The router can operate as a base station for connecting wireless devices of the standards 802.11b, 802.11g, and 802.11n.
The router supports multiple functions for the wireless interface: several security standards (WEP, WPA/WPA2), MAC address filtering, and the WPS function.
In addition, the device is equipped with a button for switching the Wi-Fi network off/on. If needed, for example, when you leave home, you can easily switch the router's WLAN by pressing the button, and devices connected to the LAN ports of the router will stay online.
Security
The wireless router DSL-G225 includes a built-in firewall. The advanced security functions minimize threats of hacker attacks, prevent unwanted intrusions to your network, and block access to unwanted websites for users of your LAN.
Easy configuration and update
You can configure the settings of the wireless router DSL-G225 via the user-friendly web-based interface (the interface is available in several languages).
Now you can simply update the firmware: the router itself finds approved firmware on D-Link update server and notifies when ready to install it.
Specifications
General Information
Manufacturer:
D-Link Systems, Inc
Manufacturer Website Address:
http://www.dlink.com.au
Brand Name:
D-Link
Product Model:
DSL-G225
Product Name:
DSL-G225 Modem/Wireless Router
Product Type:
Modem/Wireless Router
Wireless Specifications
Broadband Transmission Technology:
- Ethernet
- VDSL2
- ADSL2+
Wi-Fi Standard:
- IEEE 802.11n
ISM Band:
Yes
UNII Band:
No
ISM Maximum Frequency:
2.40 GHz
Total Number of Antennas:
2
Number of Internal Antennas:
2
Wireless Transmission Speed:
300 Mbit/s
Interfaces/Ports
Number of Network (RJ-45) Ports:
4
USB:
Yes
PoE Port:
No
Network & Communication
Ethernet Technology:
- Gigabit Ethernet
VPN Supported:
No
Physical Characteristics
Form Factor:
Desktop
Height:
155 mm
Width:
150 mm
Depth:
60 mm
Weight (Approximate):
242 g
