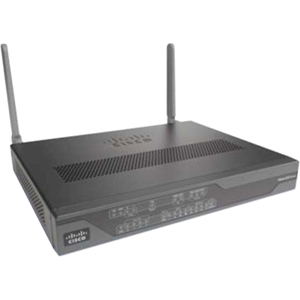

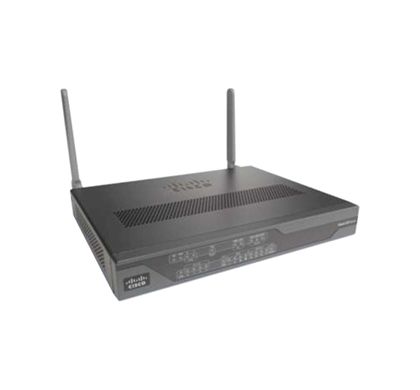

CISCO 887VAG Wireless Integrated Services Router

CISCO 887VAG Wireless Integrated Services Router
C887VAG+7-K9

This product has been discontinued by the manufacturer

Please visit

CISCO Wireless Routers

for alternative options.

Description

The Cisco 880G Series Integrated Services Router with the embedded third-generation (3G) wireless WAN (WWAN) option provides secure high-speed wireless WAN connectivity to small businesses, enterprise small branch offices, and teleworker sites . Transparently integrated into the enterprise-class feature set available on the Cisco 880 Series, 3G wireless connectivity allows for rapid installation, deployment flexibility, and resilient mobile broadband backhaul for primary and WAN backup.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
880G
Product Model:
887VAG
Product Name:
887VAG Wireless Integrated Services Router
Product Type:
Wireless Integrated Services Router

Wireless Specifications

Broadband Transmission Technology:
Cellular
ISM Band:
No
UNII Band:
No
Cellular Generation:
3.75G
Cellular Network Supported:
  • WCDMA 900
  • WCDMA 850
  • WCDMA 1900
  • WCDMA 2100
  • GSM 900
  • GSM 850
  • GSM 1900
  • GSM 1800
Cellular Data Connectivity Technology:
  • EDGE
  • GPRS
  • UMTS
  • HSDPA
  • HSPA+
Total Number of Antennas:
2
Antenna Type:
  • Dipole Antenna
Antenna Connector:
TNC Connector
Features:
  • Quality of Service (QoS)

Interfaces/Ports

Ethernet Port:
Yes
Fast Ethernet Port:
Yes
Gigabit Ethernet Port:
No
Number of Network (RJ-45) Ports:
4
Network (RJ-11):
No
VGA:
No
Serial:
No
USB:
Yes
Powerline:
No
PoE Port:
Yes
Management Port:
No
Number of Broadband (RJ-45) Ports:
1

I/O Expansions

Expansion Slots:
  • 2 x SIM Card

Network & Communication

Ethernet Technology:
  • Fast Ethernet

Management & Protocols

Management:
    • CLI
    • SNMP
    • MIB
    • Telnet
    • VLAN
    • Web-based Management
Security Features:
    • Firewall
    • Intrusion Prevention
    • VPN

Power Description

Input Voltage:
  • 100 V AC
  • 240 V AC
Power Source:
  • AC Supply

Physical Characteristics

Form Factor:
Desktop
Height:
44.5 mm
Width:
325.1 mm
Depth:
248.9 mm
Weight (Approximate):
2.49 kg

Miscellaneous

Package Contents:
  • 887VAG Wireless Integrated Service Router
  • 2 x Dipole Antenna
Certifications & Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • PTCRB
  • TIA-968-A
  • Addendum 1, 2, 3, 4, 5
  • IEC 1000-3-2
  • UNI 3.1/4.0 PVC
  • ITU G.991.2 G.SHDSL
  • VCCI Class II
  • Australia AS/ACIF S031: 2001
  • Australia AS/ACIF S043.1: 2003
  • Australia AS/ACIF S043.2: 2006
  • AS/NRZ 3548:1992 Class B
  • CFR 47 Part 15 Class B
  • EN60555-2 Class B
  • EN55022 Class B
  • ICES-003, Issue 2, Class B, April 1997S
  • New Zealand PTC220: 2003
Safety:
  • UL 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • CAN/CSA 22.2 No. 60950-1-05, Second Edition
  • EN 60950-1
  • IEC 60950-1
  • IEC 60950-1:2005, Second Edition
  • AS/NZS 60950.1
  • AS/NZS 60950-1:2003, First Edition
  • FCC Part 2.1093
  • RSS-102
  • EN 50385
EMC:
  • FCC Part 15
  • Industry Canada ICES-003
  • Industry Canada CS-03
  • EN 301 489-01
  • EN 301 489-07
  • EN 301 489-24
  • EN55022 (CISPR22)
  • EN55024 (CISPR24)
  • EN300-386
  • EN 61000-3-2
  • EN 61000-3-3
  • AS/NZS CISPR 22
  • CNS13438
  • VCCI V-3
Radio:
  • FCC Part 2
  • FCC Part 22
  • FCC Part 24
  • RSS 129
  • RSS 133
  • RSS 132
  • RSS 133
  • EN 301 511 GSM
  • EN 301 908-1
  • EN 301 908-2

Warranty

Standard Warranty:
90 Day
