CISCO 819HG Wireless Integrated Services Router

CISCO 819HG Wireless Integrated Services Router
C819HG-4G-G-K9

This product has been discontinued by the manufacturer

Please visit

CISCO Wireless Routers

for alternative options.

Description

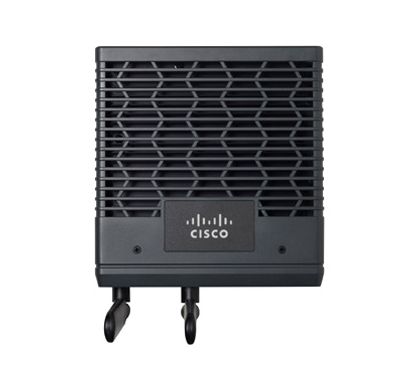

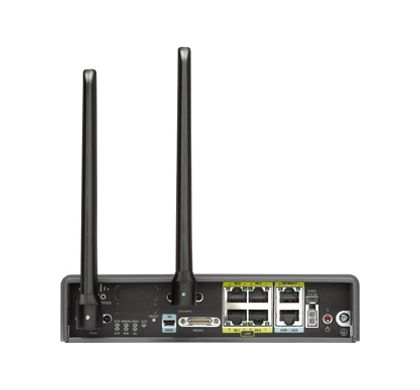

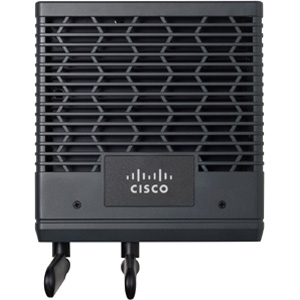

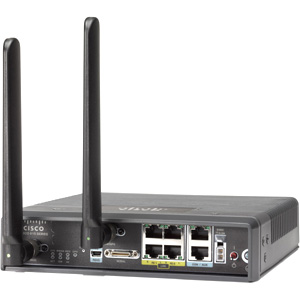

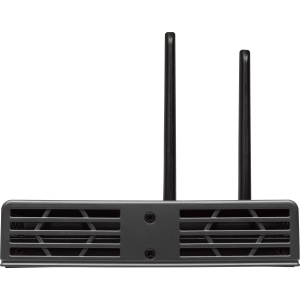

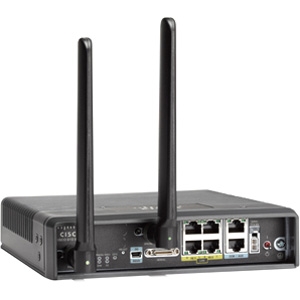

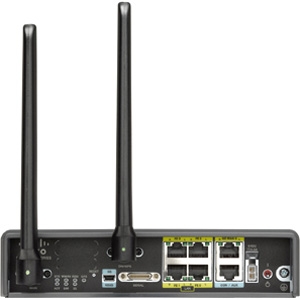

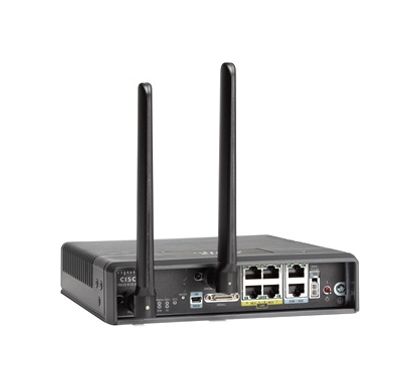

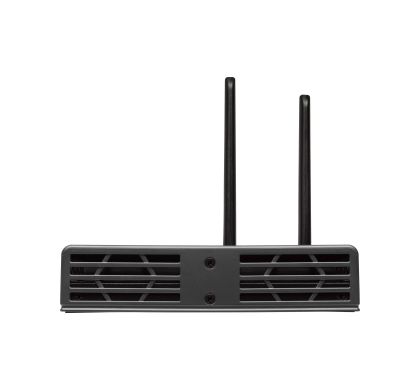

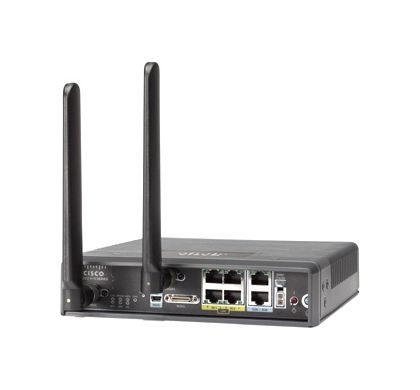

The Cisco® 819 Integrated Services Router Family, designed in compact hardened and non-hardened form factors, is the smallest Cisco IOS® Software router with support for integrated fourth-generation (4G LTE) wireless WAN (mobile broadband backhaul) and WLAN capabilities. The Cisco 819 ISR gateway provides a rapidly deployable, highly available, reliable, and secure solution designed specifically for machine-to-machine (M2M) applications. Markets that benefit from these applications include industrial automation, transportation, financial, health care, utility, and retail. Fully integrated with Cisco IOS Software, the Cisco 819 family delivers, enterprise-class features, including highly secure data, voice, and video communications to stationary and mobile network nodes across wired and wireless links. Figure 1 shows a Cisco 819HG Integrated Services Router.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
800
Product Model:
819HG
Product Name:
C819 Hardened 4G LTE for Global
Product Type:
Wireless Integrated Services Router

Wireless Specifications

Broadband Transmission Technology:
Cellular
ISM Band:
No
UNII Band:
No
Cellular Generation:
4G
Cellular Network Supported:
  • WCDMA 2100
  • WCDMA 1900
  • WCDMA 900
  • LTE 2600
  • LTE 2100
  • LTE 1800
  • LTE 900
  • LTE 800
Cellular Data Connectivity Technology:
  • HSPA
  • UMTS
Total Number of Antennas:
2
Antenna Type:
  • Dipole Antenna
Antenna Connector:
TNC Connector
Features:
  • Quality of Service (QoS)

Interfaces/Ports

Number of Network (RJ-45) Ports:
4
Network (RJ-11):
No
VGA:
No
Serial:
Yes
USB:
Yes
Powerline:
No
PoE Port:
No
Management Port:
Yes
Number of Broadband (RJ-45) Ports:
1

I/O Expansions

Expansion Slots:
  • 2 x SIM Card

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 10/100Base-TX
VoIP Supported:
Yes
VPN Supported:
Yes

Management & Protocols

Management:
  • MIB
  • VLAN
  • SNMP v1,v2,v3
  • Telnet
  • Web-based Management
  • DHCP
  • Cisco IOS Embedded Event Manager
  • Cisco Security Manager
  • Cisco Configuration Professional
  • CiscoWorks
Security Features:
  • L2TP
  • VPN
  • DES
  • 3DES
  • 128/192/256 bit AES
  • PKI
  • IPsec
  • NAT
  • SIP
  • Adaptive Control Technology
  • Firewall
  • Content Filtering
  • IPS
  • RADIUS
  • TACACS+

Power Description

Power Source:
  • AC Adapter

Physical Characteristics

Form Factor:
  • Wall Mountable
  • Desktop
Height:
43.9 mm
Width:
205.7 mm
Depth:
195.6 mm
Weight (Approximate):
1.45 kg

Miscellaneous

Package Contents:
  • C819 Hardened 4G LTE for Global
  • 2 x Multiband 4G LTE Swivel-mount Dipole Antennae
Certifications & Standards:
Standard Safety:
  • UL 60950-1, 2nd edition
  • CAN/CSA C22.2 No. 60950-1, 2nd edition
  • EN 60950-1, 2nd edition
  • CB to IEC 60950-1, 2nd edition with all group differences and national deviations
EMC Emissions:
  • EN55022/CISPR22
  • CFR 47 Part 15
  • ICES003
  • VCCI-V-3
  • AS/NZS CISPR22
  • CNS13438
  • EN300-386
  • EN61000-3-2
  • EN61000-3-3
  • EN61000-6-1
EMC Immunity:
  • EN55024/CISPR24
  • EN61000-4-2
  • EN61000-4-3
  • EN61000-4-4
  • EN61000-4-5
  • EN61000-4-6
  • EN61000-4-11
  • EN300-386
Radio Immunity:
  • EN301 489-1
  • EN 301 489-7
  • EN301 489-24
Cellular Radio:
  • EN 301 908-1
  • EN 301 908-2
  • EN 301 511
  • 47 CFR Part 22
  • 47 CFR Part 24
  • EN 301 908-13

Warranty

Standard Warranty:
90 Day
