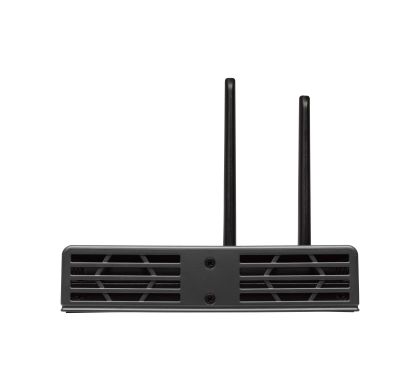

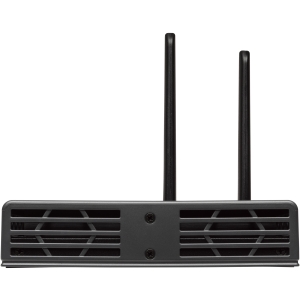

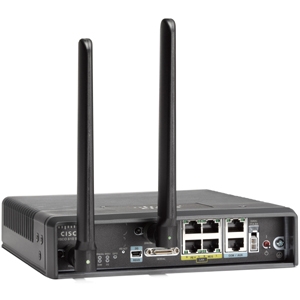

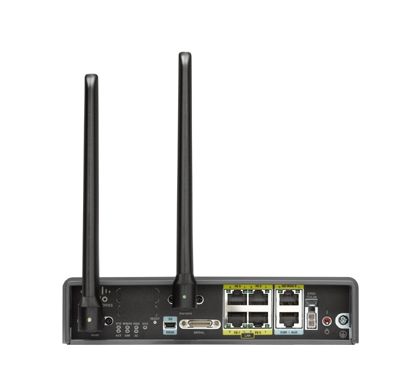

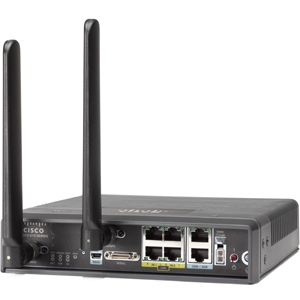

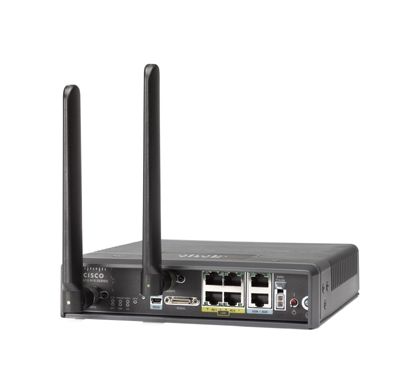

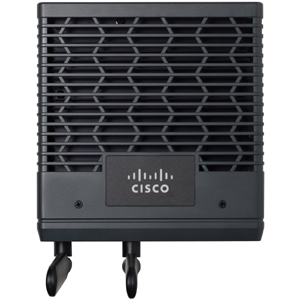

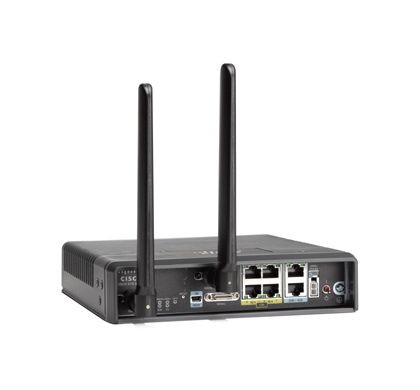

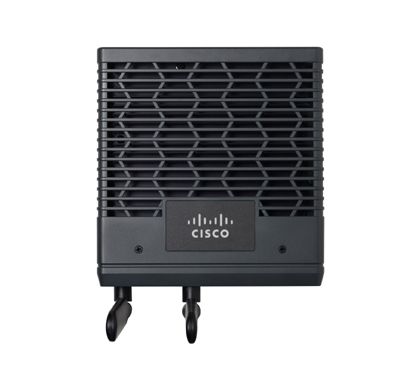

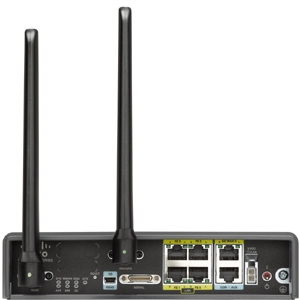

CISCO 819H Wireless Integrated Services Router

CISCO 819H Wireless Integrated Services Router
C819HG+7-K9

This product has been discontinued by the manufacturer

Please visit

CISCO Wireless Routers

for alternative options.

Description

The Cisco 819 Integrated Services Router, part of the Cisco Integrated Services Routers Generation 2 (ISR G2) Family designed in compact hardened and nonhardened form factors, is the smallest Cisco IOS Software router with support for integrated third-generation (3G) wireless WAN (mobile broadband backhaul). The Cisco 819 provides a rapidly deployable, highly available, reliable, and secure solution into machine-to-machine applications for financial, telemetry, utility, retail, industrial automation, and transportation with comprehensive management capability. Transparently integrated into Cisco IOS Software as an enterprise-class feature, the Cisco 819 hardened ISR provides highly secure data, voice, and video communications to stationary and mobile network nodes across wired and wireless links.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
800
Product Model:
819H
Product Name:
819H Wireless Integrated Services Router
Product Type:
Wireless Integrated Services Router

Wireless Specifications

Broadband Transmission Technology:
Cellular
ISM Band:
No
UNII Band:
No
Cellular Generation:
3G
Cellular Network Supported:
  • GSM 1800
  • GSM 1900
  • GSM 900
  • GSM 850
Cellular Data Connectivity Technology:
  • GPRS
  • EDGE
  • UMTS
  • HSDPA
  • HSPA+
Total Number of Antennas:
2
Antenna Type:
  • Dipole Antenna
Antenna Connector:
TNC Connector
Wireless Transmission Speed:
21 Mbps
Features:
  • Quality of Service (QoS)

Interfaces/Ports

Ethernet Port:
Yes
Fast Ethernet Port:
Yes
Gigabit Ethernet Port:
Yes
Number of Network (RJ-45) Ports:
4
Network (RJ-11):
No
VGA:
No
Serial:
Yes
USB:
Yes
Powerline:
No
PoE Port:
No
Management Port:
Yes
Number of Broadband (RJ-45) Ports:
1

I/O Expansions

Expansion Slots:
  • 2 x SIM Card

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Management & Protocols

Management:
  • SNMP v2,v3
  • Web-based Management
  • MIB
  • Telnet
  • CiscoWorks
  • HP OpenView
  • CLI
  • DHCP
  • VLAN
  • Cisco Configuration Professional
  • Cisco Configuration Engine support
  • Cisco IOS Embedded Event Manager (EEM)
Security Features:
  • AES
  • Content Filtering
  • IPSec
  • VPN
  • NAT
  • MAC Filtering
  • ACL
  • DES
  • 3DES
  • 128/192/256-bit AES
  • PKI
  • Zone-Based Policy Firewall
  • Stateful Inspection Transparent Firewall
  • IPS
  • SSL
  • RADIUS
  • SSH
  • TACACS+

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC
Power Source:
  • AC Supply

Physical Characteristics

Form Factor:
  • Rail-mountable
  • Wall Mountable
  • Desktop
Height:
43.9 mm
Width:
195.6 mm
Depth:
205.7 mm
Weight (Approximate):
1.45 kg

Miscellaneous

Package Contents:
  • 819H Wireless Integrated Service Router
  • AC Power Supply Cable
  • 2 x Multiband Swivel Mount Dipole Antenna
  • Cisco Configuration Professional (Cisco CP) CD
Certifications & Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.1Q
  • IEEE 802.1p
  • UL 60950-1 2nd Edition
  • CAN/CSA C22.2 No. 60950-1, 2nd Edition
  • EN 60950-1, 2nd Edition
  • IEC 60950-1, 2nd Edition
  • EN301 489-1
  • EN 301 489-7
  • EN301 489-24
  • EN 301 908-1
  • EN 301 908-2
  • EN 301 511
  • 47 CFR Part 22
  • 47 CFR Part 24
  • EN55022/CISPR22
  • CFR 47 Part 15
  • ICES003
  • VCCI-V-3
  • AS/NZS CISPR22
  • CNS13438
  • EN300-386
  • EN61000-3-2
  • EN61000-3-3
  • EN61000-6-1

Warranty

Standard Warranty:
90 Day
