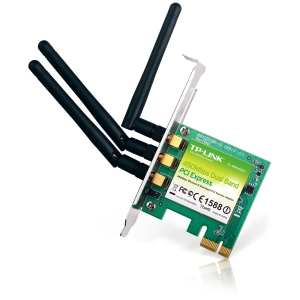

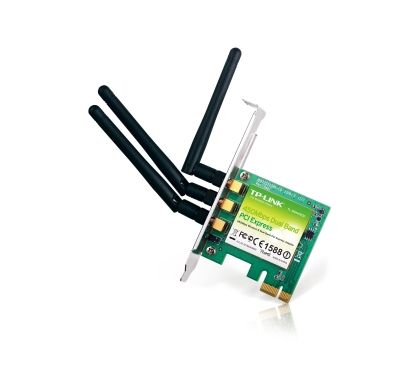

TP-LINK TL-WDN4800 IEEE 802.11n - Wi-Fi Adapter for Desktop Computer
This product has been discontinued by the manufacturer
Please visit
TP-LINK Wireless NICs & Adaptersfor alternative options.
Description
TP-LINK's 450Mbps Wireless N Dual Band PCI Express Adapter, TL-WDN4800 allows you to connect a desktop computer to a wireless network and access a high-speed wireless network connection. Complying with IEEE 802.11a/b/g/n, the device can use the 2.4GHz or 5GHz channels and provide wireless speeds of up to 450Mbps which is ideal for users seeking a highly robust, bandwidth intensive wireless networking experience, particularly with HD video streaming and online gaming.
Specifications
General Information
Manufacturer:
TP-LINK Technologies Co., Ltd
Manufacturer Website Address:
http://www.tp-link.com.au
Brand Name:
TP-LINK
Product Model:
TL-WDN4800
Product Name:
N900 Wireless Dual Band PCI Express Adapter
Product Type:
Wi-Fi Adapter
Technical Information
Wi-Fi Standard:
- IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.40 GHz
ISM Maximum Frequency:
2.48 GHz
UNII Minimum Frequency:
5.18 GHz
UNII Maximum Frequency:
5.83 GHz
Number of Antennas:
3
Antenna Gain:
- 2 dBi
Antenna Type:
- Omnidirectional Antenna
Antenna Connector:
RP-SMA Connector
Wireless Transmission Speed:
450 Mbit/s
Wireless Security:
- WEP 64/128-bit
- WPA-PSK
- WPA2-PSK
- IEEE 802.1x
- WPA
- WPA2
- TKIP
- AES
Interfaces/Ports
Host Interface:
- PCI Express x1
Physical Characteristics
Form Factor:
Internal
Height:
12.2 cm
Width:
2 cm
Length:
7.9 cm
Miscellaneous
Package Contents:
- TL-WDN4800 Wi-Fi Adapter
- Resource CD
- Quick Installation Guide
System Requirements:
Operating Systems:
- Windows 7(32/64bits)
- Windows XP(32/64bits)
- Windows Vista(32/64bits)
Device Supported:
- Desktop Computer
Certifications & Standards:
- IEEE 802.11n
- IEEE 802.11g
- IEEE 802.11b
- IEEE 802.11a
- FCC
- CE
Platform Supported:
- PC
Green Compliant:
Yes
Green Compliance Certificate/Authority:
- RoHS
Warranty
Standard Warranty:
2 Year
