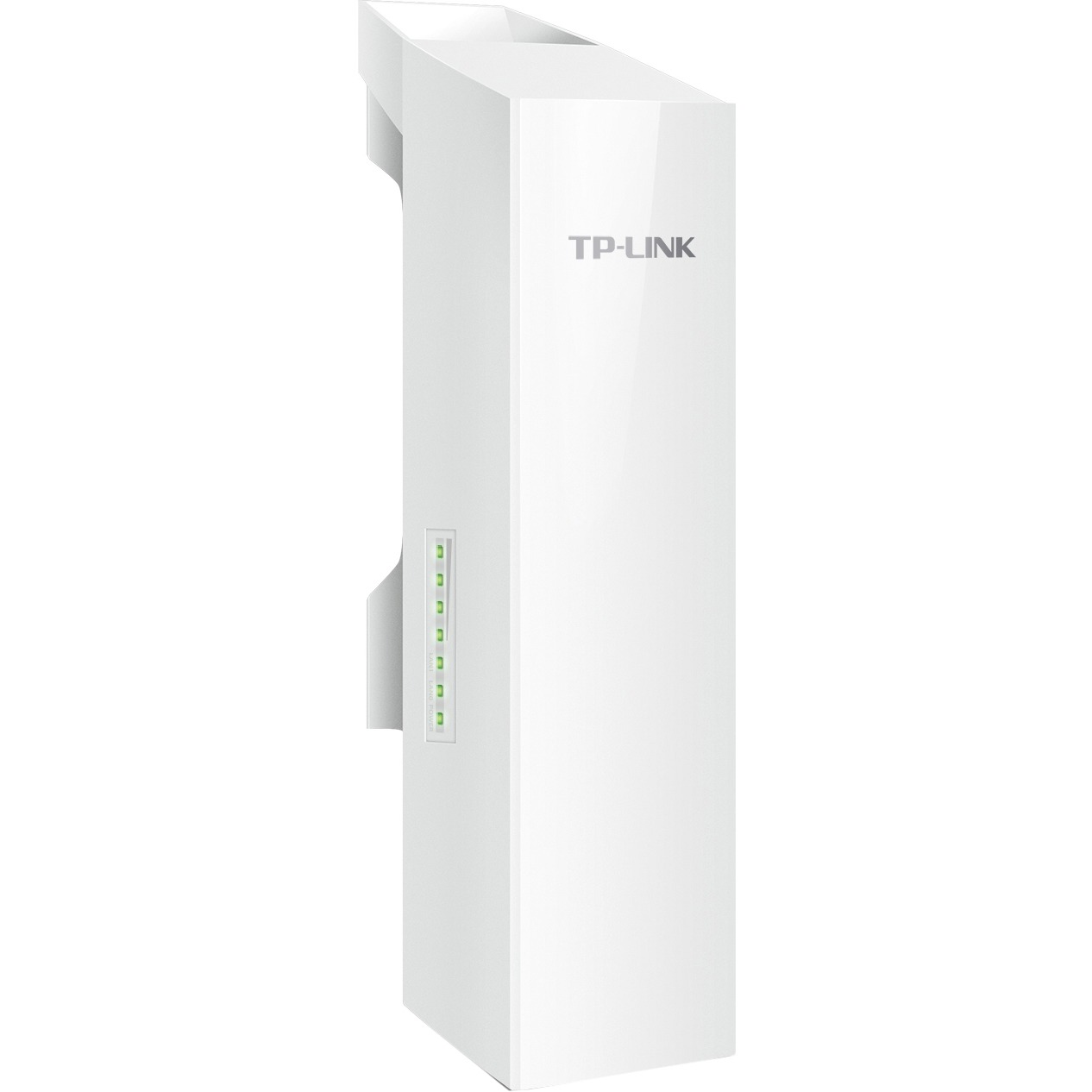

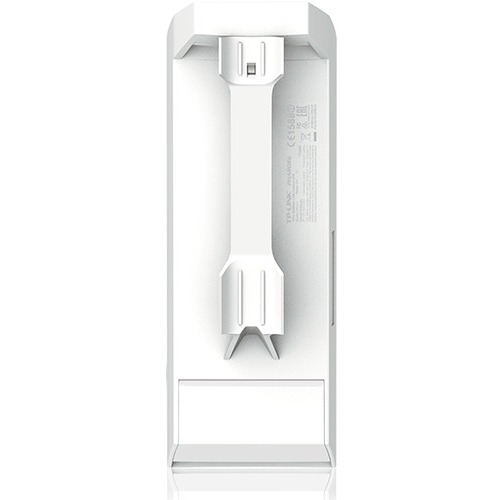

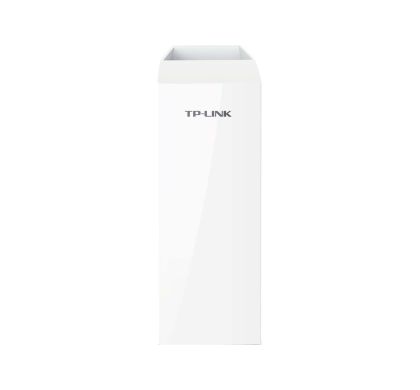

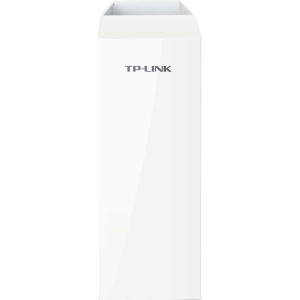

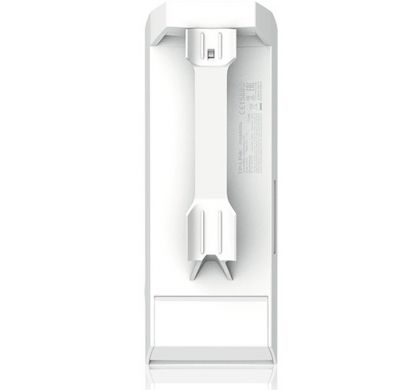

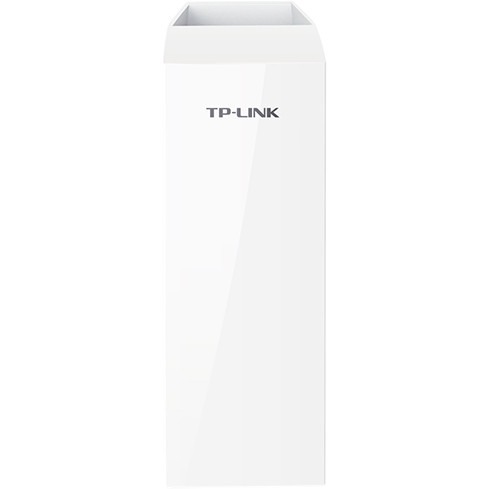

TP-LINK CPE510 IEEE 802.11n 300 Mbit/s Wireless Access Point - ISM Band - UNII Band
Description
TP-LINK's 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost e ective solutions for outdoor wireless network-ing applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
Specifications
General Information
Manufacturer:
TP-LINK Technologies Co., Ltd
Manufacturer Website Address:
http://www.tp-link.com.au
Brand Name:
TP-LINK
Product Model:
CPE510
Product Name:
5GHz 300Mbps 13dBi Outdoor CPE
Product Type:
Wireless Access Point
Technical Information
Wi-Fi Standard:
- IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Maximum Frequency:
2.40 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.85 GHz
Antenna Gain:
- 13 dBi
Antenna Type:
- Dual Polarized Antenna
Outdoor Antenna Range:
15 km
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
- WPA
- WPA2
- WPA-PSK (AES/TKIP)
- WPA2-PSK (AES/TKIP)
- 64/128/152-bit WEP
Features:
- MIMO Technology
- Weather Proof
Interfaces/Ports
Ethernet Port:
Yes
Fast Ethernet Port:
Yes
Gigabit Ethernet Port:
No
10Gigabit Ethernet Port:
No
Number of Network (RJ-45) Ports:
2
Network (RJ-11):
No
PoE Port:
Yes
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
No
Power Description
Power Source:
- PoE
Physical Characteristics
Form Factor:
Pole-mountable
Height:
224 mm
Width:
79 mm
Depth:
60 mm
Miscellaneous
Package Contents:
- 5GHz 300Mbps 13dBi Outdoor CPE
- Passive PoE Adapter
- Power Cord
- Installation Guide
- Pole Mounting Straps
System Requirements:
Operating Systems:
- Windows 98SE
- Windows NT
- Windows 2000
- Windows XP
- Windows Vista
- Windows 8
- Windows 7
- Mac OS
- NetWare
- UNIX
- Linux
- Google Chrome
- Safari
- Firefox
Certifications & Standards:
- CE
- FCC
- IPX5
- 802.11a
- 802.11n
Green Compliant:
Yes
Green Compliance Certificate/Authority:
- RoHS
