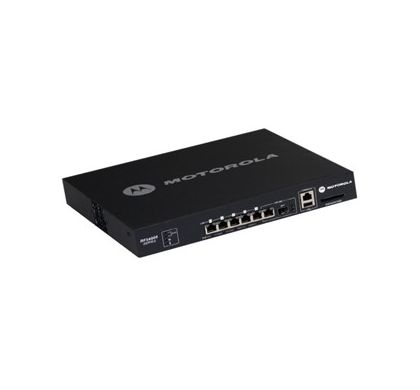

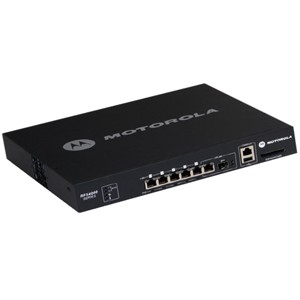

ZEBRA RFS4000 Wireless LAN Controller

RFS-4010-00010-WR

This product has been discontinued by the manufacturer

Please visit

ZEBRA Wireless Access Points/Bridges

for alternative options.

Description

The Motorola RFS4000 802.11n wireless services controller integrates wired, wireless and security networking features into a compact and easy-to-use form factor, enabling organizations to create survivable branch networks using a single platform. The RFS4000 is also available with an integrated dual radio dual band 802.11n access point that features extensive coverage and performance meeting all the needs of SME/ SMB. In addition, the RFS4000 Series offers built in applications such as Locating for Wi-Fi and RFID as well as Hotspot and VoWLAN/Video Services.

Specifications

General Information

Manufacturer:
Zebra Technologies Corporation
Manufacturer Website Address:
http://www.zebra.com
Brand Name:
Zebra
Product Model:
RFS4000
Product Name:
RFS4000 Integrated Services Controller
Product Type:
Wireless LAN Controller

Interfaces/Ports

Gigabit Ethernet Port:
Yes
Number of Network (RJ-45) Ports:
5
PoE Port:
Yes
USB:
Yes
Management Port:
Yes

Management & Protocols

Management:
    • IEEE 802.1Q VLAN Tagging
    • CLI
    • Telnet
    • Web-based GUI
    • SNMP v1/v2/v3
    • Syslog
    • DHCP
    • QoS

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC
Power Source:
  • Power Supply

Physical Characteristics

Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
44.5 mm
Depth:
254 mm
Weight (Approximate):
2.15 kg

Miscellaneous

Additional Information:
    • Supports 6 "thin" 802.11a/b/g AP300 access points
    • ExpressCard Slot: Driver support for 3G wireless cards for WAN backhaul
