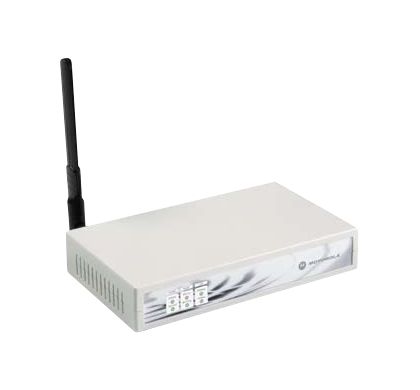

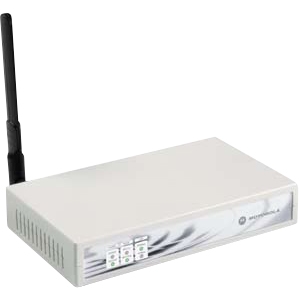

ZEBRA CB-3000 IEEE 802.11a/b/g 54 Mbps Wireless Bridge - ISM Band - UNII Band

ZEBRA CB-3000 IEEE 802.11a/b/g 54 Mbps Wireless Bridge - ISM Band - UNII Band
CB-3000-0010-WR

This product has been discontinued by the manufacturer

Please visit

ZEBRA Wireless Access Points/Bridges

for alternative options.

Description

Simple, cost-effective high performance wireless connectivity for printers, point-of-sale and Ethernet-enabled devices

The CB3000 provides a robust wireless connection for your Ethernet-enabled devices - from printers, scales, medical equipment, and manufacturing machinery to time clocks, point-of-sale devices and more. The need to extend wiring is eliminated, reducing the cost and complexity of deployment for devices without a PCMCIA or PCI card slot. And the ability to update the firmware provides the investment protection you need, ensuring that the CB3000 meets your networking needs today as well as tomorrow.

Specifications

General Information

Manufacturer:
Zebra Technologies Corporation
Manufacturer Website Address:
http://www.zebra.com
Brand Name:
Zebra
Product Model:
CB-3000
Product Name:
CB-3000 Wireless Bridge
Product Type:
Wireless Bridge

Technical Information

Wi-Fi Standard:
  • IEEE 802.11a/b/g
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.40 GHz
ISM Maximum Frequency:
2.48 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.83 GHz
Total Number of Antennas:
1
Antenna Gain:
  • 4 dBi
  • 3 dBi
Antenna Type:
  • Omnidirectional Antenna
Outdoor Antenna Range:
300 m
Wireless Transmission Speed:
54 Mbps
Wireless Security:
    • WPA2
    • IEEE 802.11i
    • IEEE 802.1x
    • PEAP
    • EAP/TLS
    • EAP/TTLS
    • Client Access Control List

Interfaces/Ports

Ethernet Port:
Yes
Fast Ethernet Port:
Yes
Gigabit Ethernet Port:
No
10Gigabit Ethernet Port:
No
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE Port:
No
VGA:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
No

Management & Protocols

Management:
    • DHCP
    • SNMP v2
    • HTTPS

Physical Characteristics

Form Factor:
Desktop
Height:
179 mm
Width:
102 mm
Depth:
31 mm
Weight (Approximate):
907.2 g

Miscellaneous

System Requirements:
Operating Systems:
  • Windows 2000
  • Windows XP
  • Mac
  • Linux
  • Unix
Certifications & Standards:
IEEE Standards:
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.1x
  • IEEE 802.11i
  • IEEE 802.1d
  • IEEE 802.11h
EMC:
  • FCC Part 15 Class B
  • ICES 003 Class B
  • EN 61000-3-3
  • EN 61000-3-2
  • EN 301 489-17
  • IEC 60601-1-2
  • EN 55024
  • EN 301 489-1
  • EN 55022
Electrical Safety:
  • UL 60950-1
  • EN 60950-1
  • C22.2 No. 60950-1
  • IEC 60950-1
Human Exposure EMF:
  • RSS102
  • EN 50385
  • FCC Part 2
  • OET Bulletin 65
Radio:
  • EN 300 328
  • EN 301 893
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS
