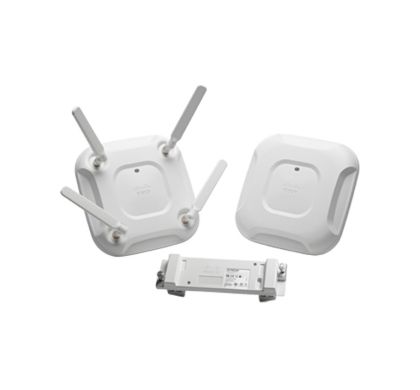

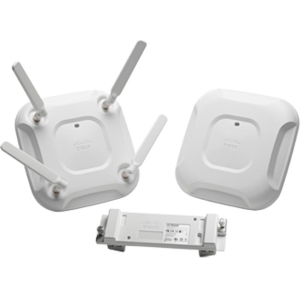

LINKSYS Cisco Aironet 3702I IEEE 802.11ac 1.27 Gbit/s Wireless Access Point - ISM Band - UNII Band

LINKSYS Cisco Aironet 3702I IEEE 802.11ac 1.27 Gbit/s Wireless Access Point - ISM Band - UNII Band
AIR-CAP3702I-S-K9

This product has been discontinued by the manufacturer

Please visit

LINKSYS Wireless Access Points/Bridges

for alternative options.

Description

With the industry's only enterprise class 4x4 MIMO, three-spatial-stream access points that support the IEEE's new 802.11ac specification, the Cisco® Aironet® 3700 Series delivers industry-leading performance and a High Density Experience (HD Experience) for both the enterprise and service provider markets. The Aironet 3700 Series extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrating 802.11ac support.

In its first implementation, 802.11ac wave 1 provides a rate of up to 1.3 Gbps, roughly triple the rates offered by today's high-end 802.11n access points. This provides the necessary foundation for enterprise and service provider networks alike to stay ahead of the performance and bandwidth expectations and needs of their wireless users.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
Aironet
Product Series:
3700
Product Model:
3702I
Product Name:
Aironet 3702I Wireless Access Point
Product Type:
Wireless Access Point

Technical Information

Wi-Fi Standard:
  • IEEE 802.11ac
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.18 GHz
UNII Maximum Frequency:
5.83 GHz
Antenna Gain:
  • 4 dBi
  • 6 dBi
Antenna Type:
  • Omnidirectional Antenna
Wireless Transmission Speed:
1.27 Gbit/s
Wireless Security:
  • AES
  • TKIP
  • EAP-Transport Layer Security (TLS)
  • EAP-Tunneled TLS (TTLS)
  • MSCHAPv2
  • EAP (PEAP) v0
  • EAP-MSCHAPv2
  • EAP-FAST
  • PEAP v1
  • EAP-Generic Token Card (GTC)
  • EAP-Subscriber Identity Module (SIM)
  • WPA2
  • WPA
Features:
  • MIMO Technology

Interfaces/Ports

Ethernet Port:
Yes
Fast Ethernet Port:
Yes
Gigabit Ethernet Port:
Yes
10Gigabit Ethernet Port:
No
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE Port:
No
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
Yes

Management & Protocols

Management:
  • Radio Resource Management

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC
Power Source:
  • Power Supply
  • PoE+

Physical Characteristics

Form Factor:
Ceiling Mountable
Height:
53.6 mm
Width:
221 mm
Depth:
221 mm
Weight (Approximate):
1.13 kg

Miscellaneous

Certifications & Standards:
IEEE Standards:
  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
  • 802.11ac
  • 802.11h
  • 802.11d
  • 802.11i
  • 802.1x
  • 802.3at
  • 802.3af
Safety:
  • UL 60950-1
  • CAN/CSA-C22.2 No. 60950-1
  • UL 2043
  • IEC 60950-1
  • EN 60950-1
  • EN 50155
Radio Approvals:
  • FCC Part 15.247, 15.407
  • RSS-210 (Canada)
  • EN 300.328, EN 301.893 (Europe)
  • ARIB-STD 66 (Japan)
  • ARIB-STD T71 (Japan)
  • EMI and susceptibility (Class B)
  • FCC Part 15.107 and 15.109
  • ICES-003 (Canada)
  • VCCI (Japan)
  • EN 301.489-1 and -17 (Europe)
  • EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC

Warranty

Standard Warranty:
