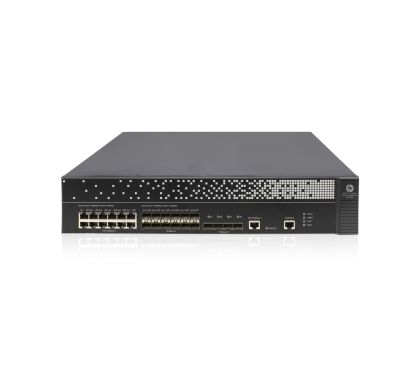

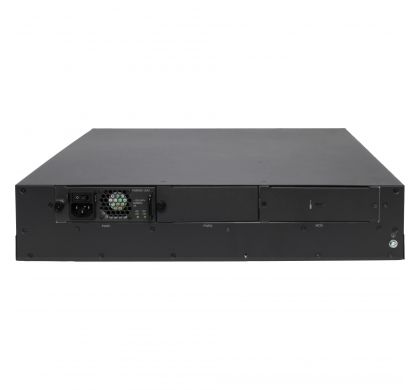

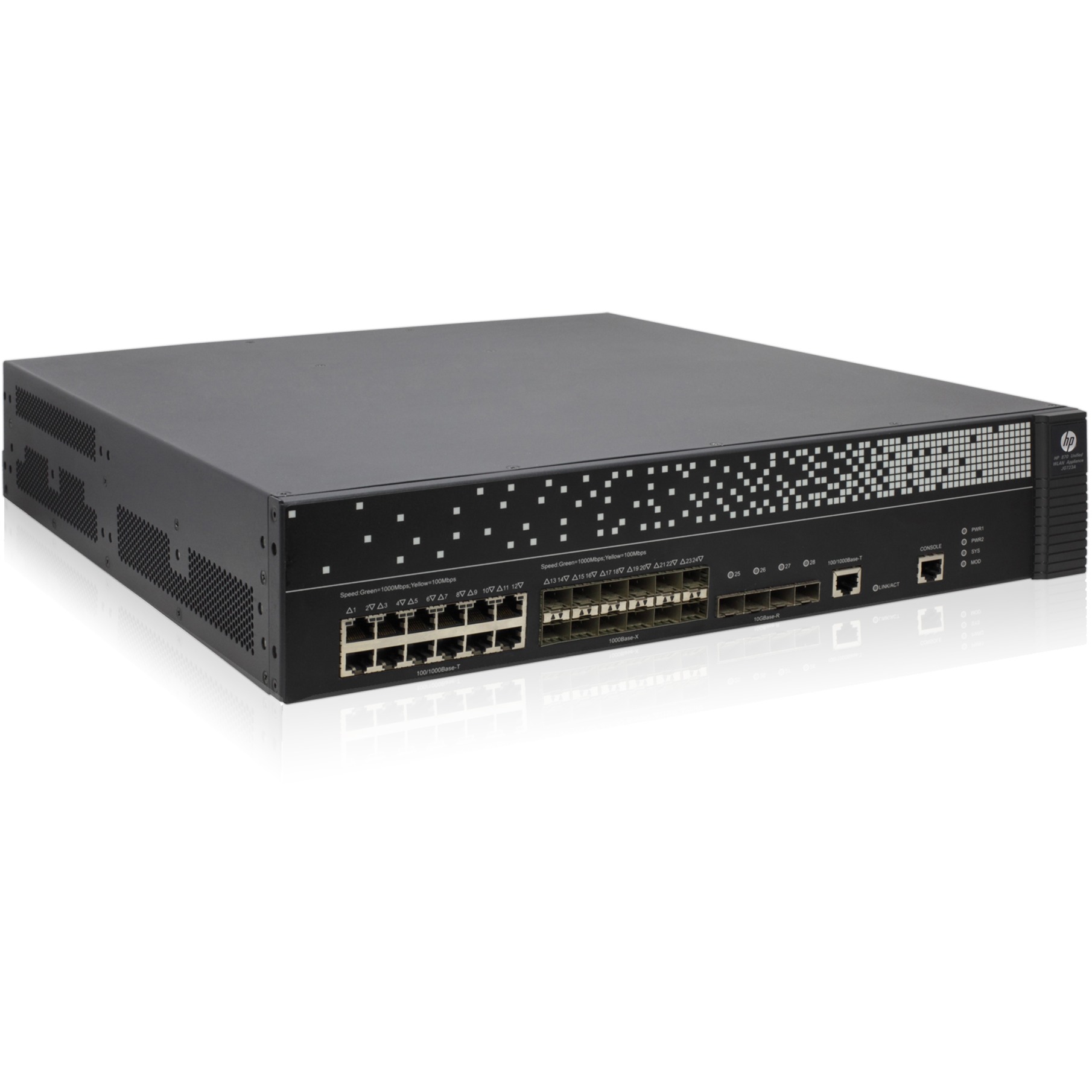

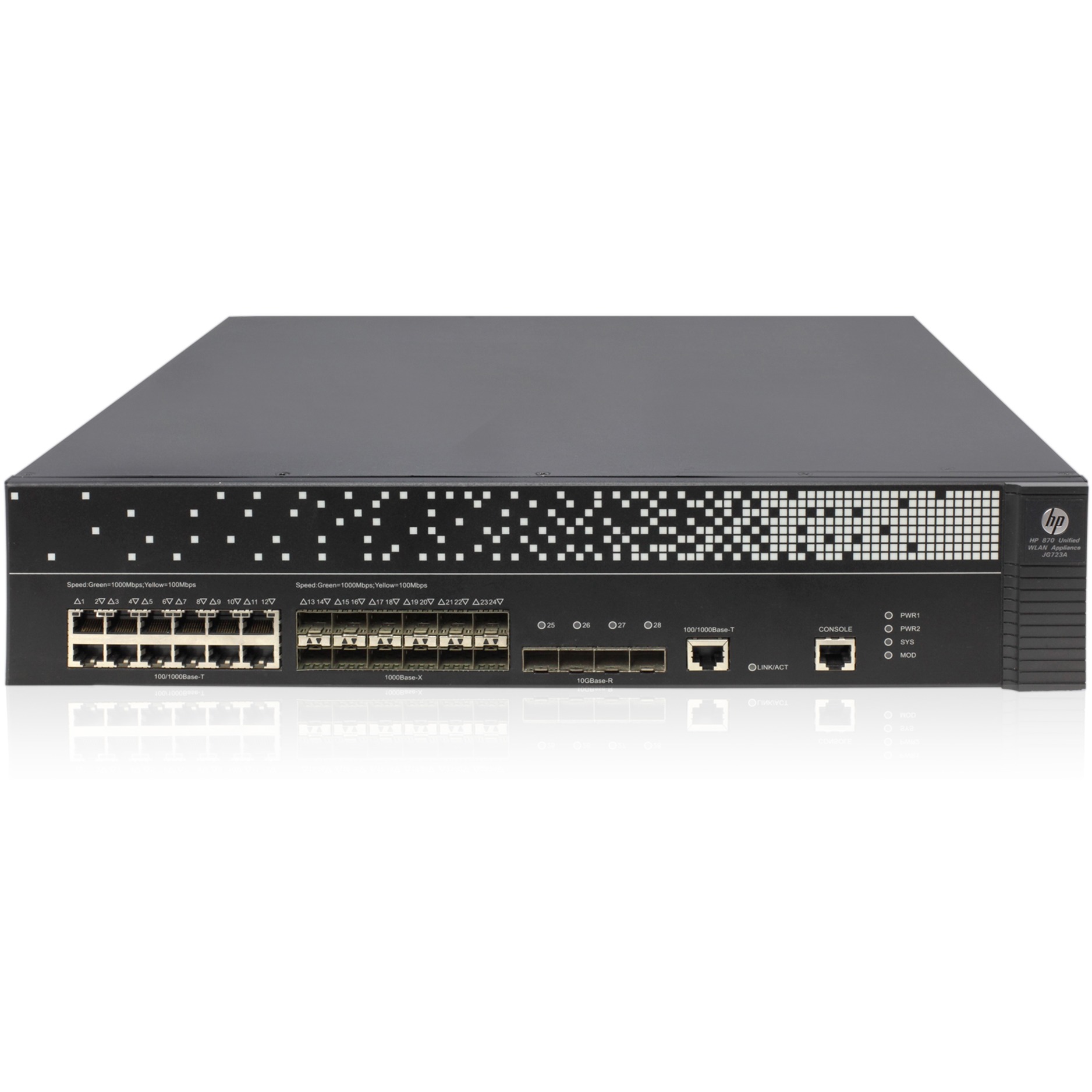

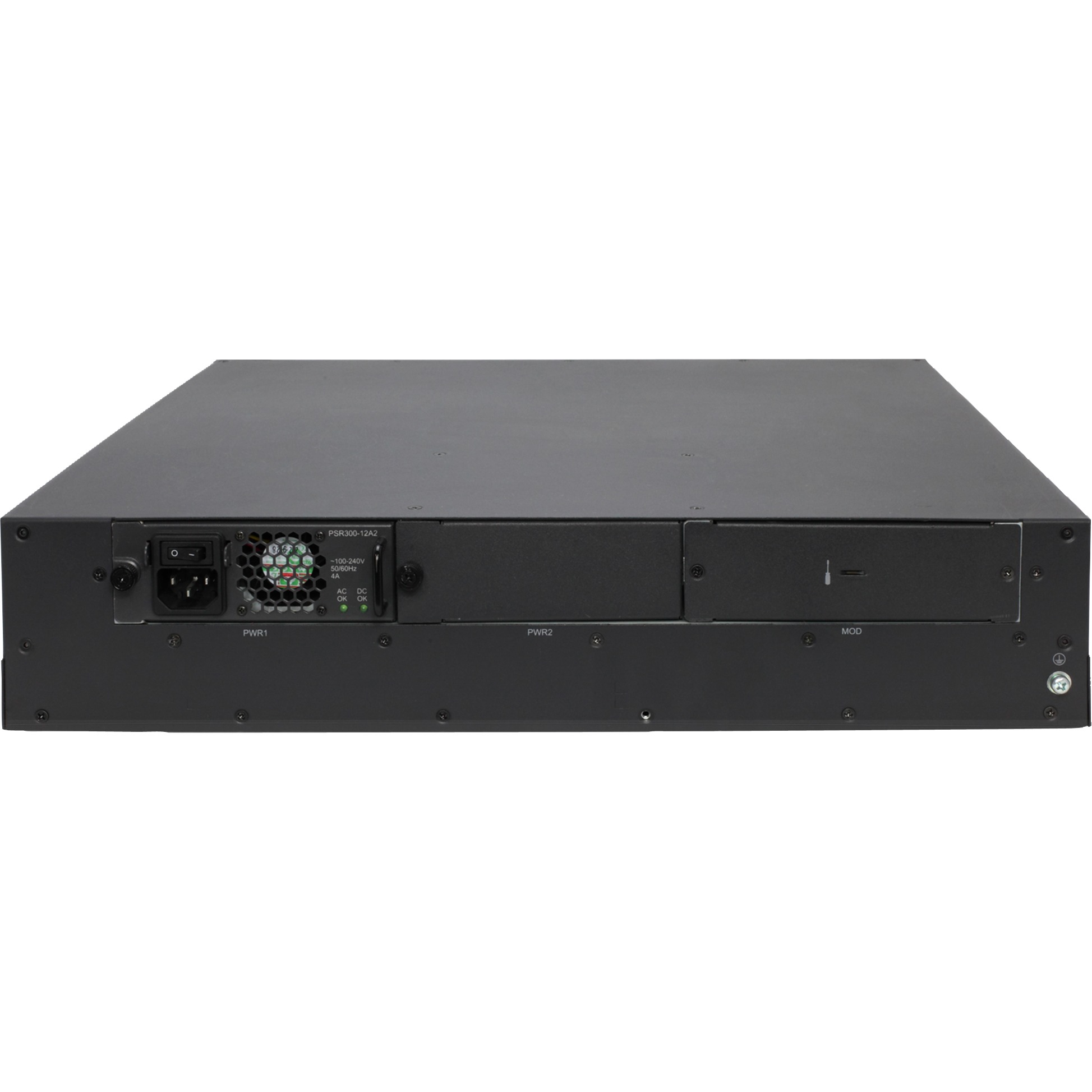

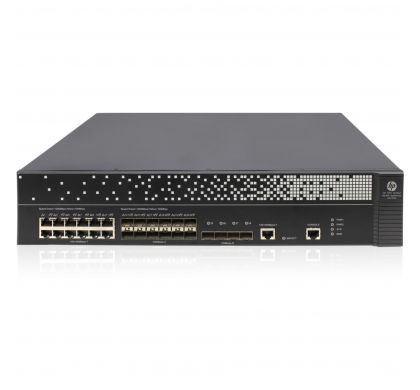

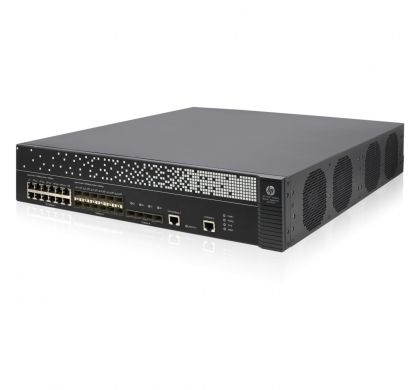

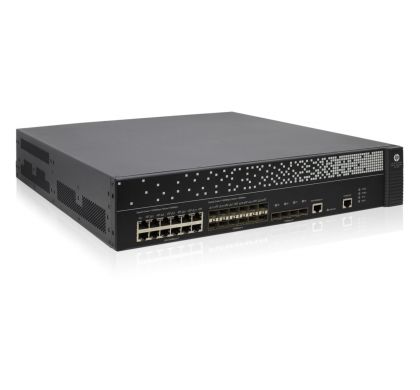

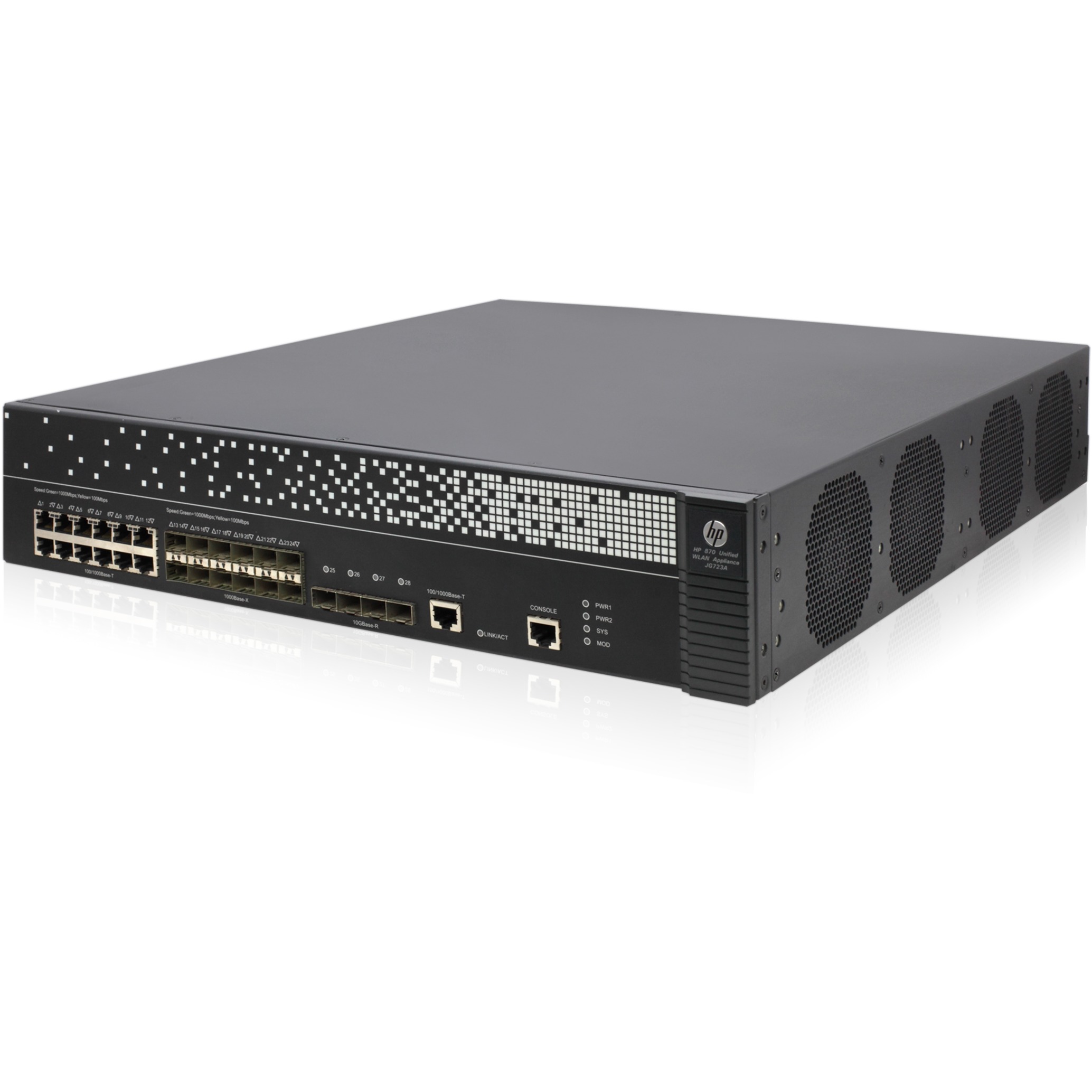

HPE HP 870 Wireless LAN Controller
Description
The IEEE 802.11ac-ready HP 870 Unified Wired-WLAN Appliance delivers a scalable high performance and resilient wireless network solution for your demanding large enterprise environments. The HP 870 supports up to 1536 access points and 30,000 users and offers sub-second failover redundancy and robust security for business continuity.
With refined user access control and management, fast roaming, advanced QoS, comprehensive RF management and full IPv4/IPv6 support, you get optimized performance of the most bandwidth intensive voice and video applications in dense clients environments.
With refined user access control and management, fast roaming, advanced QoS, comprehensive RF management and full IPv4/IPv6 support, you get optimized performance of the most bandwidth intensive voice and video applications in dense clients environments.
Specifications
General Information
Manufacturer:
Hewlett Packard Enterprise
Manufacturer Website Address:
https://www.hpe.com/au/
Brand Name:
HP
Product Model:
870
Product Name:
870 Unified Wired-WLAN Appliance
Packaged Quantity:
1
Product Type:
Wireless LAN Controller
Technical Information
ISM Band:
No
UNII Band:
No
Wireless Security:
- AES
- TKIP
- WEP
- WPA2
- WPA
- WIDS
- WIPS
- MAC authentication
- PKI
- AAA
- NAT
- IEEE 802.1x
Features:
- Quality of Service (QoS)
Interfaces/Ports
Ethernet Port:
Yes
Fast Ethernet Port:
Yes
Gigabit Ethernet Port:
Yes
10Gigabit Ethernet Port:
No
Number of Network (RJ-45) Ports:
12
Network (RJ-11):
No
PoE Port:
No
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
Yes
Powerline:
No
Management Port:
Yes
I/O Expansions
Expansion Slots:
- 12 x SFP (mini-GBIC)
- 4 x SFP+
Management & Protocols
Management:
- VLAN
- IMC
- CLI
- Web Browser
- SNMP Manager
- Telnet
- RMON1
- MIB
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Power Source:
- Power Supply
Physical Characteristics
Compatible Rack Unit:
2U
Form Factor:
Rack-mountable
Height:
88.1 mm
Width:
440 mm
Depth:
480 mm
Weight (Approximate):
14.50 kg
Miscellaneous
Certifications & Standards:
Safety:
- UL 60950-1
- CAN/CSA 22.2 No. 60950-1
- IEC 60950-1
- EN 60950-1
- FDA 21 CFR Subchapter J
- EN 55022 Class A
- CISPR 22 Class A
- ICES-003 Class A
- AS/NZS CISPR 22 Class A
- EN 61000-3-2
- EN 61000-3-3
- VCCI-3 CLASS A
- VCCI-4 CLASS A
- ETSI EN 300 386
- FCC Part 15 (CFR 47) CLASS A
- EN 55024
- CISPR 24 & ETSI EN 300 386
