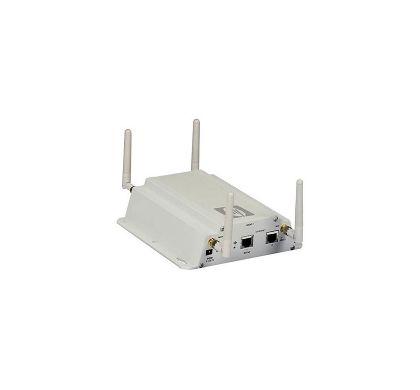

HP ProCurve MSM320-R WW Access Point
This product has been discontinued by the manufacturer
Please visit
HP Wireless Access Points/Bridgesfor alternative options.
Description
Overview
HP offers intelligent single, dual and tri radio Access Points designed to provide reliable, easy-to-use wireless connectivity across the network. HP also offers integrated RF Security Sensors in some of their APs. All the HP E-series MSM Access Points and integrated RF Security Sensors operating are managed by any of the HP E-series MSM Controllers and the HP RF Manager
for the RF Security Sensors. All the HP E-series Access Points can also work in autonomous mode. The HP E-series MSM Access Points require a single Power over Ethernet (PoE) cable drop and are IEEE802.3af compliant or can be powered directly via a power adaptor. HP has a full range of both indoor and outdoor E-series Access Points.
Features
Connectivity
• Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100 ports
Mobility
• Anywhere, anytime wireless coverage: - Single, dual, and tri-radio IEEE 802.11a/b/g access points. - Per-radio software-selectable configuration of frequency bands. - Self-healing, self-optimizing local mesh extends network availability . - Wi-Fi Alliance certified for interoperability with all 802.11a/b/g client devices . - IEEE 802.3af PoE or external power cord on selected models .
Security
• Choice of IEEE 802.11i, Wi-Fi Protected Access 2 (WPA2), or WPA: locks out unauthorized wireless access by authenticating users prior to granting network access; robust Advanced Encryption Standard (AES) or Temporal Key Integrity Protocol (TKIP) encryption secures the data integrity of the wireless traffic
Quality of Service (QoS)
• IEEE 802.1p prioritization: delivers data to devices based on the priority and type of traffic
Warranty and support
• Lifetime Warranty: - for as long as you own the product, with next-business-day advance replacement (available in most countries) .
HP offers intelligent single, dual and tri radio Access Points designed to provide reliable, easy-to-use wireless connectivity across the network. HP also offers integrated RF Security Sensors in some of their APs. All the HP E-series MSM Access Points and integrated RF Security Sensors operating are managed by any of the HP E-series MSM Controllers and the HP RF Manager
for the RF Security Sensors. All the HP E-series Access Points can also work in autonomous mode. The HP E-series MSM Access Points require a single Power over Ethernet (PoE) cable drop and are IEEE802.3af compliant or can be powered directly via a power adaptor. HP has a full range of both indoor and outdoor E-series Access Points.
Features
Connectivity
• Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100 ports
Mobility
• Anywhere, anytime wireless coverage: - Single, dual, and tri-radio IEEE 802.11a/b/g access points. - Per-radio software-selectable configuration of frequency bands. - Self-healing, self-optimizing local mesh extends network availability . - Wi-Fi Alliance certified for interoperability with all 802.11a/b/g client devices . - IEEE 802.3af PoE or external power cord on selected models .
Security
• Choice of IEEE 802.11i, Wi-Fi Protected Access 2 (WPA2), or WPA: locks out unauthorized wireless access by authenticating users prior to granting network access; robust Advanced Encryption Standard (AES) or Temporal Key Integrity Protocol (TKIP) encryption secures the data integrity of the wireless traffic
Quality of Service (QoS)
• IEEE 802.1p prioritization: delivers data to devices based on the priority and type of traffic
Warranty and support
• Lifetime Warranty: - for as long as you own the product, with next-business-day advance replacement (available in most countries) .
Specifications
General Information
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Family:
ProCurve
Product Name:
ProCurve MSM320-R MultiService Access Point
Product Type:
Wireless Access Point
Technical Information
Wi-Fi Standard:
- IEEE 802.11a/b/g
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.46 GHz
UNII Minimum Frequency:
5.18 GHz
UNII Maximum Frequency:
5.83 GHz
Antenna Gain:
- 5.5 dBi
Antenna Type:
- Omnidirectional Antenna
Antenna Connector:
N-Type
Wireless Transmission Speed:
54 Mbps
Wireless Security:IDS IPS IP filter Access Control EAP-SIM EAP-FAST EAP-TLS EAP-TTLS and PEAP MAC address authentication AAA EAP-MD5 PAP CHAP MS-CHAPv2 WPA WPA2 AES TKIP
Interfaces/Ports
Fast Ethernet Port:
Yes
Number of Network (RJ-45) Ports:
1
PoE Port:
Yes
Management & Protocols
Management:IEEE 802.1Q VLAN IEEE 802.1p QoS HP ProCurve Manager 3.0 AU1 HP ProCurve Mobility Manager 3.0 AU2 SNMP v2c,v3 DHCP
Power Description
Input Voltage:
- 5 V DC
Power Source:
- AC Adapter
Physical Characteristics
Form Factor:
- Pole-mountable
- Wall Mountable
Height:
54.4 mm
Depth:
214.0 mm
Weight (Approximate):
4.08 kg
Warranty
Standard Warranty:
