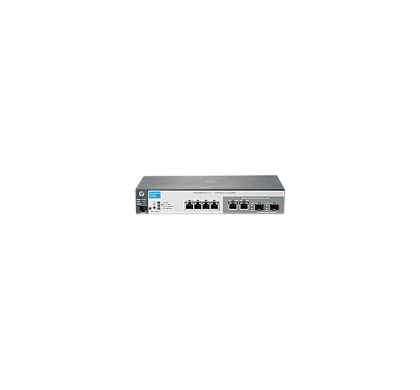

HP MSM720 Wireless LAN Controller

J9693A

This product has been discontinued by the manufacturer

Please visit

HP Wireless Access Points/Bridges

for alternative options.

Description

Working in unison with HP MSM access points, the HP MSM Controller Series delivers high-performance networking solutions. The enhanced architecture scales to 802.11n without requiring controller replacement. Robust identity- and roles-based user account profiles, as well as Virtual Service Communities (VSCs) with independently configurable Quality of Service (QoS), authentication, encryption, and VLAN support, deliver intelligence to the network edge. Scalable from small to larger deployments, the MSM wireless controllers support a fast-roaming capability. Wireless security is comprehensive with support for internal and external authentication, authorization, and accounting (AAA) servers, built-in stateful firewall, per-user VLAN mapping, and authentication.

Specifications

General Information

Manufacturer:
Hewlett-Packard
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Series:
MSM700
Product Model:
MSM720
Product Name:
MSM720 Wireless LAN Controller
Product Type:
Wireless LAN Controller

Technical Information

ISM Band:
No
UNII Band:
No
Wireless Security:
    • AAA
    • Firewall
    • NAT
    • PAT
    • RADIUS
    • SSL
    • VPN
Features:
  • Quality of Service (QoS)

Interfaces/Ports

Ethernet Port:
Yes
Fast Ethernet Port:
Yes
Gigabit Ethernet Port:
Yes
10Gigabit Ethernet Port:
No
Number of Network (RJ-45) Ports:
6
Network (RJ-11):
No
PoE Port:
No
VGA:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
Yes

I/O Expansions

Expansion Slots:
  • 2 x SFP (mini-GBIC)

Management & Protocols

Management:
    • VLAN
    • DHCP
    • SNMP v2c/v3
    • MIB/II
    • Web Based Management
    • Command Line Interface

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC
Power Source:
  • Power Supply

Physical Characteristics

Form Factor:
  • Wall Mountable
  • Rack-mountable
Height:
44.5 mm
Width:
159.5 mm
Depth:
254 mm
Weight (Approximate):
1.64 kg

Miscellaneous

Certifications & Standards:
IEEE Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.1Q
Safety:
  • UL 60950-1
  • IEC 60950-1
  • EN 60950-1
  • CAN/CSA-C22.2 No. 60950-1
Electromagnetic Compatibility:
  • FCC part 15 Class A
  • EN 55022 Class A
  • CISPR 22 Class A
  • ICES-003
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS
  • REACH

Warranty

Standard Warranty:
