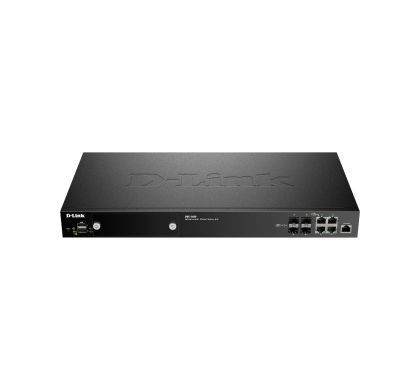

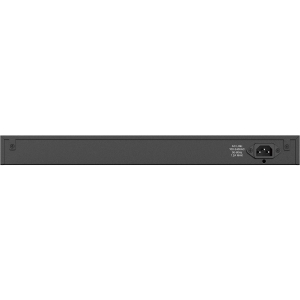

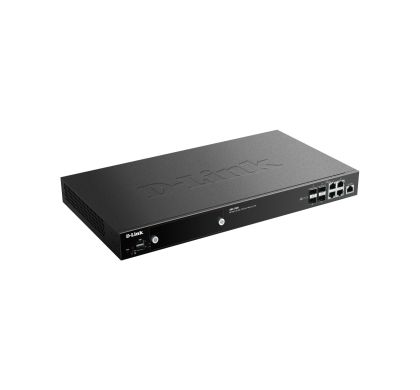

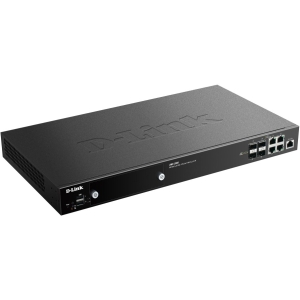

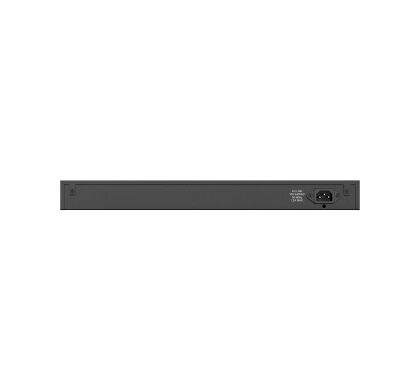

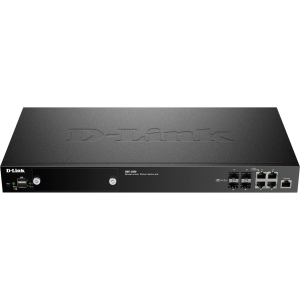

D-LINK DWC-2000 Wireless LAN Controller
Description
The D-Link DWC-2000 Wireless Controller is a centralized Wireless LAN manager designedspecifically for education, hospitality, and medium-to-large enterprises. With the ability tomanage up to 64 (upgradable to 256) wireless access points and up to a maximum of 1,024wireless access points in a controller cluster, the DWC-2000 is a cost-effective mobility solutionsuitable for medium to large scale deployments. Features such as auto-managed AP discoveryand single-point management allow users to achieve enterprise class networking withoutthe burden of executing massive and complex configurations. The guest account generationfunction manages guest users' bandwidth and accessibility to network resources. With a robustand comprehensive security detection system, the DWC-2000 manages associated APs byblocking potential attacks from unauthorized users and appliances, which is particularly crucialin wireless environments.
Specifications
General Information
Manufacturer:
D-Link Systems, Inc
Manufacturer Website Address:
http://www.dlink.com.au
Brand Name:
D-Link
Product Model:
DWC-2000
Product Name:
Unified Wireless Controller with 64 AP License
Product Type:
Wireless LAN Controller
Technical Information
ISM Band:
No
UNII Band:
No
Interfaces/Ports
Ethernet Port:
Yes
Fast Ethernet Port:
Yes
Gigabit Ethernet Port:
Yes
10Gigabit Ethernet Port:
No
Number of Network (RJ-45) Ports:
4
Network (RJ-11):
No
PoE Port:
No
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
Yes
Powerline:
No
Management Port:
Yes
I/O Expansions
Expansion Slots:
- 4 x SFP
- 1 x Expansion Slot
Management & Protocols
Management:
- CLI
- SNMP v1, v2c, v3
- Web Based Management
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Power Source:
- Power Supply
Physical Characteristics
Form Factor:
Desktop
Height:
44 mm
Width:
440 mm
Depth:
310 mm
Miscellaneous
Certifications & Standards:
Emission:
- CE Class A
- FCC Class A
- C-Tick
- CE
- LVD
- UL
- 802.1x
- 802.1q
Warranty
Standard Warranty:
