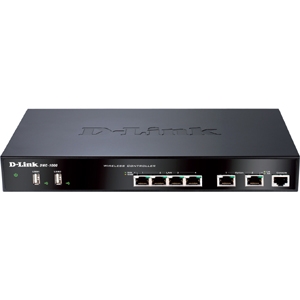

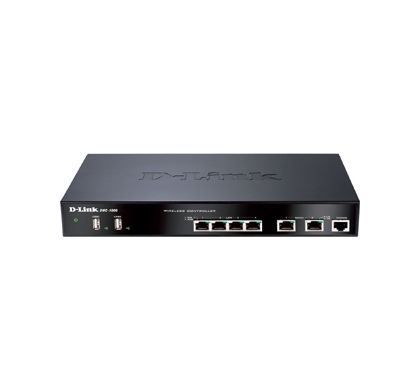

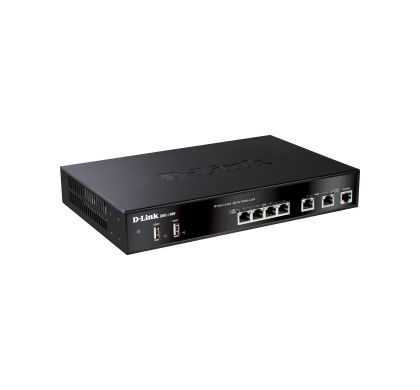

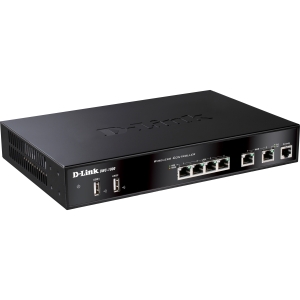

D-LINK DWC-1000 Wireless LAN Controller

DWC-1000
Please Call
Please contact us for pricing

Description

The D-Link DWC-1000 Wireless Controller is a centralized wireless LAN manager developed specifically for campuses, branch offices, and smallto- medium enterprises (SMBs). With the ability to manage up to six wireless access points (upgradable to 24) and a maximum of 96 wireless access points in a Controller Cluster, the DWC-1000 is a costeffective mobility solution for small to medium-scale environments. Its auto-managed AP discovery and single point management allow customers to acquire an enterprise class system without the burden of executing massive and complex configurations. With a robust and comprehensive security detection system, the DWC-1000 also enables managed APs to block potential attacks from unauthorized users and devices, especially for wireless environments.

Specifications

General Information

Manufacturer:
D-Link Systems, Inc
Manufacturer Website Address:
http://www.dlink.com.au
Brand Name:
D-Link
Product Model:
DWC-1000
Product Name:
DWC-1000 Wireless LAN Controller
Product Type:
Wireless LAN Controller

Technical Information

ISM Band:
No
UNII Band:
No
Wireless Security:
  • IPSec
  • PPTP
  • L2TP
  • SSL
  • VPN
  • Web Content Filtering
  • Rogue AP Detection
  • Wireless Instruction Detection System
  • NAT
  • PAT
  • DES
  • 3DES
  • AES
  • MD5
  • SHA1
  • Twofish
  • Blowfish
  • CAST-128
  • Dead Peer Detection
  • IP Encapsulating Security Payload (ESP)
  • IP Authentication Header (AH)

Interfaces/Ports

Ethernet Port:
Yes
Fast Ethernet Port:
Yes
Gigabit Ethernet Port:
Yes
10Gigabit Ethernet Port:
No
Number of Network (RJ-45) Ports:
6
Network (RJ-11):
No
PoE Port:
No
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
Yes
Powerline:
No
Management Port:
Yes

Management & Protocols

Management:
    • Web Based Management
    • Command Line Interface
    • SNMP v1/v2c/v3
    • VLAN

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC
Power Source:
  • Power Supply

Physical Characteristics

Form Factor:
Desktop
Height:
44 mm
Width:
280 mm
Depth:
180 mm

Miscellaneous

Certifications & Standards:
IEEE Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.1x
  • IEEE 802.1Q
EMI:
  • FCC Class B
  • CE Class B
  • VCCI
  • C-tick
  • IC
Safety:
  • cUL
  • LVD (EN60950-1)

Warranty

Standard Warranty:
