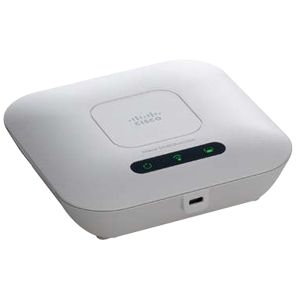

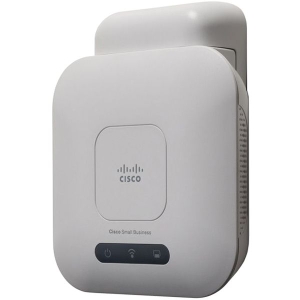

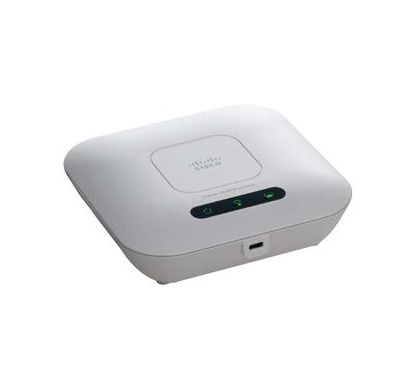

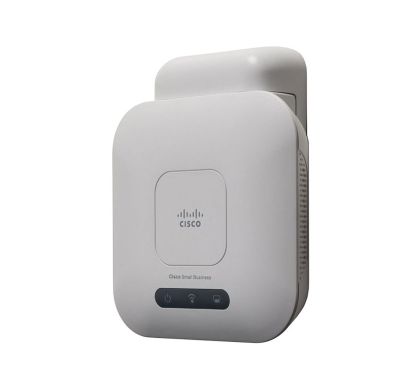

CISCO WAP121 IEEE 802.11n 300 Mbps Wireless Access Point - ISM Band

CISCO WAP121 IEEE 802.11n 300 Mbps Wireless Access Point - ISM Band
WAP121-A-K9-AU

This product has been discontinued by the manufacturer

Please visit

CISCO Wireless Access Points/Bridges

for alternative options.

Description

In an increasingly mobile workplace, providing secure, high-speed wireless connectivity to employees and guests is more important than ever. The Cisco WAP121 Wireless-N Access Point with PoE is an easy, affordable way to improve the performance and reach of your small business network with advanced 802.11n wireless technology. This flexible solution is ideal for connecting up to 10 employees and can scale to accommodate additional users and changing business needs.

Designed for today's performance-intensive applications, the Cisco WAP121 employs 802.11n wireless technology to deliver high throughput and extended range throughout your office. It features built-in quality-of-service (QoS) features that let you prioritize bandwidth-sensitive traffic, enabling the deployment of business-quality voice over IP (VoIP) and video applications.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
100
Product Model:
WAP121
Product Name:
WAP121 Wireless-N Access Point with Power over Ethernet
Product Type:
Wireless Access Point

Technical Information

Wi-Fi Standard:
  • IEEE 802.11n
ISM Band:
Yes
UNII Band:
No
ISM Maximum Frequency:
2.40 GHz
Antenna Gain:
  • 2 dBi
Antenna Type:
  • Patch Antenna
Wireless Transmission Speed:
300 MBps
Wireless Security:
    • IEEE 802.1x
    • Wi-Fi Protected Setup (WPS)
    • Access Control List
    • WPA2-Enterprise
    • WPA-Enterprise
    • WEP
    • RADIUS
    • IEEE 802.11i
Features:
  • Quality of Service (QoS)

Interfaces/Ports

Ethernet Port:
Yes
Fast Ethernet Port:
Yes
Gigabit Ethernet Port:
No
10Gigabit Ethernet Port:
No
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE Port:
Yes
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
No

Management & Protocols

Management:
    • Web-Based Management
    • Remote Management
    • SNMP v3
    • Syslog
    • DHCP
    • VLAN

Power Description

Input Voltage:
  • 12 V DC
Power Source:
  • AC Adapter

Physical Characteristics

Form Factor:
  • Desktop
  • Wall Mountable
  • Ceiling Mountable
Height:
35.1 mm
Width:
124.2 mm
Depth:
124.2 mm
Weight (Approximate):
167.8 g

Miscellaneous

Package Contents:
  • WAP121 Wireless-N Access Point with Power over Ethernet
  • Ceiling/Wall Mounting Kit
  • User Guide on CD-ROM
  • Quick Start Guide
  • Ethernet Network Cable
  • 12V, 0.5A Power Supply
System Requirements:
  • 802.11b, 802.11g, 802.11n wireless adapter with TCP/IP protocol installed per PC
  • Switch/router with PoE support or PoE injector when used with PoE
  • Web-based configuration: Java-enabled web browser
  • Operating System: Linux
Certifications & Standards:
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IEEE 802.11i
  • IEEE 802.11e
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3af
  • IEEE 802.1Q
  • IEEE 802.1p
  • IEEE 802.1D
  • IEEE 802.1X
  • FCC class B
  • CE
  • IC

Warranty

Standard Warranty:
