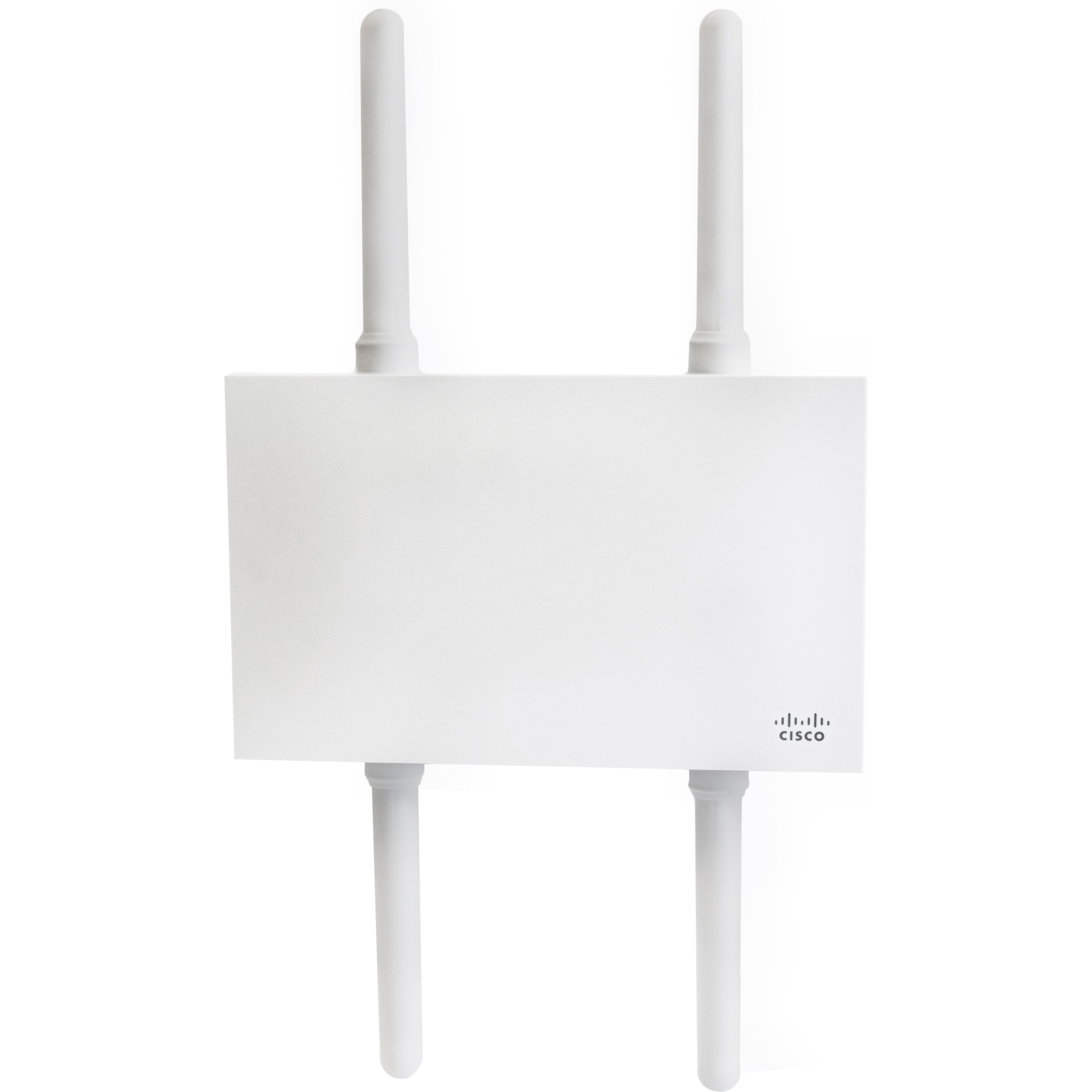

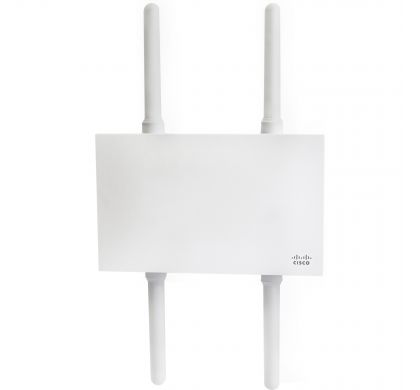

CISCO Meraki MR84-HW IEEE 802.11ac 2.50 Gbit/s Wireless Access Point

Performance-driven 802.11ac for tough, high-density environments

External Antennas and Integrated, Dedicated Security and Bluetooth Beacons

Ideal use cases

High-density and challenging RF stadium, arena, and open-air deployments
Harsh, rugged, and outdoor environments
Voice, video, and performance-intensive networks

Hardware features

IP67 rated, tested for dust, shock, vibration, and moisture
4 radios: 2.4 and 5 GHz, dual-band WIDS/WIPS and Bluetooth Low Energy (BLE)
4-stream 802.11ac, 160MHz channels, up to 2.5 Gbps dual-aggregate throughput
1 x Gigabit Ethernet port, 1 x Multigigabit Ethernet port, PoE: 802.3at

Cloud management

Network-wide visibility and control
Self-provisioning for rapid deployment
Automatic reporting
Seamless firmware updates

Enterprise security

802.1X and native Active Directory integration
Air Marshal: real-time WIPS with forensics
Stateful Layer 3-7 firewall
Identity-based group policies
Built-in antivirus scan (NAC)

Guest access

1-click secure guest access
Guest isolation firewall
Customizable splash pages
Integrated Facebook WiFi login

RF optimization

Dual-concurrent radios with MU-MIMO support, radios optimized for rate-vs-range performance
Third radio dedicated to security and RF management
Built-in real-time RF specturm view
Cloud-based, automatic RF optimization

Layer 7 traffic shaping

Classifies hundreds of applications
Create per-application bandwidth limits
Prioritize productivity apps
Restrict recreational traffic

CMX location analytics

Measure visitor capture rate, visit length, and repeat visit rate
Measure visitor trends over time and compare performance across locations
Enable location services through integrated iBeacon functionality
