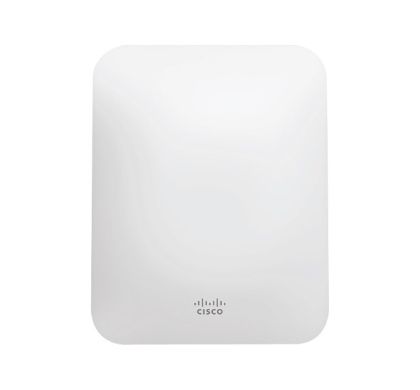

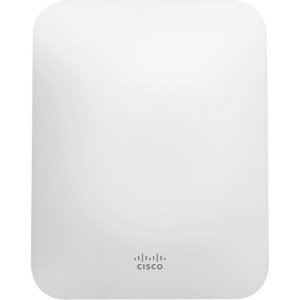

CISCO Meraki MR18 IEEE 802.11n 600 Mbps Wireless Access Point - ISM Band - UNII Band - 1 x Network (RJ-45) - Desktop, Wall Mountable
This product has been discontinued by the manufacturer
Please visit
CISCO Wireless Access Points/Bridgesfor alternative options.
Description
Dual-band cloud-managed wireless LAN
The Cisco Meraki MR18 is an industry-first three-radio, cloud managed 2x2 MIMO 802.11n access point designed for deployments in offices, schools, hospitals, hotels, and large retail stores. The MR18 features dual-concurrent, dual-band operation and advanced 802.11n technologies such as MIMO and beam forming, delivering the high throughput and reliable coverage required by demanding business applications like voice and video. Not only does the MR18 provide speeds of up to 600 Mbps with two concurrent 2x2:2 MIMO radios, but also delivers unprecedented security and spectrum visibility via a third radio dedicated to 24x7 WIDS/WIPS and advanced RF analytics.
The Cisco Meraki MR18 is an industry-first three-radio, cloud managed 2x2 MIMO 802.11n access point designed for deployments in offices, schools, hospitals, hotels, and large retail stores. The MR18 features dual-concurrent, dual-band operation and advanced 802.11n technologies such as MIMO and beam forming, delivering the high throughput and reliable coverage required by demanding business applications like voice and video. Not only does the MR18 provide speeds of up to 600 Mbps with two concurrent 2x2:2 MIMO radios, but also delivers unprecedented security and spectrum visibility via a third radio dedicated to 24x7 WIDS/WIPS and advanced RF analytics.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Meraki
Product Model:
MR18
Product Name:
MR18 Cloud Managed AP
Product Type:
Wireless Access Point
Technical Information
Wi-Fi Standard:
- IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.48 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.83 GHz
Antenna Gain:
- 3 dBi
- 5 dBi
Antenna Type:
- Omnidirectional Antenna
Wireless Transmission Speed:
600 MBps
Wireless Security:
- WEP
- WPA
- WPA2-PSK
- WPA2-Enterprise
- TKIP
- AES
Features:
- Quality of Service (QoS)
- MIMO Technology
Interfaces/Ports
Ethernet Port:
Yes
Fast Ethernet Port:
Yes
Gigabit Ethernet Port:
Yes
10Gigabit Ethernet Port:
No
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE Port:
No
VGA:
No
HDMI:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
No
Management & Protocols
Management:
- Web based management
Power Description
Input Voltage:
- 12 V DC
Power Source:
- AC Adapter
- PoE
Physical Characteristics
Form Factor:
- Desktop
- Wall Mountable
Height:
29.7 mm
Width:
134.4 mm
Depth:
184.2 mm
Weight (Approximate):
728.6 g
Warranty
Standard Warranty:
