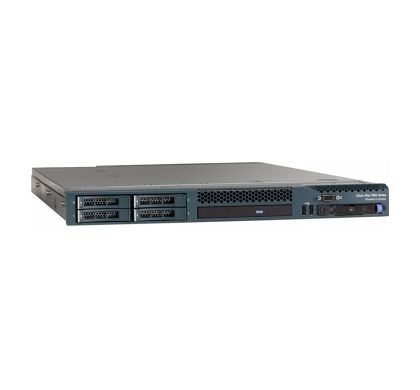

CISCO Flex CT7510 Wireless LAN Controller

CISCO Flex CT7510 Wireless LAN Controller AIR-CT7510-300-K9
AIR-CT7510-300-K9

This product has been discontinued by the manufacturer

Please visit

CISCO Wireless Access Points/Bridges

for alternative options.

Description

The Cisco Flex 7500 Series Cloud Controller is a highly scalable branch controller for multisite wireless deployments. Deployed in the private cloud the Cisco Flex 7500 Series Controller extends wireless services to distributed branch offices with centralized control that lowers total cost of operations.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
Flex
Product Series:
7500
Product Model:
CT7510
Product Name:
Flex CT7510 Wireless LAN Controller
Product Type:
Wireless LAN Controller

Technical Information

ISM Band:
No
UNII Band:
No
Wireless Security:
  • TACACS
  • IEEE 802.1x
  • IEEE 802.11i
  • MD5
  • AES
  • IPSec
  • SSH
  • SSL
  • DES
  • 3DES
  • EAP-TLS
  • CCMP
  • RC4 128-bit
  • RSA 1024/2048-bit

Interfaces/Ports

Ethernet Port:
Yes
Fast Ethernet Port:
Yes
Gigabit Ethernet Port:
Yes
10Gigabit Ethernet Port:
Yes
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE Port:
No
VGA:
Yes
Serial Port:
No
USB:
Yes
Powerline:
No
Management Port:
Yes

I/O Expansions

Expansion Slots:
  • 2 x SFP+

Management & Protocols

Management:
  • Web Based Management (HTTP/HTTPS)
  • Telnet
  • CLI
  • IEEE 802.1Q VLAN
  • SNMP v1/v2c/v3
  • MIB/II
  • Syslog
  • Cisco Wireless Control System (WCS)

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC
Power Source:
  • Power Supply

Physical Characteristics

Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
43.0 mm
Width:
439.0 mm
Depth:
711.0 mm
Weight (Approximate):
15.92 kg

Miscellaneous

Package Contents:
  • Flex CT7510 Wireless LAN Controller
  • 1 x Rack Mount Kit
  • 2 x Power Cords
  • 1 x Console Cable for 10 Gb SFP+ Card
    • Certifications & Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.11i
  • IEEE 802.1x
  • IEEE 802.1Q
  • CE
  • UL 60950-1:2003
  • EN 60950:2000
  • FCC Part 15.107 and 15.109
  • ICES-003
  • VCCI
  • EN 55022
  • EN 55024

    • Warranty

    Standard Warranty:
    90 Day
