CISCO AIR-LAP1141N-A-K9

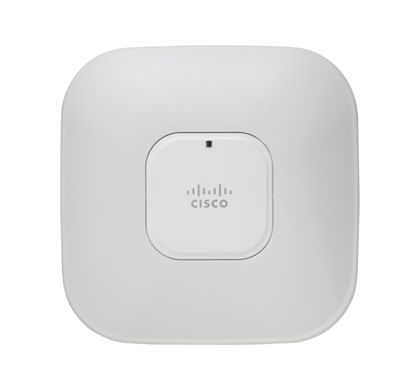

CISCO AIR-LAP1141N-A-K9 Front
AIR-LAP1141N-A-K9

This product has been discontinued by the manufacturer

Please visit

CISCO Wireless Access Points/Bridges

for alternative options.

Description

The Cisc™ Aironet® 1140 Series Access Point is a business-ready, indoor access point designed for simple deployment and energy efficiency. The 1140 Series is a dual-band, 802.11n access point with integrated antennas. It may also be ordered with a single-band 802.11g/n (2.4-GHz) radio for use in regulatory domains that do not allow 802.11a (5-GHz) operation.

The Cisco Aironet 1140 Series ships with the following:
- Access point
- Cisco Lightweight Access Point Protocol (LWAPP)1 software
- Mounting plate, security hasp, pair of ceiling-tile clips, and hardware accessory package
- Documentation CD
The Cisco Aironet 1140 Series is available in several stock keeping units (SKUs), each of which identifies a particular regulatory domain (Tables 1 and 2). Each version provides a unique combination of channel and power settings that are compliant with local government regulations.

Specifications

General Information

Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
Aironet
Product Series:
1140
Product Name:
Aironet 1141N Wireless Lightweight Access Point
Product Type:
Wireless Access Point

Technical Information

Wi-Fi Standard:
  • IEEE 802.11n
ISM Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.46 GHz
Antenna Gain:
  • 4 dBi
Wireless Transmission Speed:
300 MBps
Wireless Security:
  • WPA
  • WPA2
  • EAP-TLS
  • EAP-TTLS
  • EAP-MSCHAPv2
  • EAP-FAST
  • EAP-SIM
  • EAP-GTC
  • PEAP
  • TKIP

    • Interfaces/Ports

    Number of Network (RJ-45) Ports:
    1
    PoE Port:
    Yes
    Management Port:
    Yes

    Power Description

    Power Source:
    • Power Supply

    Physical Characteristics

    Form Factor:
    • Ceiling-mountable
    • Wall Mountable
    Height:
    46.7 mm
    Depth:
    221.0 mm
    Weight (Approximate):
    1.04 kg

    Miscellaneous

    Additional Information:
  • Wi-Fi Multimedia (WMM)
  • Cisco Unified Wireless Network Software Release 5.2 or later

    • Warranty

    Standard Warranty:
    90 Day
